DAYTON

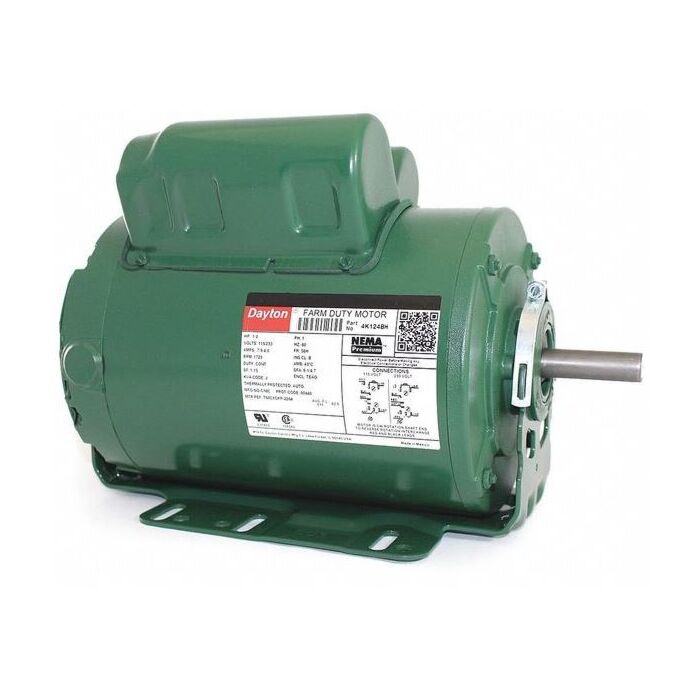

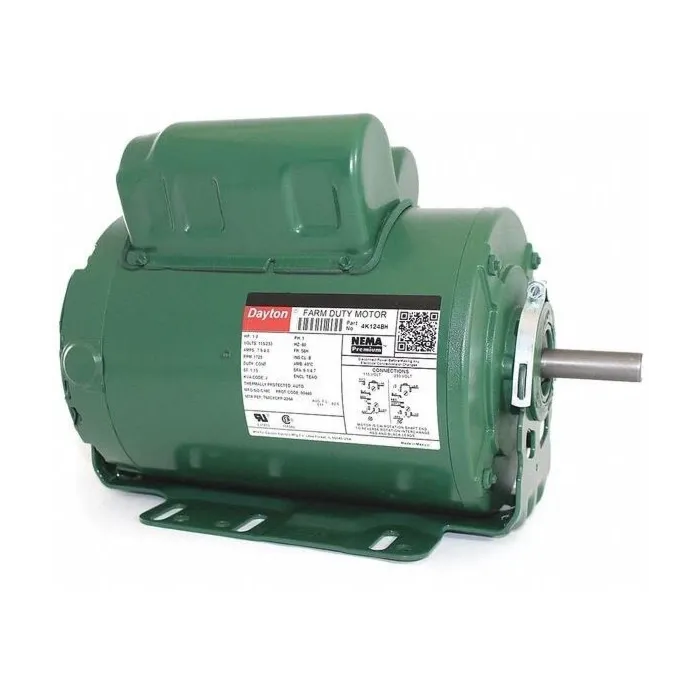

Motor 1HP 1725rpm TEAO 56H 115/220V
SKU: 4K124
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$549.99
Features
Specifications
This 1 HP, single-phase capacitor-start/run agricultural fan motor operates at 1,725 RPM on dual-voltage 115/230V AC (7.9/4.0 Amps, 60 Hz). Built with a durable rolled steel 56H frame for continuous duty, it features a totally enclosed air-over (TEAO) design, a 1.15 service factor, auto thermal protection, Class B insulation, and reversible (CW/CCW) rotation. It is designed for horizontal mounting using a cradle base. Includes gasketed terminal access cover and capacitor cover, shaft key and shaft slinger.
| Brand | DAYTON |
|---|---|
| Store Location (Lititz, PA) | Aisle 04, Section A2 |
| Package Length (in) | 10.00" |
| Package Width (in) | 6.20" |
| Package Height (in) | 8.60" |
| Voltage Rating | 115/230 V |
| Current Rating | 7.9/4 A |
| HP Rating | 1 hp |
| Speed | 1725 rpm |
| Frequency Rating | 60 Hz |
| Phase | 1 ph |
| Motor Enclosure Type | Totally Enclosed Air-Over |
| Frame Size | 56H |
| Shaft Size | 5/8" x 1-7/8" |
| Rotation Type | CW/CCW |
| Number of Speeds | 1 |
| Duty Cycle | Continuous |
| Mounting Type | Cradle Base |
| Material | Roller Steel |
| Temperature Rating | 40 deg C |
