DAYTON

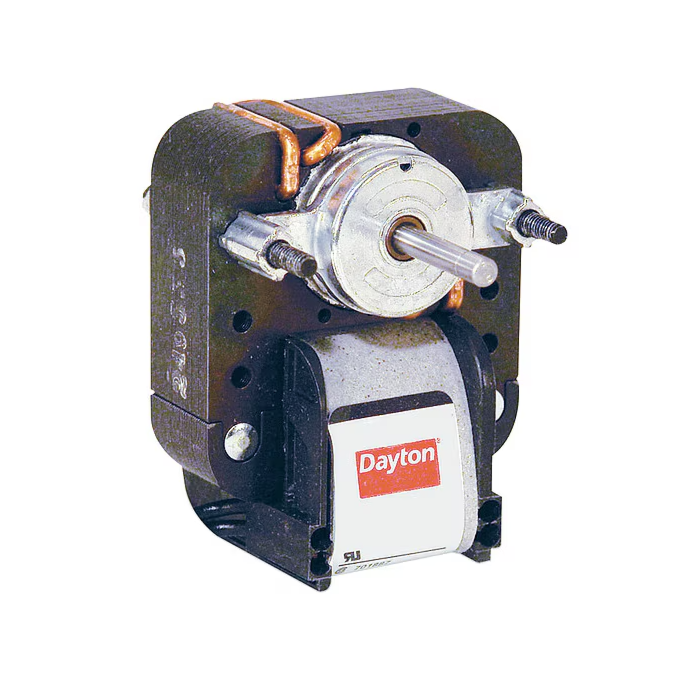

120V Shaft-End Auto C-Frame Motor
SKU: 4M073
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$39.99
Features
Specifications
This 1/70 HP C-frame shaded pole motor operates on a 115V AC, 60 Hz single-phase power supply, drawing a full load current of 0.69 A. It delivers a single-speed output of 13W at 3,000 RPM. Designed for continuous duty, it features an open air-over enclosure, stud mounting, clockwise shaft end (CWSE) rotation, a Class B insulation rating, and a service factor of 1. It operates safely up to a maximum ambient temperature of 40°C and includes one-shot thermal protection, though it is not compatible with 200V or 208V systems.
| Brand | DAYTON |
|---|---|
| Package Length (in) | 2.20" |
| Package Width (in) | 1.40" |
| Package Height (in) | 2.20" |
| Voltage | 115V AC |
| Shaft Diameter | 3/16" |
| HP | 1/70 |
| Speed Rating | 3000 rpm |
| Number of Speeds | 1 |
| Motor Sub Application | Direct Drive Fan/Blower |
| RPM Range | 1,801-3,000 |
| Motor Shaft Rotation | CWSE |
| Phase | Single |
| Motor Mounting Type | Ring/Stud |
| Voltage Compatibility | 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120VAC |
| Motor Thermal Protection | One-Shot |
| Ins. Class | B |
| Full Load Amps | 1.2 A |
| Motor Application | HVAC/R |
| Stud Quantity | 2 |
| O.C. Mounting | 1-7/8" |
| Motor Design | Shaded Pole |
| Motor Bearings | Sleeve |
| Motor Enclosure Design | Open Air-Over |
| Standards | UL (E37403) |
| Mounting Stud Location | 2/Shaft End |
| Motor Service Factor | 1 |
| Mounting Holes | (2) #8-32 |
| Frame | Non-Standard |
| Usable @ 200V | Not Usable at 200V |
| Motor Mounting Position | All Angle |
| Usable @ 208V | Not Usable at 208V |
| Number of Shafts | 1 |
| Capacitor Required | Capacitor Not Required |
| Mounting | Stud |
| Frequency | 60 Hz |
| Weight | 0.8 lb |
| Duty | Continuous |
| Shaft Design | Flat |
| Flange Type | Ventilated |
| Wattage | 13W |
| Mounting Position | Horizontal |
| Product Type | C-Frame Motor |
| Application | Fan/Blower |
| Nominal Efficiency | 28 % |
| Efficiency Rating | Standard Efficiency (IE1) |
| Number of Blower Stages | 1 |
| Drive Type | Direct Drive |
| Run Time - Maximum | 24 hr |
| Nameplate Service Factor @ 60 Hz | 1 |
| Bearing Protection Type | No Protection |
| Duty Rating | Residential |
| Bearing Type | Sleeve |
