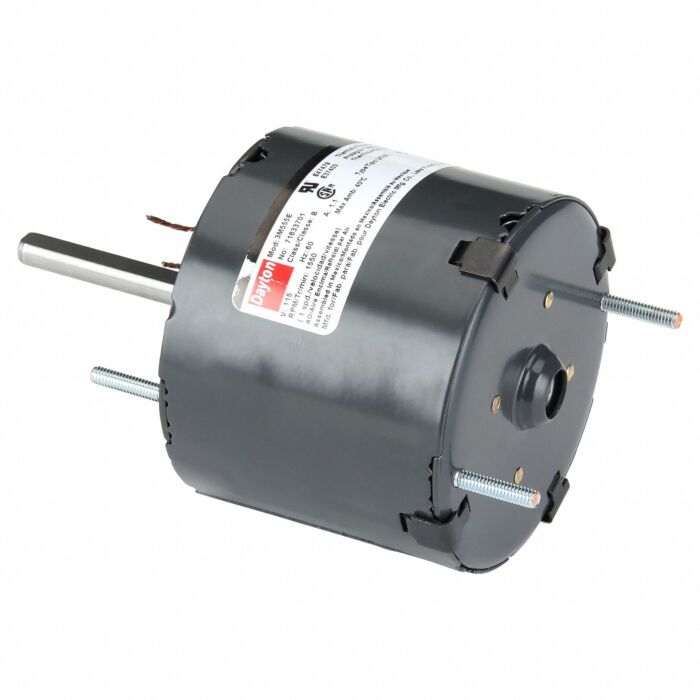

1/40 hp 115 VAC 1 A HVAC Motor
SKU: 3M555
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$67.99
Features
Specifications
Shaded pole 3.3-inch diameter HVAC AC motors have a low starting torque that provides a smooth and quiet start up while being more economical than other types of replacement motors used in blower applications such as bathroom fans and range hoods.
| Store Location (Lititz, PA) | Aisle 04, Section D2 |
|---|---|
| Package Length (in) | 2.40" |
| Package Width (in) | 2.20" |
| Package Height (in) | 3.20" |
| HP Rating | 1/40 hp |
| Voltage Rating | 115 VAC |
| Current Rating | 1 A |
| Frequency Rating | 60 Hz |
| Phase | 1 ph |
| Speed | 1550 rpm |
| Number of Speeds | 1 |
| Enclosure Type | Totally Enclosed Air-Over |
| Shaft Size | 5/16 in |
| Bearing Type | Sleeve |
| Mounting Type | Stud |
| Temperature Rating | 40 deg C |
| Application | HVAC Equipment, Bathroom Fan and Range Hoods |
