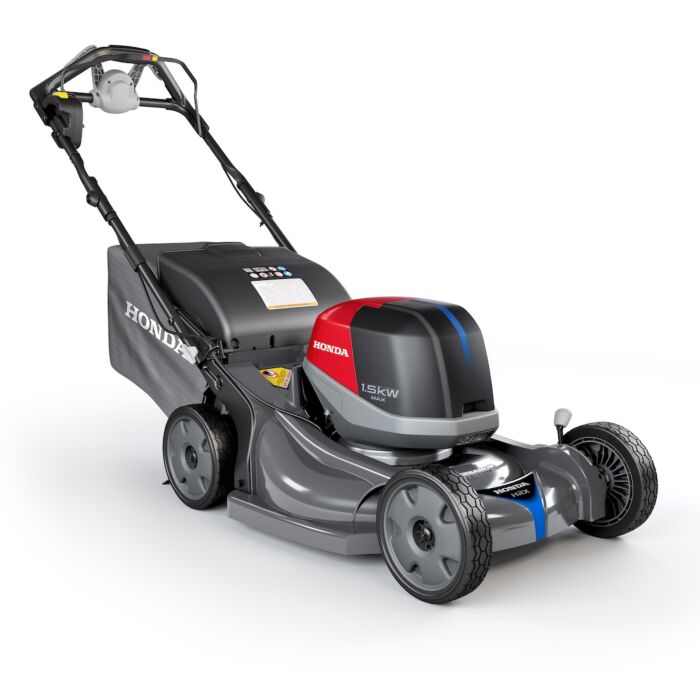

The Honda HRX-BV is a powerful, battery-powered mower designed to deliver the same performance as Honda's GCV series gas engines, complete with a forced air system for cooler, sustained operation in tough conditions. Its high-torque motor maintains RPMs to ensure a clean, superior cut through thick grass while efficiently managing power. The mower comes standard with an 8 AH lithium-ion battery (with optional 12 AH batteries available for extended run time) and a durable, patent-pending connection for maximum reliability. Maneuvering is made easy with the intuitive Select Drive® variable speed control (0–4 mph). The mower features the revolutionary 4-in-1 Versamow System™ with Clip Director® for easy switching between mulching, bagging, discharging, and leaf shredding without tools. It is built with a rust-free, no-dent 21" NeXite® mowing deck and uses Honda MicroCut® Twin Blades for ultra-fine clippings and superior bag fill.
- Intuitive, comfortable variable speed control (0–4 mph)
- Provides approximately 30 minutes of run time
- 4-in-1 Versamow System lets you mulch, bag, discharge, and leaf shred without attachments
- Exclusive twin blade system for superior mulching and bagging
- Rust-free, no-dent NeXite® deck is designed for superior airflow
- 7-position cutting heights ranging from 0.75" to 4"
- 3-position quick release handle
- LED headlight supports early morning or late afternoon mowing
| Brand | Honda |
|---|---|
| UPC | 786102010177 |
| Store Location (Lititz, PA) | Aisle 18, Section M7 |
| Manufacturer Part Number | 668950 |
| Motor Type | Brushless, Permanent Magnet |
| Rated Power | 1.5 kW |
| Comparable to | Honda GCV170 |
| Cutting Blade Speed | 2800 rpm |
| Blade Stop System | Transport with blade on |
| Cooling System | Forced Air |
| Max. Battery Capacity | 0.6kWH / 12Ah |
| Battery Connection | Spring loaded, locking, with Honda patented floating contacts |
| Run Time | Up to 30 min (with incl. battery; up to 45 min w optional 12Ah battery) |
| Standard Battery | 8Ah battery included |
| Standard Charger | 2A charger (charges in 4.5 hr.)** |
| Optional Quick Charger | 8A (charges in 1 hr) |
| Drive Control | Honda Select Drive |
| Drive System | Variable Speed |
| Ground speed | 0 to 4 mph |
| Drive Type | Rear Wheel |
| Wheel Size | 9" Plastic |
| Ball Bearing Wheels | All |
| Deck Material | NeXite® |
| Cutting Width | 21" |
| Height Adjustment | 2-lever |
| Mowing height adjustments | 7 |
| Mowing height range | 0.75 in. to 4 in. |
| Cutting Modes | 4 in 1 VersaMow System with Clip Director: Mulch, Bag, Rear Discharge, Leaf Shred |
| Blades | MicroCut® Twin blades |
| Handle | 1" Steel w UL Certified Power Isolation |
| Folds for easy storage | Yes |
| Handle Height Positions | 3 |
| Weight (without battery) | 38.4 kg / 84.7 lbs. |
| Bag capacity | 2.2 bushels |
