Multi Tool, Stripper, Crimper, Wire Cutter, 8-22 AWG
SKU: 74401
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$27.99
Features
Specifications
Downloads

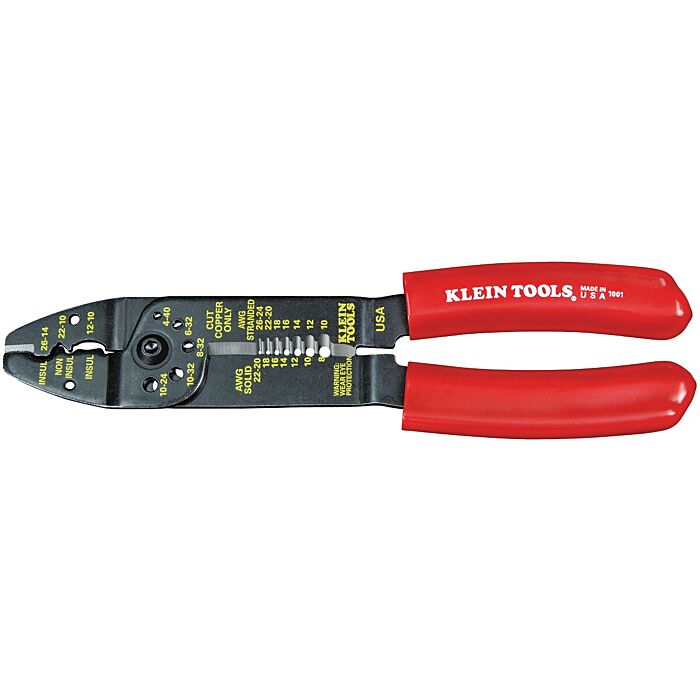

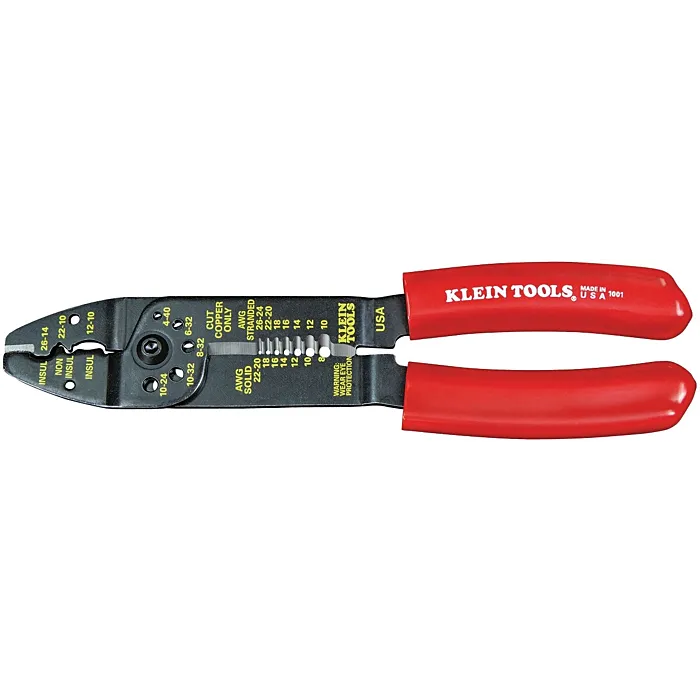

The Klein Tools Wire Stripper Multi-Tool cuts, crimps, and strips solid and stranded wire and shears bolts. Two cutting blades for 8-22 AWG solid and 10-26 AWG stranded wire. The crimping function handles 7-8 mm insulated and non-insulated terminals, lugs, and splices.
- Always wear approved eye protection.
- NOT insulated. Plastic-dipped or slip-on plastic handles are NOT intended for protection against electrical shock.
- Never use on or near live electrical circuits.
- Wire Strippers with 2 wire cutters; one at tip, the other halfway back near stripping holes double the utility of this tool
- Multi Tool crimps 7 - 8mm insulated and non-insulated terminals, lugs and splices
- Cleanly shears 4-40, 10-24, 10-32, 8-32 and 6-32 bolts; cuts and strips 8-22 AWG solid and 10-26 AWG stranded wire
- Pivot nut adjusts tension
- Made in USA
- Full-sized, plastic-covered cushioned handles
- Overall length: 8.5-Inch
- Crimping dies color-coded for easy identification
| Brand | Klein Tools |
|---|---|
| UPC | 092644744013 |
| Store Location (Lititz, PA) | Aisle 08, Section C3 |
| Package Length (in) | 11.40" |
| Package Width (in) | 3.40" |
| Package Height (in) | 0.60" |
| Manufacturer Part Number | 1001 |
| Handle Color | Red |
| Crimping Capacity | 10-22 AWG |
| Application | Cuts and Strips 8-22 AWG Solid and 10-26 AWG Stranded Wire; Shears Bolts; Crimps 7-8 mm Terminals, Lugs and Splices |
| Strips and Cuts | 8-22 AWG Solid; 10-26 AWG Stranded |
| Screw Shearing | 4-40, 6-32, 8-32, 10-24, 10-32 |
| Overall Length (Inch) | 8.5 |
| Overall Length (cm) | 21.6 |
| Weight (g) | 213 |
| Weight (oz) | 7.5 |
| Height | 0.6300 in |
| Width | 4.3500 in |
| Depth | 8.5000 in |
| Weight | 0.4700 lbs |
