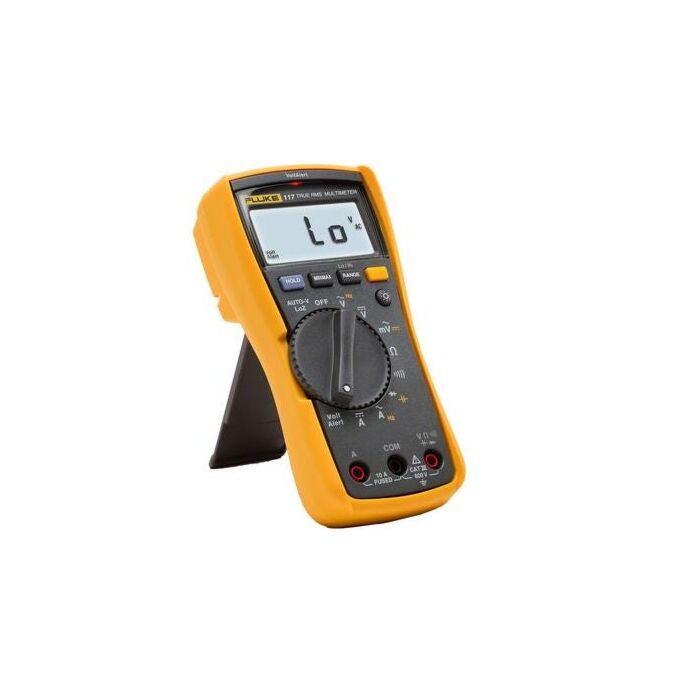

The Fluke 117 Electricians Multimeter is a compact, CAT III 600 V, True-rms meter that includes an easy-to-use interface with a bright backlight for darker worksites. It saves you time and enables you to move from job to job more quickly. With a quick turn of the dial you can get measurements for resistance, continuity, frequency, capacitance, min/max/average. A digital multimeter designed to be hauled everywhere with you, part of your everyday tools.
- Compact, true-rms digital multimeter for electricians
- Includes multimeter, 4mm silicone test leads, holster and manual
- Integrated non-contact voltage detection keeps you safe
- Prevent false readings from ghost voltage with selectable low-impedance mode
| Brand | Fluke |
|---|---|
| Date Added | Sep 22, 2026 |
| UPC | 095969324205 |
| Store Location (Lititz, PA) | Aisle 08, Section C5 |
| Package Length (in) | 1.82" |
| Package Width (in) | 3.31" |
| Package Height (in) | 6.57" |
| Maximum voltage between any terminal and earth ground | 600 V |
| Safety | IEC 61010-1: Pollution Degree 2, IEC 61010-2-033: CAT III 600V |
| Fuse for A input | 11 A, 1000 V FAST Fuse (Fluke PN 803293) |
| Display | Digital: 6,000 counts, updates 4 per second |
| Bar graph | 33 segments, updates 32 per second |
| Operating temperature | -10°C to +50°C |
| Storage temperature | -40°C to +60°C |
| Battery type | 9 volt Alkaline, IEC 6LR61 |
| Battery life | 400 hours typical, without backlight |
