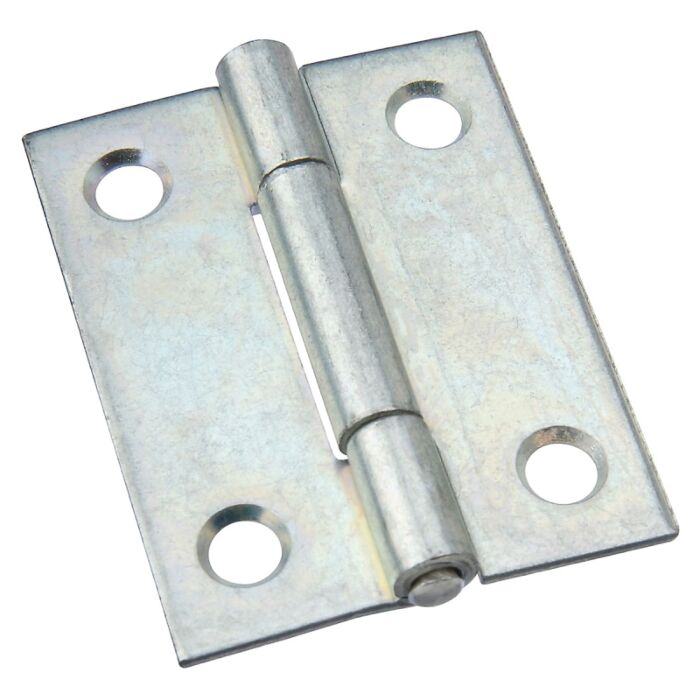

N146-142 Utility Hinge, 2 in W Frame Leaf, 0.056 in Thick Frame Leaf, Steel, Zinc, Mortise Mounting
SKU: N146142
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$4.49
- Buy 20 for $4.04 each and save 10%
Features
Specifications
518. Swaged for mortise installations. Manufactured from cold-rolled steel, with non-removable steel pin. Tight pin to allow for left or right hand applications. Boxed loose.
- Swaged for mortise installations
| Brand | National Hardware |
|---|---|
| UPC | 038613146143 |
| Package Length (in) | 0.20" |
| Package Width (in) | 1.20" |
| Package Height (in) | 1.20" |
| Manufacturer Part Number | N146-142 |
| Dimensions | 1.564 in L x 2 in W |
| Door Leaf Thickness | 0.056 in |
| Door Leaf Width | 2 in |
| Finish | Zinc |
| Frame Leaf Thickness | 0.056 in |
| Frame Leaf Width | 2 in |
| Hole Spacing | 1.437 in |
| Material | Steel |
| Mounting Hole Diameter | 0.218 in |
| Mounting Type | Mortise |
| Number of Knuckles | 3 |
| Number of Mounting Holes | 4 |
| Orientation Type | Left Right |
| Pin Diameter | 0.128 in |
| Pin Type | Tight Non-Removable |
| Weight Capacity | 10 lb |
