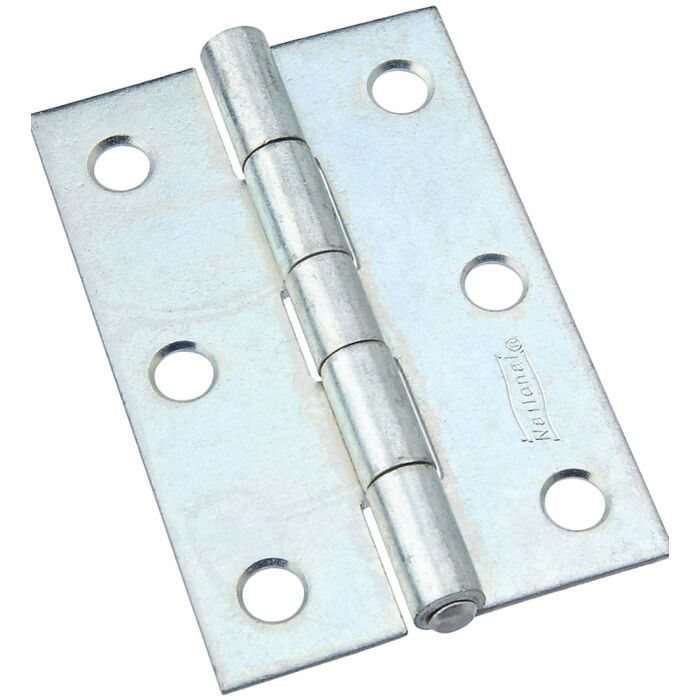

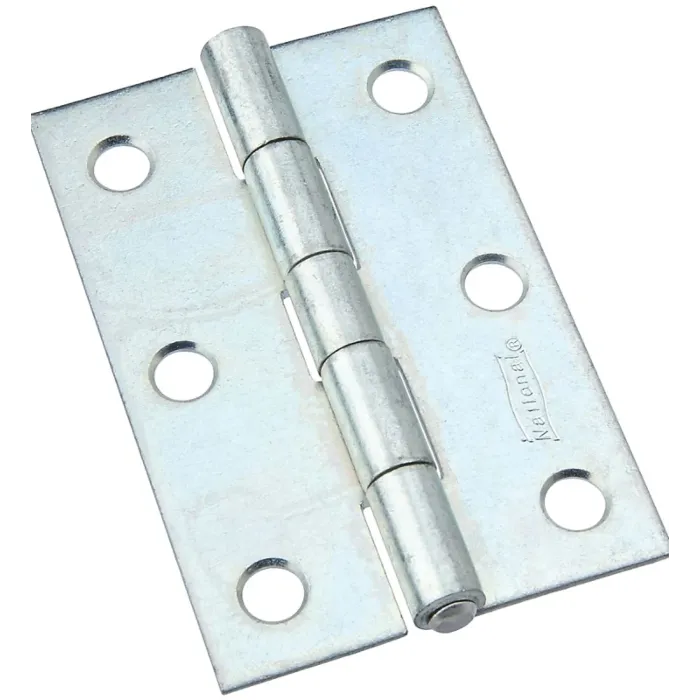

N146-365 Utility Hinge, 3 in W Frame Leaf, 0.065 in Thick Frame Leaf, Aluminum/Cold Rolled Steel, Zinc
SKU: N146365
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$3.99
Features
Specifications
518. Swaged for mortise installations. Manufactured from cold-rolled steel, with non-removable steel pin. Tight pin to allow for left or right hand applications. Boxed loose.
- Swaged for mortise installations
| Brand | National Hardware |
|---|---|
| UPC | 038613146365 |
| Store Location (Lititz, PA) | Aisle 19, Section I3 |
| Package Length (in) | 0.20" |
| Package Width (in) | 1.80" |
| Package Height (in) | 1.80" |
| Manufacturer Part Number | N146-365 |
| Dimensions | 2 in L x 3 in W |
| Door Leaf Thickness | 0.065 in |
| Door Leaf Width | 3 in |
| Finish | Zinc |
| Frame Leaf Thickness | 0.065 in |
| Frame Leaf Width | 3 in |
| Hole Spacing | 1.188 in |
| Material | Aluminum/Cold Rolled Steel |
| Mounting Hole Diameter | 0.23 in |
| Mounting Type | Mortise |
| Number of Knuckles | 5 |
| Number of Mounting Holes | 6 |
| Orientation Type | Left Right |
| Pin Diameter | 0.106 in |
| Pin Type | Tight Non-Removable |
| Weight Capacity | 28 lb |
