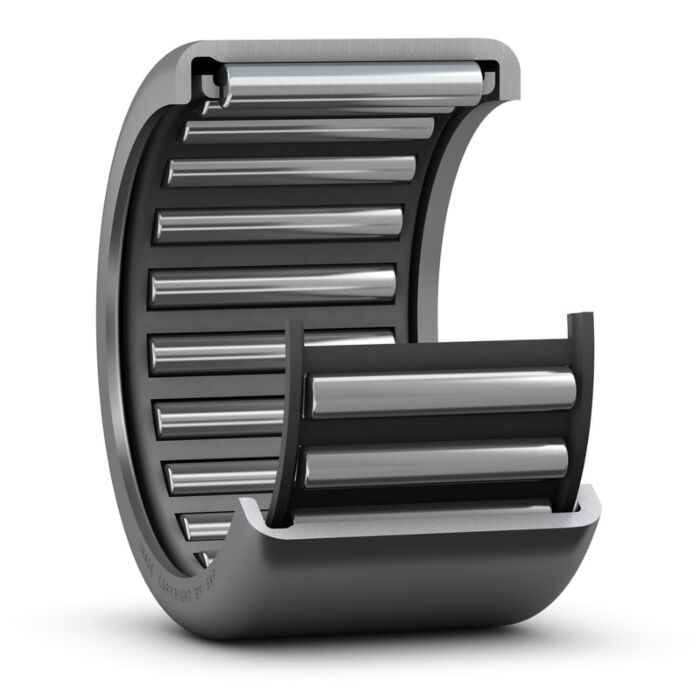

Drawn cup needle roller bearings are typically used in applications where the housing bore cannot be used as a raceway for a needle roller and cage assembly, but where a very compact and economical bearing arrangement is required. Owing to their large number of rollers, the bearings have a high load carrying capacity and stiffness.
- High radial load carrying capacity
- High stiffness
- Very low cross-sectional height
| Brand | SKF |
|---|---|
| Store Location (Lititz, PA) | Aisle 09, Section X5 |
| Package Length (in) | 2.20" |
| Package Width (in) | 2.00" |
| Package Height (in) | 1.20" |
| Manufacturer Part Number | INA HK3516-HLA |
| Bore Diameter | 35 mm |
| Outside Diameter | 42 mm |
| Number of Rows | 1 |
| Width | 16 mm |
| Load Capacity | 17.9 kN Dynamic, 34 kN Static |
| Cage Material | Sheet metal |
