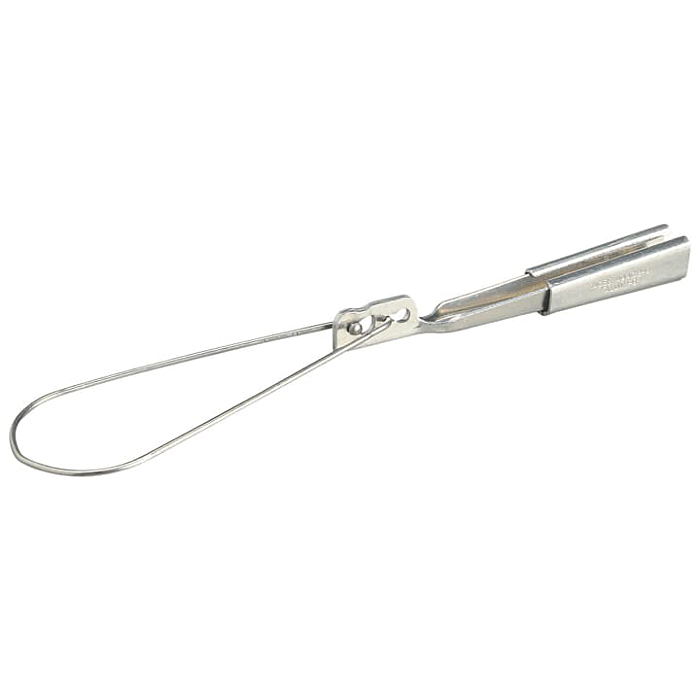

No2-No6 SERVICE WEDGE CLAMP,EA
SKU: EW62AA
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$11.99
Features
Specifications
Service entrance wedge clamps, aluminum wedge and slider, conductor range-ACSR #2 - #6 aluminum # 1 stranded - #6 solid AAAC #2 - #6.
| Brand | Thomas & Betts |
|---|---|
| UPC | 051411510619 |
| Store Location (Lititz, PA) | Aisle 08, Section D1 |
| Package Length (in) | 0.20" |
| Package Width (in) | 2.80" |
| Package Height (in) | 2.80" |
| Manufacturer Part Number | W621-1 |
| Application | Dead-End Self-supporting Drop Wire |
| Brand / Label | Blackburn |
| Connection Type | Tension |
| Effective Date | 19990802 |
| Insulation Material | None |
| Material | Aluminum |
| Mounting Type | Yes |
| Number of Conductors | 1 |
| Product Name | ALUM WEDGE CLAMP |
| Product Type | Aluminum Service Wedge Clamp |
| Size | Length 12-1/2 in X Depth 2-3/8 in |
| Special Functions | Drop wire may be cut to exact length for adjustments in drop wire sag. Can be attached to bare neutral at any point in the span. Flexible and rigid bails grip ACSR, AAC and AAAC Conductors. |
| Surface Finishing | Bare |
| Voltage Rating | 35 kV |
| WEEE Category | Product Not in WEEE Scope |
| IDEA Granular Category Code (IGCC) | 4601 >> Cable gland connector |
| Country of Origin | Mexico (MX) |
| Selling Unit of Measure | each |
