WATTS

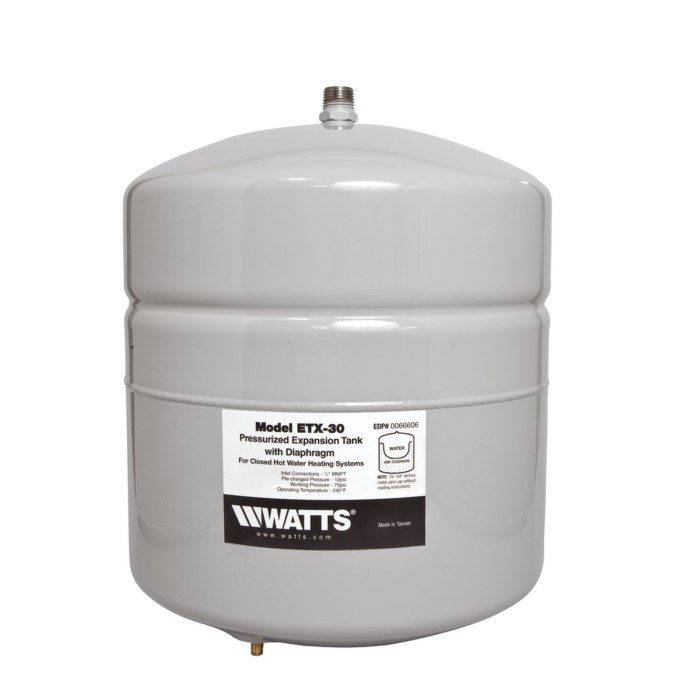

Non-Potable Water Expansion Tank, Tank Volume 4.5 Gallons, Mounts To Supply Piping, 1/2 In Mnpt Connection
SKU: ETX30 | Location: Aisle 04, Section D3
$74.99
PICKUP
Your store: PaulB Lititz, PA |
DELIVERY
Ship to your home or business
3 In stock
Features
Specifications
Downloads
This 4.5 gallon non-potable water expansion tank is for use in commercial and residential closed loop hydronic heating system piping to control the thermal expansion of hot water and maintain system pressure below the relief setting of the relief valve. The pre-pressurized steel tank features a durable expansion membrane that prevents contact of the water with the air in the tank. This rugged diaphragm minimizes loss of the air change and ensures long and trouble-free life for the system. Maximum pressure is 75 psi (5.3 bar).
- Designed to control hot water in closed loop heating systems
- Easy to use
- Durable
- NPT male connection
Brand | WATTS |
---|---|
UPC | 098268678604 |
Store Location (Lititz, PA) | Aisle 04, Section D3 |
Package Length (in) | 11.00" |
Package Width (in) | 11.00" |
Package Height (in) | 15.00" |
Manufacturer Part Number | EDP #0950161 |
Air Precharge | 12 PSI |
Air Valve | Yes |
Bladder Material | SBR |
Brand Name | Watts |
Color | Gray |
Diameter | 11 IN |
Electricity Required | No |
Fuel Gauge | No |
GDS Status | Registered |
Inlet Connection Size | 1/2 IN |
Inlet Connection Size-Metric | 15 MM |
Inlet Connection Type | Male Threaded |
Inlet Thread Type | NPT |
Maximum Operating Temperature-Fahrenheit | 210 |
Maximum Working Pressure-PSI | 60 |
Model Number | ET-30 |
Mount Type | Pipe |
Orientation | Vertical / Horizontal |
Part Number | 0950161 |
Series | ETX |
Stand Included | No |
Tank Acceptance | 3 Gallon |
Tank Height | 14 IN |
Tank Material | Steel |
Tank Volume | 4.7 Gallon |
