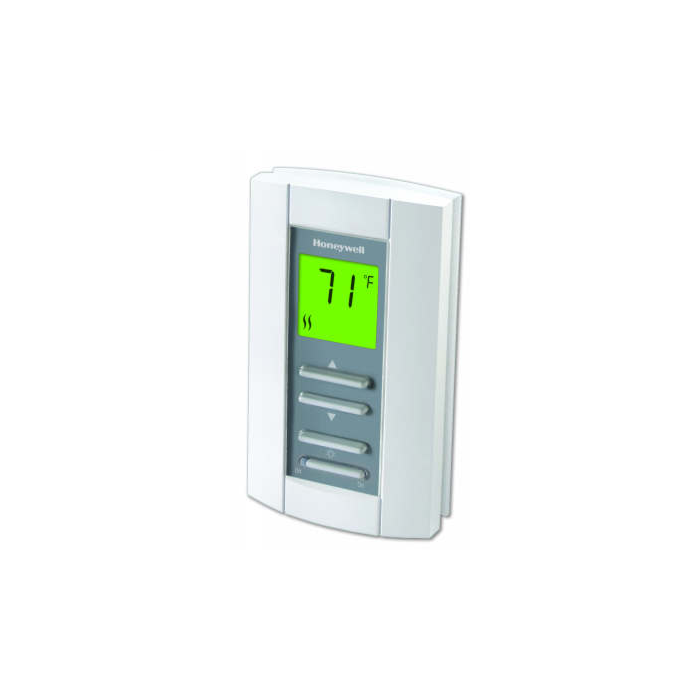

Non-Progr.Digital Thermostat, Doubl Pole
SKU: TL7235A1003
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$89.99
Features
Specifications
Downloads
LineVoltPRO™ digital thermostats provide electronic control of 208/240 Vac resistive rated electric baseboard heaters, radiant ceiling heat, convectors and fan forced heaters. If used as directed, they can save up to 10% on annual heating costs.
- Electronic temperature control - precision of ±1 F saves up to 10% on heating bills.
- Large, clear, backlit display - easy to read in various lighting conditions.
- Soundproofed for quiet operation - reduces the clicking noise commonly heard with conventional thermostats.
- On/Off switch allows you to turn the thermostat off at the end of the heating season.
- Heating indicator - at a glance confirmation that the heat is on.
- Maintenance free - no batteries required.
| Brand | Honeywell |
|---|---|
| UPC | 085267262583 |
| Store Location (Lititz, PA) | Aisle 04, Section D5 |
| Package Length (in) | 5.20" |
| Package Width (in) | 2.20" |
| Package Height (in) | 3.40" |
| Manufacturer Part Number | TL7235A1003/U |
| Application | Electric baseboards, convectors and fan forced heaters (resistive rated loads). |
| Dimensions (in.) | 4 7/8 in. high x 2 3/4 in. wide x 7/8 in. deep |
| Dimensions (mm) | 124 mm high x 70 mm wide x 23 mm deep |
| Item Type | Product |
| Mounting | Vertical |
| Electrical Ratings | 15 Amps Max; 3600 Watts at 240 VAC, 3120 Watts at 208 VAC |
| Frequency | 50 Hz; 60 Hz |
| Stages | 1 Heat |
| Approvals, Underwriters Laboratories Inc. | UL Listed 9R12, File Number: E183695 |
| Approvals, Canadian Standards Association | cCSAus, File Number: LR76030; Compliant to CAN/CSA-C828-06 |
| Electrical Connections | 5.5 in. (140mm) tinned copper lead wires |
| Supply Voltage | 208 Vac; 240 Vac |
| Operating Temperature Range (F) | 32 F to 122 F |
| Operating Temperature Range (C) | 0 C to 50 C |
| Sensor Element | Thermistor |
| Accuracy (F) | ±1 F |
| Accuracy (C) | ± 0.5 C |
| Color | Premier White® |
| Switching Action | DPST |
| Switch Type | Relay |
| Setting Temperature Range (F) | 40 F to 86 F |
| Setting Temperature Range (C) | 5 C to 30 C |
Installation Materials-Non-programmable Thermostat - (2)
Installation Materials-Non-programmable Thermostat - (1)
Installation Materials-Power Base, English, French, Spanish
Product Selections/Comparisons-Selection Guide US Electrical Distribution Channel
Operator/Owner Materials-LineVoltPRO™ 7000 Non-Programmable Electric Heat Thermostat
