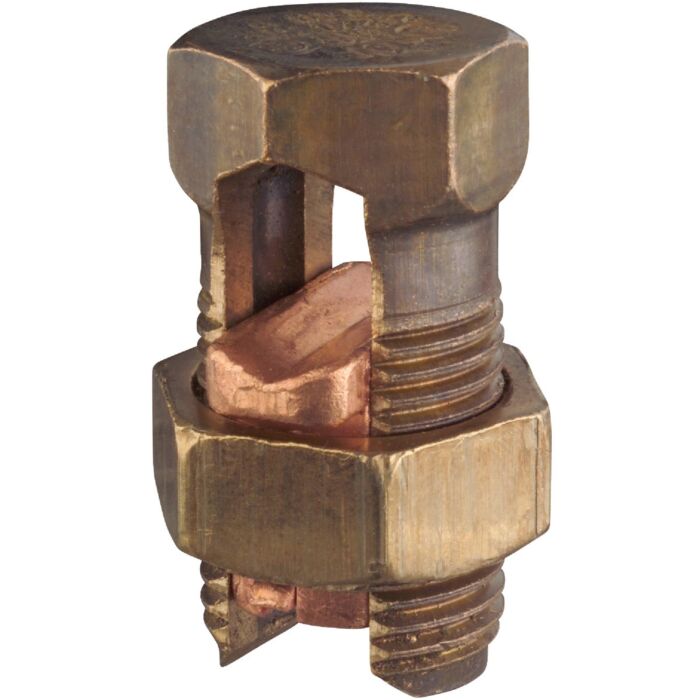

2/0 Str. to 2 Sol. Silicon Bronze Alloy High-Strength Split Bolt Connector
SKU: 524255
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$10.49
Features
Specifications
For copper-to-copper connections. Bolt and nut made of high-strength, corrosion-resistant silicon bronze alloy. For making pigtail, tap or straight splice with larger conductors, solid or stranded. Split bolts slip over continuous wire. The end of the other wire is then placed over the continuous wire inside the unit and the nut is tightened. Connections must be completely insulated. UL (Underwriter's Laboratories) listed.
| Brand | Blackburn |
|---|---|
| UPC | 783786371914 |
| Store Location (Lititz, PA) | Aisle 08, Section D4 |
| Package Length (in) | 0.60" |
| Package Width (in) | 1.20" |
| Package Height (in) | 1.20" |
| Gauge | 2/0 Str. to 2 Sol. |
| Material | Silicon Bronze Alloy |
| Range for Equal Main and Tap | 2/0 Str. to 2 Sol. |
| Min Tap with one Max Main | 14 Sol. |
| Certification | UL Listed |
