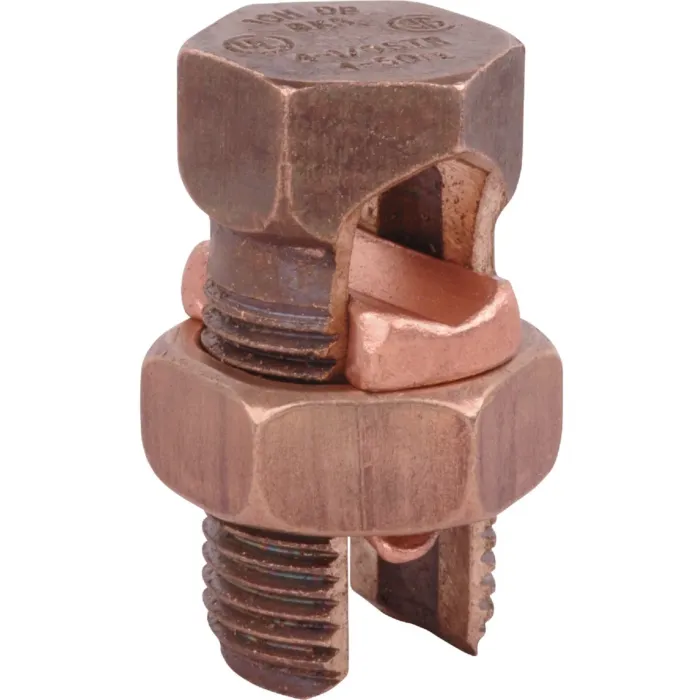

#8 SOL/STR to #4 STR Copper Alloy Split Bolt Connector
SKU: 510628
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$6.49
Features
Specifications
Split Bolts are conveniently used for applications such as splicing, tapping, and terminating conductors in grounding applications. Each order includes one Split Bolt to meet your needs. They are rated for use with 600 Voltages and temperatures as high as 90 Celsius. Use Oxide-inhibitor compound when connecting Aluminum to ACSR or Aluminum to Copper wires.
| Brand | Southwire |
|---|---|
| UPC | 075114241946 |
| Store Location (Lititz, PA) | Aisle 08, Section D3 |
| Package Length (in) | 1.25" |
| Package Width (in) | 0.75" |
| Package Height (in) | 0.75" |
| Gauge | 4 Sol. to 8 Sol. |
| Material | Silicon Bronze Alloy |
| Range for Equal Main and Tap | 4 Sol. to 8 Sol. |
| Min Tap with one Max Main | 14 Sol. |
| Certification | UL Listed |
