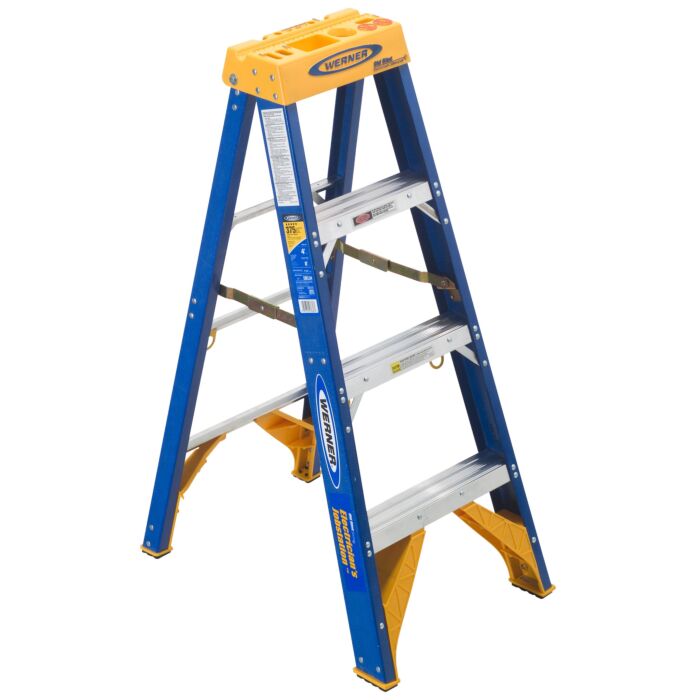

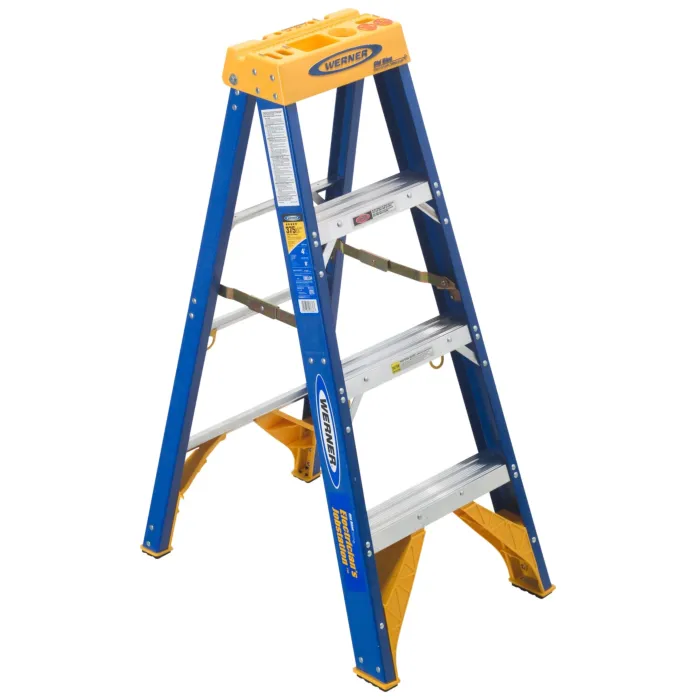

The Old Blue® Series OBEL04 Fiberglass Electrician Ladder is not your ordinary Step Ladder -- it's a Jobstation™. With a duty rating of 375 pounds, this 4 ft ladder is custom-made with electricians in mind. The HolsterTop with Lock-In System allows tools to be secured right to the ladder top making them handy and ready to use. The MagnaGrip™ heavy duty magnet secures tools and hardware right to the ladder top. The Multi-Use hook is ideal for hanging tools and tool buckets. The EDGE® bracing system helps to decrease damage to the rails. Fiberglass rails are non-conductive for working near electricity. ® The blue and yellow ladder is an exclusive registered trademark of Werner Co.
- ® The blue and yellow ladder is an exclusive registered trademark of Werner Co
- Every rivet backed up by metal plate or washer to protect rails
- Shoe pads riveted to the EDGE® structure
- Heavy duty internal spreaders
- Customized HolsterTop with Lock-In System secures tools from falling. 3 ToolLasso® included.
- Full set of rear horizontals spaced one per foot
- EDGE® bracing system helps to decrease damage to rail
- *Energy Diffusing Geometry
- Built-in wire spool holders for both large and small spools
- Slip-resistant TRACTION-TRED® steps are double riveted and knee-braced
- Convenient conduit cutting system
- HolsterTop customized for contractors
- OBEL08
- OBEL10
- OBEL06
- OBEL12
- OBEL04
- AC50-JB-3 Lock-In Job Bucket
- AC56-UH Lock-In Utility Hook
- AC54-JC Lock-In Job Caddy
- AC27-P Lock-In Paint Cup
- AC24 Multipurpose Project Tray
- AC52-UB Lock-In Utility Bucket
- AC58-TL Lock-In Tool Lasso
Brand | Werner |
---|---|
UPC | 051751076363 |
Store Location (Lititz, PA) | Aisle 33, Section A1 |
Manufacturer Part Number | OBEL04 |
Reach Height | 8 ft |
Style | Single-Sided |
Load Capacity | 375 lbs |
Performance Rating | 5 star |
Type | Type IAA Duty Rating |
Size | 4 ft |
Certifications | ANSI A14.5 (2007); OSHA |
Approx. Spread | 29 in |
Max. Standing Height | 1 ft 11 in |
Approx. Width | 19-7/8 in |
Approx. Cu. Ft. Per Unit | 3 |
Edge Bracing | Heavy |
With Pail Shelf | No |
Description of Top Features | Drill hole, conduit tray, 3 plier/hand tool slots, Lock-In accessory sockets, 2 tool holes, drill hole, measuring tape |
Spreader Material | Steel |
Approx. Shipping Wt. Lbs. | 16 |
Material | Fiberglass |
Top Dimension | 5-3/4 in x 13 in |
Rear Flange Dimension | 1-3/16 in |
Front Rails Dimension | 3-1/8 in |
Front Flange Dimension | 1-3/16 in |
Steps Dimension | 3 in |
Rear Rails Dimension | 1-7/8 in |
