Octogonal Boxes
SKU: E167
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$4.79
Features
Specifications
Downloads

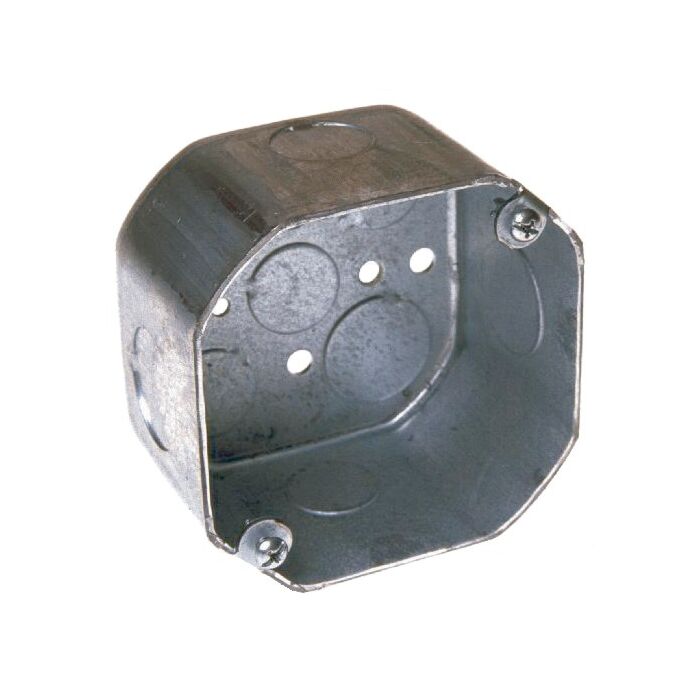

Octagon Box, 22.5 Cubic Inches, 4 Inch Diameter x 2-1/8 Inches Deep, 12/ Inch and 3/4 Inch Knockouts, Pre-Galvanized Steel, Drawn Construction, For use with Conduit
- Drawn steel construction
| Brand | Steel City |
|---|---|
| UPC | 785991172553 |
| Store Location (Lititz, PA) | Aisle 09, Section D6 |
| Package Length (in) | 3.20" |
| Package Width (in) | 2.60" |
| Package Height (in) | 2.20" |
| Manufacturer Part Number | 54171 1/2 3/4 |
| UNSPSC | 39121316 Ceiling box |
| IGCC | 4449 Box/housing for built-in mounting in the wall/ceiling |
| Brand Name | Steel City |
| Type | Octogonal Boxes |
| Application | For use with conduit |
| Standard | UL E2969 |
| Number Of Outlet | 1 |
| Material | Steel |
| Size | 4 Inches Diameter x 2-1/8 Inches depth |
| Color | Silver |
| Cubic Capacity | 22.5 Cubic Inches |
| Knockouts | Yes |
| Construction | Drawn |
| ETIM | EC002600 Box/housing for surface mounting on the wall/ceiling |
| Shape | Octagonal |
| Mounting method | Wall-/ceiling mounting |
| Depth | 53.975mm |
| Diameter | 101.6mm |
| Weatherproof | N |
| Outer Quantity | 25 |
| Outer Dimensions (inches) | 21x9x7.5 |
| Weight Uom | 50 lbs. per 100 |
