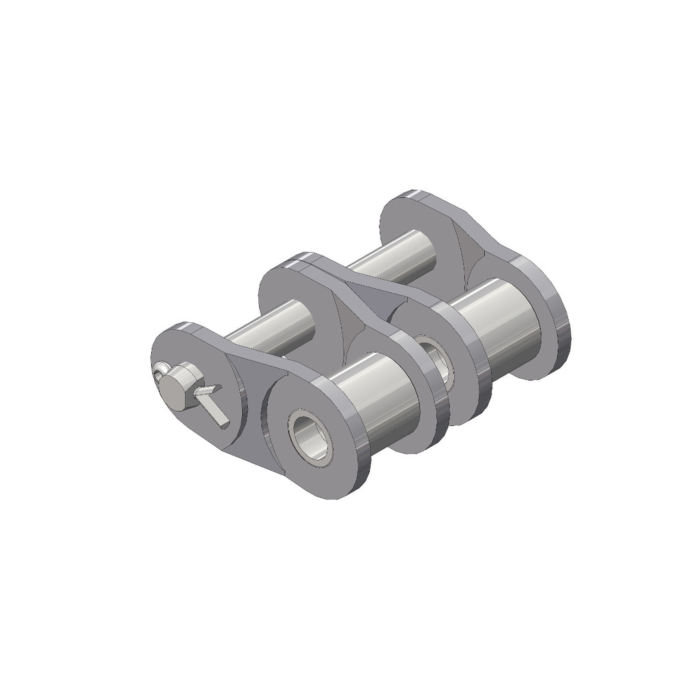

OFFSET LINK # 80-2R HKK

SENQCIA Inspire Series™ offset Links are manufactured in Japan in accordance with the ASME/ANSI B29.1 American roller chain standard. They offer exceptional performance and long life in a wide variety of applications. Offset links are supplied with “flatted” connecting pins and a split cotter for ease of assembly in the field. These special purpose links allow the user to make an endless strand of roller chain from an odd number of pitches. They are also used to reduce the length of a strand by one pitch when normal chain elongation has created excess catenary sag on a roller chain drive. Care however should be taken as the offset link has significantly less load carrying capacity than the base chain itself. Each offset link is individually packaged in a sealed plastic bag.

• HKK carbon steel roller offset link for use with single strand roller chains
• Cold-forged solid construction for increased corrosion resistance and smooth running with no initial stretch
• Link plates are double punched to provide true 90-degree holes for exact pin-plate, bushing-plate alignment
• Solid rollers, link plates and solid bushings are made of carbon steel and shot peened for added fatigue strength
• Meets ANSI B29.1 standard for quality assurance
