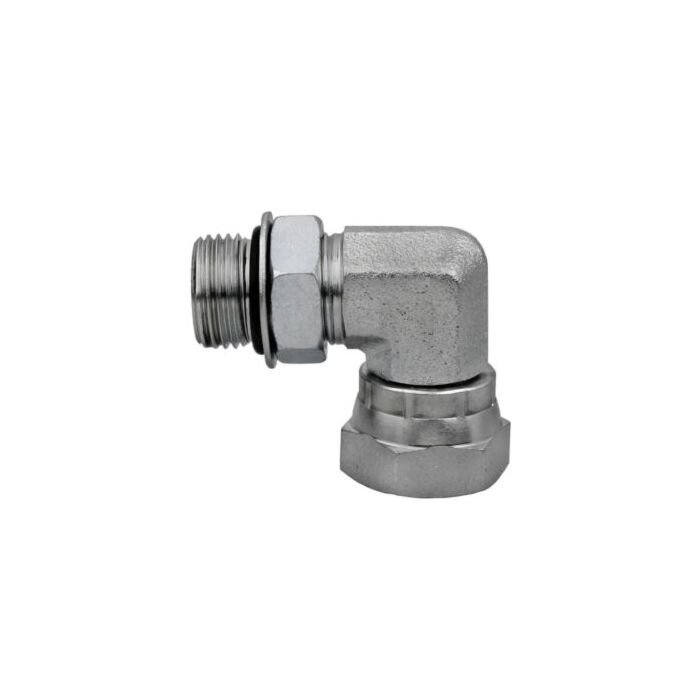

ORB to Pipe Swivel Elbow 90° MORB x FPT
ORB to Pipe Swivel Elbow 90° 1/2 MORB x 1/4 FPT
ORB to Pipe Swivel Elbow 90° 1/2 MORB x 3/8 FPT
ORB to Pipe Swivel Elbow 90° 1/2 MORB x 1/2 FPT
ORB to Pipe Swivel Elbow 90° 5/8 MORB x 3/8 FPT
ORB to Pipe Swivel Elbow 90° 1/4 MORB x 1/4 FPT
ORB to Pipe Swivel Elbow 90° 3/8 MORB x 3/8 FPT
ORB to Pipe Swivel Elbow 90° 5/8 MORB x 1/2 FPT
ORB to Pipe Swivel Elbow 90° 3/4 MORB x3 /4 FPT
ORB to Pipe Swivel Elbow 90° 3/8 MORB x 1/4 FPT
ORB to Pipe Swivel Elbow 90° 3/4 MORB x 1/2 FPT
ORB to Pipe Swivel Elbow 90° 1/4 MORB x3/8 FPT
ORB to Pipe Swivel Elbow 90° 3/8 MORB x 1/2 FPT
ORB to Pipe Swivel Elbow 90° 1 MORB x 1 FPT
ORB to Pipe Swivel Elbow 90° 1 MORB x 3/4 FPT
SKU: 6901-
SKU: 6901X0804
SKU: 6901X0806
SKU: 6901X0808
SKU: 6901X1006
SKU: 6901X0404
SKU: 6901X0606
SKU: 6901X1008
SKU: 6901X1212
SKU: 6901X0604
SKU: 6901X1208
SKU: 6901X0406
SKU: 6901X0608
SKU: 6901X1616
SKU: 6901X1612
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
As low as:
$3.02
As low as:
Features
Specifications
ORB to Pipe Swivel Elbow 90° 1/2 MORB x 1/4 FPT
- Black buna-n 90 durometer o-ring
- RoHS compliant CR6 free (clear zinc trivalent)plating
- PCC world-class quality process
ORB to Pipe Swivel Elbow 90° 1/2 MORB x 1/4 FPT
- Black buna-n 90 durometer o-ring
- RoHS compliant CR6 free (clear zinc trivalent)plating
- PCC world-class quality process
ORB to Pipe Swivel Elbow 90° 1/2 MORB x 3/8 FPT
- This product can expose you to chemicals, including cobalt, which are known to the state of California to cause cancer and birth defects or other reproductive harm. For more information visit www.P65Warnings.ca.gov
ORB to Pipe Swivel Elbow 90° 1/2 MORB x 1/2 FPT
- This product can expose you to chemicals, including cobalt, which are known to the state of California to cause cancer and birth defects or other reproductive harm. For more information visit www.P65Warnings.ca.gov
ORB to Pipe Swivel Elbow 90° 5/8 MORB x 3/8 FPT
- This product can expose you to chemicals, including cobalt, which are known to the state of California to cause cancer and birth defects or other reproductive harm. For more information visit www.P65Warnings.ca.gov
ORB to Pipe Swivel Elbow 90° 1/4 MORB x 1/4 FPT
- Black buna-n 90 durometer o-ring
- RoHS compliant CR6 free (clear zinc trivalent)plating
- PCC world-class quality process
ORB to Pipe Swivel Elbow 90° 3/8 MORB x 3/8 FPT
- Black buna-n 90 durometer o-ring
- RoHS compliant CR6 free (clear zinc trivalent)plating
- PCC world-class quality process
ORB to Pipe Swivel Elbow 90° 5/8 MORB x 1/2 FPT
- Black buna-n 90 durometer o-ring
- RoHS compliant CR6 free (clear zinc trivalent)plating
- PCC world-class quality process
ORB to Pipe Swivel Elbow 90° 3/4 MORB x3 /4 FPT
- Black buna-n 90 durometer o-ring
- RoHS compliant CR6 free (clear zinc trivalent)plating
- PCC world-class quality process
ORB to Pipe Swivel Elbow 90° 3/8 MORB x 1/4 FPT
- Black buna-n 90 durometer o-ring
- RoHS compliant CR6 free (clear zinc trivalent)plating
- PCC world-class quality process
ORB to Pipe Swivel Elbow 90° 3/4 MORB x 1/2 FPT
- Black buna-n 90 durometer o-ring
- RoHS compliant CR6 free (clear zinc trivalent)plating
- PCC world-class quality process
ORB to Pipe Swivel Elbow 90° 1/4 MORB x3/8 FPT
- Black buna-n 90 durometer o-ring
- RoHS compliant CR6 free (clear zinc trivalent)plating
- PCC world-class quality process
ORB to Pipe Swivel Elbow 90° 3/8 MORB x 1/2 FPT
- Black buna-n 90 durometer o-ring
- RoHS compliant CR6 free (clear zinc trivalent)plating
- PCC world-class quality process
ORB to Pipe Swivel Elbow 90° 1 MORB x 1 FPT
- Black buna-n 90 durometer o-ring
- RoHS compliant CR6 free (clear zinc trivalent)plating
- PCC world-class quality process
ORB to Pipe Swivel Elbow 90° 1 MORB x 3/4 FPT
- Black buna-n 90 durometer o-ring
- RoHS compliant CR6 free (clear zinc trivalent)plating
- PCC world-class quality process
| Store Location (Lititz, PA) | Aisle 06, Section X1 |
|---|---|
| Package Length (in) | 2.00" |
| Package Width (in) | 1.40" |
| Package Height (in) | 0.40" |
| Type | 90 deg |
| Tube OD | 1/2 in |
| Thread Size 1 | 3/4 in-16 MORB |
| Thread Size 2 | 1/4 in-18 FNPSM Swivel |
| Size | 1/4 in |
| Nut Hex Size 1 | 7/8 in |
| Nut Hex Size 2 | 11/16 in |
| Length 1 | 1.45 in |
| Length 2 | 1.16 in |
| Flats | 3/4 in |
| Pressure Rating | 5000 psi |
| Material | Carbon Steel |
| Store Location (Lititz, PA) | Aisle 06, Section X1 |
|---|---|
| Package Length (in) | 2.00" |
| Package Width (in) | 1.40" |
| Package Height (in) | 0.40" |
| Type | 90 deg |
| Tube OD | 1/2 in |
| Thread Size 1 | 3/4 in-16 MORB |
| Thread Size 2 | 1/4 in-18 FNPSM Swivel |
| Size | 1/4 in |
| Nut Hex Size 1 | 7/8 in |
| Nut Hex Size 2 | 11/16 in |
| Length 1 | 1.45 in |
| Length 2 | 1.16 in |
| Flats | 3/4 in |
| Pressure Rating | 5000 psi |
| Material | Carbon Steel |
| Store Location (Lititz, PA) | Aisle 06, Section X1 |
|---|---|
| Package Length (in) | 2.20" |
| Package Width (in) | 1.40" |
| Package Height (in) | 0.40" |
| Material | Steel |
| Female Npsm 2 | 3/8 |
| Shape | 90 degree elbow |
| Oring Thread 1 | 3/4-16 |
| Weight | 0.27 lbs |
| Store Location (Lititz, PA) | Aisle 06, Section X1 |
|---|---|
| Package Length (in) | 2.20" |
| Package Width (in) | 1.60" |
| Package Height (in) | 0.40" |
| Material | Steel |
| Female Npsm 2 | 1/2 |
| Shape | 90 degree elbow |
| Oring Thread 1 | 3/4-16 |
| Weight | 0.3 lbs |
| Store Location (Lititz, PA) | Aisle 06, Section X1 |
|---|---|
| Package Length (in) | 2.20" |
| Package Width (in) | 1.80" |
| Package Height (in) | 0.60" |
| Material | Steel |
| Female Npsm 2 | 3/8 |
| Shape | 90 degree elbow |
| Oring Thread 1 | 7/8-14 |
| Store Location (Lititz, PA) | Aisle 06, Section X1 |
|---|---|
| Package Length (in) | 1.40" |
| Package Width (in) | 1.20" |
| Package Height (in) | 0.40" |
| Type | 90 deg |
| Tube OD | 1/4 in |
| Thread Size 1 | 7/16 in-20 MORB |
| Thread Size 2 | 1/4 in-18 FNPSM Swivel |
| Size | 1/4 in |
| Nut Hex Size 1 | 9/16 in |
| Nut Hex Size 2 | 11/16 in |
| Length 1 | 1.11 in |
| Length 2 | 1.12 in |
| Flats | 7/16 in |
| Pressure Rating | 5000 psi |
| Material | Carbon Steel |
| Store Location (Lititz, PA) | Aisle 06, Section X1 |
|---|---|
| Package Length (in) | 1.60" |
| Package Width (in) | 1.00" |
| Package Height (in) | 0.40" |
| Type | 90 deg |
| Tube OD | 3/8 in |
| Thread Size 1 | 9/16 in-18 MORB |
| Thread Size 2 | 3/8 in-18 FNPSM Swivel |
| Size | 3/8 in |
| Nut Hex Size 1 | 11/16 in |
| Nut Hex Size 2 | 7/8 in |
| Length 1 | 1-1/4 in |
| Length 2 | 1.1 in |
| Flats | 9/16 in |
| Pressure Rating | 4000 psi |
| Material | Carbon Steel |
| Store Location (Lititz, PA) | Aisle 06, Section X1 |
|---|---|
| Package Length (in) | 2.80" |
| Package Width (in) | 1.20" |
| Package Height (in) | 0.60" |
| Type | 90 deg |
| Tube OD | 5/8 in |
| Thread Size 1 | 7/8 in-14 MORB |
| Thread Size 2 | 1/2 in-14 FNPSM Swivel |
| Size | 1/2 in |
| Nut Hex Size 1 | 1 in |
| Nut Hex Size 2 | 1 in |
| Length 1 | 1.62 in |
| Length 2 | 1.44 in |
| Flats | 7/8 in |
| Pressure Rating | 3500 psi |
| Material | Carbon Steel |
| Store Location (Lititz, PA) | Aisle 06, Section X1 |
|---|---|
| Package Length (in) | 2.60" |
| Package Width (in) | 2.20" |
| Package Height (in) | 1.00" |
| Type | 90 deg |
| Tube OD | 3/4 in |
| Thread Size 1 | 1-1/16 in-12 MORB |
| Thread Size 2 | 3/4 in-14 FNPSM Swivel |
| Size | 3/4 in |
| Nut Hex Size 1 | 1-1/4 in |
| Nut Hex Size 2 | 1-1/4 in |
| Length 1 | 1.94 in |
| Length 2 | 1.69 in |
| Flats | 1-1/16 in |
| Pressure Rating | 2200 psi |
| Material | Carbon Steel |
| Store Location (Lititz, PA) | Aisle 06, Section X1 |
|---|---|
| Package Length (in) | 2.40" |
| Package Width (in) | 1.40" |
| Package Height (in) | 0.20" |
| Type | 90 deg |
| Tube OD | 3/8 in |
| Thread Size 1 | 9/16 in-18 MORB |
| Thread Size 2 | 1/4 in-18 FNPSM Swivel |
| Size | 1/4 in |
| Nut Hex Size 1 | 11/16 in |
| Nut Hex Size 2 | 11/16 in |
| Length 1 | 1.19 in |
| Length 2 | 1.12 in |
| Flats | 9/16 in |
| Pressure Rating | 4000 psi |
| Material | Carbon Steel |
| Store Location (Lititz, PA) | Aisle 06, Section X1 |
|---|---|
| Package Length (in) | 2.00" |
| Package Width (in) | 2.00" |
| Package Height (in) | 1.00" |
| Type | 90 deg |
| Tube OD | 3/4 in |
| Thread Size 1 | 1-1/16 in-12 MORB |
| Thread Size 2 | 1/2 in-14 FNPSM Swivel |
| Size | 1/2 in |
| Nut Hex Size 1 | 1-1/4 in |
| Nut Hex Size 2 | 1 in |
| Length 1 | 1.94 in |
| Length 2 | 1-1/2 in |
| Flats | 1-1/16 in |
| Pressure Rating | 2200 psi |
| Material | Carbon Steel |
| Store Location (Lititz, PA) | Aisle 06, Section X1 |
|---|---|
| Package Length (in) | 2.40" |
| Package Width (in) | 1.40" |
| Package Height (in) | 0.20" |
| Type | 90 deg |
| Tube OD | 1/4 in |
| Thread Size 1 | 7/16 in-20 MORB |
| Thread Size 2 | 3/8 in-18 FNPSM Swivel |
| Size | 3/8 in |
| Nut Hex Size 1 | 9/16 in |
| Nut Hex Size 2 | 7/8 in |
| Length 1 | 1.28 in |
| Length 2 | 1.23 in |
| Flats | 9/16 in |
| Pressure Rating | 4000 psi |
| Material | Carbon Steel |
| Store Location (Lititz, PA) | Aisle 06, Section X1 |
|---|---|
| Package Length (in) | 1.80" |
| Package Width (in) | 1.60" |
| Package Height (in) | 0.60" |
| Type | 90 deg |
| Tube OD | 3/8 in |
| Thread Size 1 | 9/16 in-18 MORB |
| Thread Size 2 | 1/2 in-14 FNPSM Swivel |
| Size | 1/2 in |
| Nut Hex Size 1 | 11/16 in |
| Nut Hex Size 2 | 1 in |
| Length 1 | 1.41 in |
| Length 2 | 1.29 in |
| Flats | 3/4 in |
| Pressure Rating | 3500 psi |
| Material | Carbon Steel |
| Store Location (Lititz, PA) | Aisle 06, Section X1 |
|---|---|
| Package Length (in) | 2.80" |
| Package Width (in) | 2.80" |
| Package Height (in) | 1.40" |
| Type | 90 deg |
| Tube OD | 1 in |
| Thread Size 1 | 1-5/16 in-12 MORB |
| Thread Size 2 | 1 in-11.5 FNPSM Swivel |
| Size | 1 in |
| Nut Hex Size 1 | 1-1/2 in |
| Nut Hex Size 2 | 1-1/2 in |
| Length 1 | 2.08 in |
| Length 2 | 1.86 in |
| Flats | 1-5/16 in |
| Pressure Rating | 2000 psi |
| Material | Carbon Steel |
| Store Location (Lititz, PA) | Aisle 06, Section X1 |
|---|---|
| Package Length (in) | 3.00" |
| Package Width (in) | 2.00" |
| Package Height (in) | 1.20" |
| Type | 90 deg |
| Tube OD | 1 in |
| Thread Size 1 | 1-5/16 in-12 MORB |
| Thread Size 2 | 3/4 in-14 FNPSM Swivel |
| Size | 3/4 in |
| Nut Hex Size 1 | 1-1/2 in |
| Nut Hex Size 2 | 1-1/4 in |
| Length 1 | 2.08 in |
| Length 2 | 1.89 in |
| Flats | 1-5/16 in |
| Pressure Rating | 2000 psi |
| Material | Carbon Steel |
