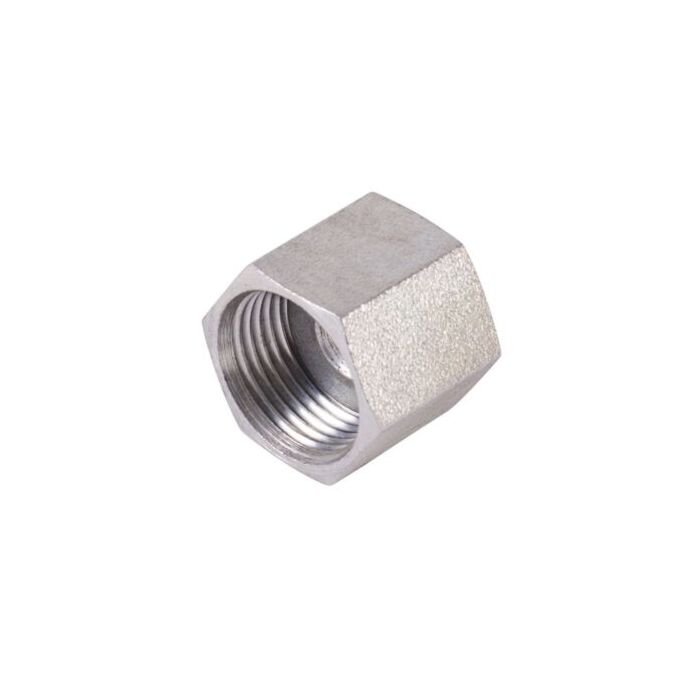

ORFS Cap
ORFS Cap 5/8
ORFS Cap 1/2
ORFS Cap 1/4
ORFS Cap 3/8
ORFS Cap 3/4
ORFS Cap 1
SKU: FS304C-
SKU: FS304C10
SKU: FS304C08
SKU: FS304C04
SKU: FS304C06
SKU: FS304C12
SKU: FS304C16
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
As low as:
$1.17
As low as:
Features
Specifications
ORFS Cap 5/8
- Black buna-n 90 durometer OFS o-ring
- RoHS compliant CR6 free (clear zinc trivalent)plating
- PCC world-class quality process
ORFS Cap 5/8
- Black buna-n 90 durometer OFS o-ring
- RoHS compliant CR6 free (clear zinc trivalent)plating
- PCC world-class quality process
ORFS Cap 1/2
- Black buna-n 90 durometer OFS o-ring
- RoHS compliant CR6 free (clear zinc trivalent)plating
- PCC world-class quality process
ORFS Cap 1/4
- This product can expose you to chemicals, including cobalt, which are known to the state of California to cause cancer and birth defects or other reproductive harm. For more information visit www.P65Warnings.ca.gov
ORFS Cap 3/8
- This product can expose you to chemicals, including cobalt, which are known to the state of California to cause cancer and birth defects or other reproductive harm. For more information visit www.P65Warnings.ca.gov
ORFS Cap 3/4
- Black buna-n 90 durometer OFS o-ring
- RoHS compliant CR6 free (clear zinc trivalent)plating
- PCC world-class quality process
ORFS Cap 1
- Black buna-n 90 durometer OFS o-ring
- RoHS compliant CR6 free (clear zinc trivalent)plating
- PCC world-class quality process
| Store Location (Lititz, PA) | Aisle 06, Section X1 |
|---|---|
| Package Length (in) | 1.40" |
| Package Width (in) | 0.80" |
| Package Height (in) | 0.60" |
| Tube OD | 5/8 in |
| Thread Size 1 | 1 in-14 FOFS Swivel |
| Material | Carbon Steel |
| Pressure Rating | 6000 psi |
| Hex Size | 1-1/8 in |
| Length | 0.93 in |
| Store Location (Lititz, PA) | Aisle 06, Section X1 |
|---|---|
| Package Length (in) | 1.40" |
| Package Width (in) | 0.80" |
| Package Height (in) | 0.60" |
| Tube OD | 5/8 in |
| Thread Size 1 | 1 in-14 FOFS Swivel |
| Material | Carbon Steel |
| Pressure Rating | 6000 psi |
| Hex Size | 1-1/8 in |
| Length | 0.93 in |
| Store Location (Lititz, PA) | Aisle 06, Section X1 |
|---|---|
| Package Length (in) | 1.60" |
| Package Width (in) | 0.80" |
| Package Height (in) | 0.60" |
| Tube OD | 1/2 in |
| Thread Size 1 | 13/16 in-16 FOFS |
| Material | Carbon Steel |
| Pressure Rating | 9200 psi |
| Hex Size | 15/16 in |
| Length | 0.83 in |
| Store Location (Lititz, PA) | Aisle 06, Section X1 |
|---|---|
| Package Length (in) | 0.20" |
| Package Width (in) | 0.20" |
| Package Height (in) | 0.20" |
| Material | Steel |
| Shape | Cap |
| Face Seal Thread | 9/16-18 |
| Weight | 0.04 lbs |
| Tube Od | 1/4 |
| Store Location (Lititz, PA) | Aisle 06, Section X1 |
|---|---|
| Package Length (in) | 1.60" |
| Package Width (in) | 1.00" |
| Package Height (in) | 0.20" |
| Material | Steel |
| Shape | Cap |
| Face Seal Thread | 11/16-16 |
| Weight | 0.06 lbs |
| Tube Od | 3/8 |
| Store Location (Lititz, PA) | Aisle 06, Section X1 |
|---|---|
| Package Length (in) | 1.40" |
| Package Width (in) | 1.00" |
| Package Height (in) | 0.60" |
| Tube OD | 3/4 in |
| Thread Size 1 | 1-3/16 in-12 FOFS |
| Material | Carbon Steel |
| Pressure Rating | 6000 psi |
| Hex Size | 1-3/8 in |
| Length | 1.02 in |
| Store Location (Lititz, PA) | Aisle 06, Section X1 |
|---|---|
| Package Length (in) | 2.00" |
| Package Width (in) | 1.20" |
| Package Height (in) | 1.00" |
| Tube OD | 1 in |
| Thread Size 1 | 1-7/16 in-12 FOFS |
| Material | Carbon Steel |
| Pressure Rating | 6000 psi |
| Hex Size | 1-5/8 in |
| Length | 1.1 in |
