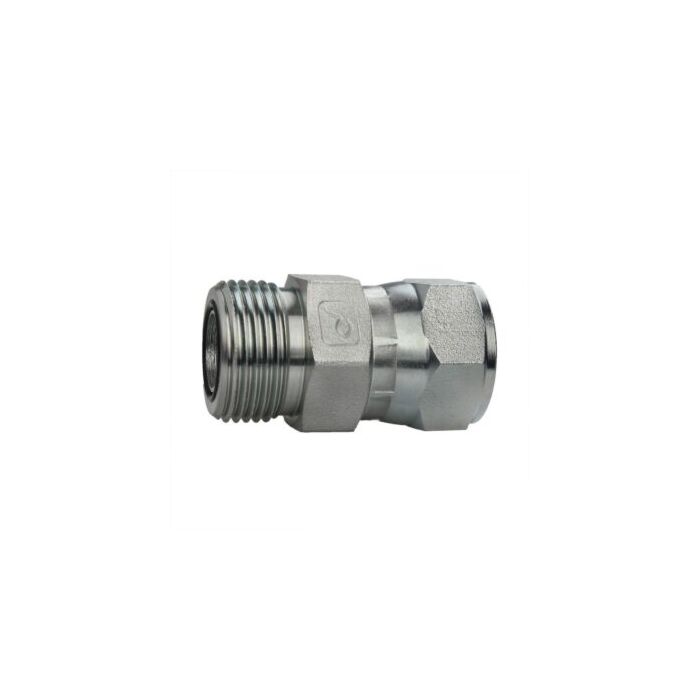

ORFS to JIC Swivel
ORFS to JIC Swivel 1/2 MOFS x 1/2 FJIC
ORFS to JIC Swivel 3/8 MOFS x 3/8 FJIC
ORFS to JIC Swivel 3/4 MOFS x 3/4 FJIC
SKU: FS6402-
SKU: FS6402X0808
SKU: FS6402X0606
SKU: FS6402X1212
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
As low as:
$5.49
As low as:
Features
Specifications
ORFS to JIC Swivel 1/2 MOFS x 1/2 FJIC
- Black buna-n 90 durometer o-ring
- RoHS compliant CR6 free (clear zinc trivalent)plating
- PCC world-class quality process
ORFS to JIC Swivel 1/2 MOFS x 1/2 FJIC
- Black buna-n 90 durometer o-ring
- RoHS compliant CR6 free (clear zinc trivalent)plating
- PCC world-class quality process
ORFS to JIC Swivel 3/8 MOFS x 3/8 FJIC
- Black buna-n 90 durometer o-ring
- RoHS compliant CR6 free (clear zinc trivalent)plating
- PCC world-class quality process
ORFS to JIC Swivel 3/4 MOFS x 3/4 FJIC
- Black buna-n 90 durometer o-ring
- RoHS compliant CR6 free (clear zinc trivalent)plating
- PCC world-class quality process
| Store Location (Lititz, PA) | Aisle 06, Section X1 |
|---|---|
| Package Length (in) | 1.60" |
| Package Width (in) | 1.00" |
| Package Height (in) | 0.20" |
| Tube OD | 1/2 in |
| Thread Size 1 | 13/16 in-16 MOFS |
| Thread Size 2 | 3/4 in-16 FJIC Swivel |
| Size | 1/2 in |
| Material | Carbon Steel |
| Pressure Rating | 5000 psi |
| Hex Size | 7/8 in |
| Length | 1.63 in |
| Nut Hex Size | 7/8 in |
| Store Location (Lititz, PA) | Aisle 06, Section X1 |
|---|---|
| Package Length (in) | 1.60" |
| Package Width (in) | 1.00" |
| Package Height (in) | 0.20" |
| Tube OD | 1/2 in |
| Thread Size 1 | 13/16 in-16 MOFS |
| Thread Size 2 | 3/4 in-16 FJIC Swivel |
| Size | 1/2 in |
| Material | Carbon Steel |
| Pressure Rating | 5000 psi |
| Hex Size | 7/8 in |
| Length | 1.63 in |
| Nut Hex Size | 7/8 in |
| Store Location (Lititz, PA) | Aisle 06, Section X1 |
|---|---|
| Package Length (in) | 1.40" |
| Package Width (in) | 0.80" |
| Package Height (in) | 0.20" |
| Tube OD | 3/8 in |
| Thread Size 1 | 11/16 in-16 MOFS |
| Thread Size 2 | 9/16 in-18 FJIC Swivel |
| Size | 3/8 in |
| Material | Carbon Steel |
| Pressure Rating | 5000 psi |
| Hex Size | 3/4 in |
| Length | 1.56 in |
| Nut Hex Size | 11/16 in |
| Store Location (Lititz, PA) | Aisle 06, Section X1 |
|---|---|
| Package Length (in) | 2.60" |
| Package Width (in) | 1.20" |
| Package Height (in) | 1.00" |
| Tube OD | 3/4 in |
| Thread Size 1 | 1-3/16 in-12 MOFS |
| Thread Size 2 | 1-1/16 in-12 FJIC Swivel |
| Size | 3/4 in |
| Material | Carbon Steel |
| Pressure Rating | 5000 psi |
| Hex Size | 1-1/4 in |
| Length | 2.21 in |
| Nut Hex Size | 1-1/4 in |
