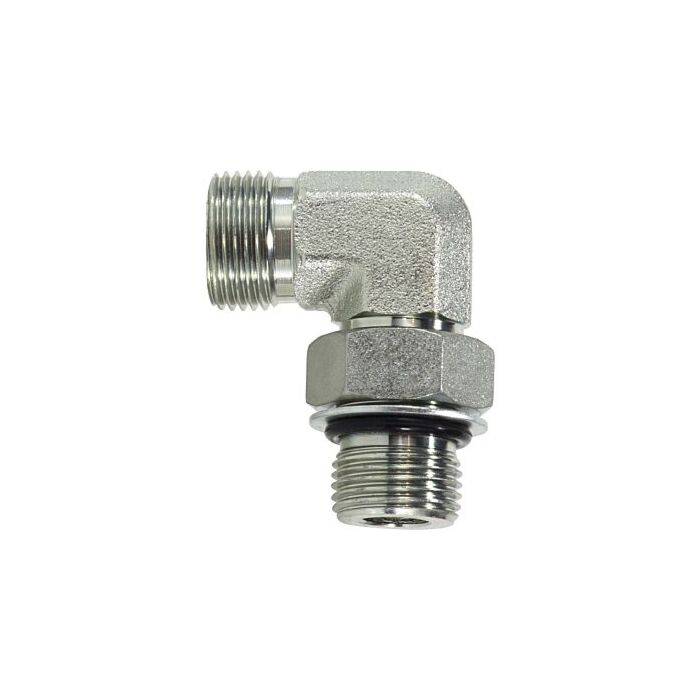

ORFS to ORB Elbow 90° MOFS x MORB
ORFS to ORB Elbow 90° 3/8 MOFS x 3/8 MORB
ORFS to ORB Elbow 90° 1/2 MOFS x 1/2 MORB
ORFS to ORB Elbow 90° 3/8 MOFS x 1/2 MORB
SKU: FS6801-
SKU: FS6801X0606
SKU: FS6801X0808
SKU: FS6801X0608
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
As low as:
$3.92
As low as:
Features
Specifications
ORFS to ORB Elbow 90° 3/8 MOFS x 3/8 MORB
- Black buna-n 90 durometer o-ring
- RoHS compliant CR6 free (clear zinc trivalent)plating
- PCC world-class quality process
- Adjustable nut/washer/o-ring
ORFS to ORB Elbow 90° 3/8 MOFS x 3/8 MORB
- Black buna-n 90 durometer o-ring
- RoHS compliant CR6 free (clear zinc trivalent)plating
- PCC world-class quality process
- Adjustable nut/washer/o-ring
ORFS to ORB Elbow 90° 1/2 MOFS x 1/2 MORB
- Black buna-n 90 durometer o-ring
- RoHS compliant CR6 free (clear zinc trivalent)plating
- PCC world-class quality process
- Adjustable nut/washer/o-ring
ORFS to ORB Elbow 90° 3/8 MOFS x 1/2 MORB
- Black buna-n 90 durometer o-ring
- RoHS compliant CR6 free (clear zinc trivalent)plating
- PCC world-class quality process
- Adjustable nut/washer/o-ring
| Store Location (Lititz, PA) | Aisle 06, Section X1 |
|---|---|
| Package Length (in) | 2.20" |
| Package Width (in) | 1.40" |
| Package Height (in) | 0.40" |
| Type | 90 deg |
| Tube OD | 3/8 in |
| Thread Size 1 | 11/16 in-16 MOFS |
| Thread Size 2 | 9/16 in-18 MORB |
| Size | 3/8 in |
| Nut Hex Size 1 | 3/4 in |
| Length 1 | 0.98 in |
| Length 2 | 1.45 in |
| Flats | 3/4 in |
| Pressure Rating | 6000 psi |
| Material | Carbon Steel |
| Store Location (Lititz, PA) | Aisle 06, Section X1 |
|---|---|
| Package Length (in) | 2.20" |
| Package Width (in) | 1.40" |
| Package Height (in) | 0.40" |
| Type | 90 deg |
| Tube OD | 3/8 in |
| Thread Size 1 | 11/16 in-16 MOFS |
| Thread Size 2 | 9/16 in-18 MORB |
| Size | 3/8 in |
| Nut Hex Size 1 | 3/4 in |
| Length 1 | 0.98 in |
| Length 2 | 1.45 in |
| Flats | 3/4 in |
| Pressure Rating | 6000 psi |
| Material | Carbon Steel |
| Store Location (Lititz, PA) | Aisle 06, Section X1 |
|---|---|
| Package Length (in) | 2.00" |
| Package Width (in) | 1.80" |
| Package Height (in) | 0.60" |
| Type | 90 deg |
| Tube OD | 1/2 in |
| Thread Size 1 | 13/16 in-16 MOFS |
| Thread Size 2 | 13/16 in-16 MORB |
| Size | 1/2 in |
| Nut Hex Size 1 | 15/16 in |
| Length 1 | 1.1 in |
| Length 2 | 1.6 in |
| Flats | 3/4 in |
| Pressure Rating | 6000 psi |
| Material | Carbon Steel |
| Store Location (Lititz, PA) | Aisle 06, Section X1 |
|---|---|
| Package Length (in) | 2.00" |
| Package Width (in) | 1.60" |
| Package Height (in) | 0.40" |
| Type | 90 deg |
| Tube OD | 3/8 in |
| Thread Size 1 | 11/16 in-16 MOFS |
| Thread Size 2 | 3/4 in-16 MORB |
| Size | 1/2 in |
| Nut Hex Size 1 | 15/16 in |
| Length 1 | 1.04 in |
| Length 2 | 1.6 in |
| Flats | 3/4 in |
| Pressure Rating | 6000 psi |
| Material | Carbon Steel |
