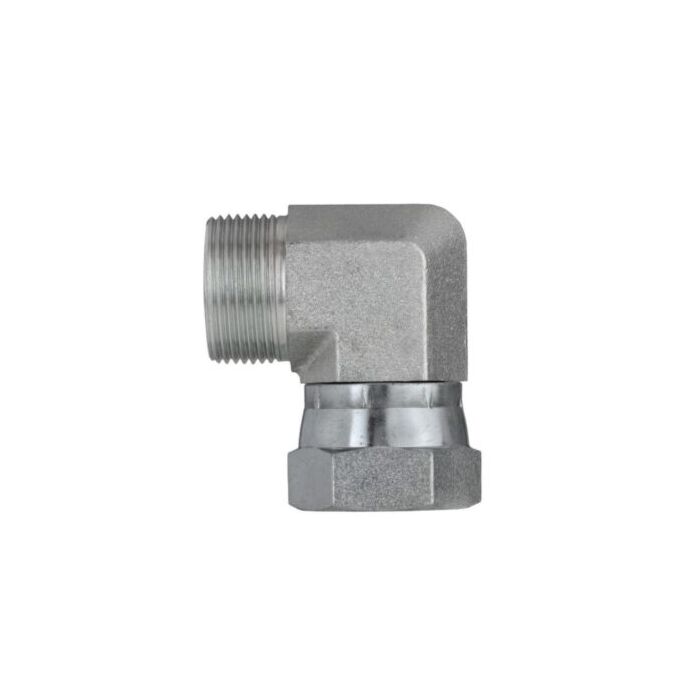

ORFS to ORFS Swivel Elbow 90° OFS x FOFS

ORFS to ORFS Swivel Elbow 90° 3/8 OFS x 3/8 FOFS

ORFS to ORFS Swivel Elbow 90° 3/4 OFS x 3/4 FOFS

ORFS to ORFS Swivel Elbow 90° 1/4 MOFS x 1/4 FOFS

ORFS to ORFS Swivel Elbow 90° 5/8 OFS x 5/8 FOFS

ORFS to ORFS Swivel Elbow 90° 1/2 OFS x 1/2 FOFS

SKU: FS6500-
SKU: FS6500X0606
SKU: FS6500X1212
SKU: FS6500X0404
SKU: FS6500X1010
SKU: FS6500X0808
Select options to see availability
Lititz, PA
M-F 6:30am-8:30pm; Sat 6:30am-4:00pm
location-pin All Locations caret-down

Options

Features chevron-down chevron-up
ORFS to ORFS Swivel Elbow 90° 3/8 OFS x 3/8 FOFS
  • Black buna-n 90 durometer o-ring
  • RoHS compliant CR6 free (clear zinc trivalent)plating
  • PCC world-class quality process
ORFS to ORFS Swivel Elbow 90° 3/8 OFS x 3/8 FOFS
  • Black buna-n 90 durometer o-ring
  • RoHS compliant CR6 free (clear zinc trivalent)plating
  • PCC world-class quality process
ORFS to ORFS Swivel Elbow 90° 3/4 OFS x 3/4 FOFS
  • Black buna-n 90 durometer o-ring
  • RoHS compliant CR6 free (clear zinc trivalent)plating
  • PCC world-class quality process
ORFS to ORFS Swivel Elbow 90° 1/4 MOFS x 1/4 FOFS
  • Black buna-n 90 durometer o-ring
  • RoHS compliant CR6 free (clear zinc trivalent)plating
  • PCC world-class quality process
ORFS to ORFS Swivel Elbow 90° 5/8 OFS x 5/8 FOFS
  • Black buna-n 90 durometer o-ring
  • RoHS compliant CR6 free (clear zinc trivalent)plating
  • PCC world-class quality process
ORFS to ORFS Swivel Elbow 90° 1/2 OFS x 1/2 FOFS
  • Black buna-n 90 durometer o-ring
  • RoHS compliant CR6 free (clear zinc trivalent)plating
  • PCC world-class quality process
Specifications chevron-down chevron-up
Store Location (Lititz, PA) Aisle 06, Section X1
Package Length (in) 2.00"
Package Width (in) 1.40"
Package Height (in) 0.20"
Type 90 deg Street
Tube OD 3/8 in
Thread Size 1 11/16 in-16 MOFS
Thread Size 2 11/16 in-16 FOFS Swivel
Size 3/8 in
Nut Hex Size 1 13/16 in
Length 1 0.98 in
Length 2 1.15 in
Flats 3/4 in
Pressure Rating 9200 psi
Material Carbon Steel
Store Location (Lititz, PA) Aisle 06, Section X1
Package Length (in) 2.00"
Package Width (in) 1.40"
Package Height (in) 0.20"
Type 90 deg Street
Tube OD 3/8 in
Thread Size 1 11/16 in-16 MOFS
Thread Size 2 11/16 in-16 FOFS Swivel
Size 3/8 in
Nut Hex Size 1 13/16 in
Length 1 0.98 in
Length 2 1.15 in
Flats 3/4 in
Pressure Rating 9200 psi
Material Carbon Steel
Store Location (Lititz, PA) Aisle 06, Section X1
Package Length (in) 2.60"
Package Width (in) 2.00"
Package Height (in) 1.00"
Type 90 deg Street
Tube OD 3/4 in
Thread Size 1 1-3/16 in-12 MOFS
Thread Size 2 1-3/16 in-12 FOFS Swivel
Size 3/4 in
Nut Hex Size 1 1-3/8 in
Length 1 1.47 in
Length 2 1.82 in
Flats 1-3/16 in
Pressure Rating 6000 psi
Material Carbon Steel
Store Location (Lititz, PA) Aisle 06, Section X1
Package Length (in) 1.80"
Package Width (in) 1.20"
Package Height (in) 0.40"
Type 90 deg Street
Tube OD 1/4 in
Thread Size 1 9/16 in-18 MOFS
Thread Size 2 9/16 in-18 FOFS Swivel
Size 1/4 in
Nut Hex Size 1 11/16 in
Length 1 0.85 in
Length 2 1.04 in
Flats 9/16 in
Pressure Rating 9200 psi
Material Carbon Steel
Store Location (Lititz, PA) Aisle 06, Section X1
Package Length (in) 1.00"
Package Width (in) 1.40"
Package Height (in) 1.40"
Type 90 deg Street
Tube OD 5/8 in
Thread Size 1 1 in-14 MOFS
Thread Size 2 1 in-14 FOFS Swivel
Size 5/8 in
Nut Hex Size 1 1-1/8 in
Length 1 1.31 in
Length 2 1.62 in
Flats 1-1/16 in
Pressure Rating 6000 psi
Material Carbon Steel
Store Location (Lititz, PA) Aisle 06, Section X1
Package Length (in) 1.80"
Package Width (in) 1.60"
Package Height (in) 0.40"
Type 90 deg Street
Tube OD 1/2 in
Thread Size 1 13/16 in-16 MOFS
Thread Size 2 13/16 in-16 FOFS Swivel
Size 1/2 in
Nut Hex Size 1 15/16 in
Length 1 1.1 in
Length 2 1.49 in
Flats 3/4 in
Pressure Rating 9200 psi
Material Carbon Steel
