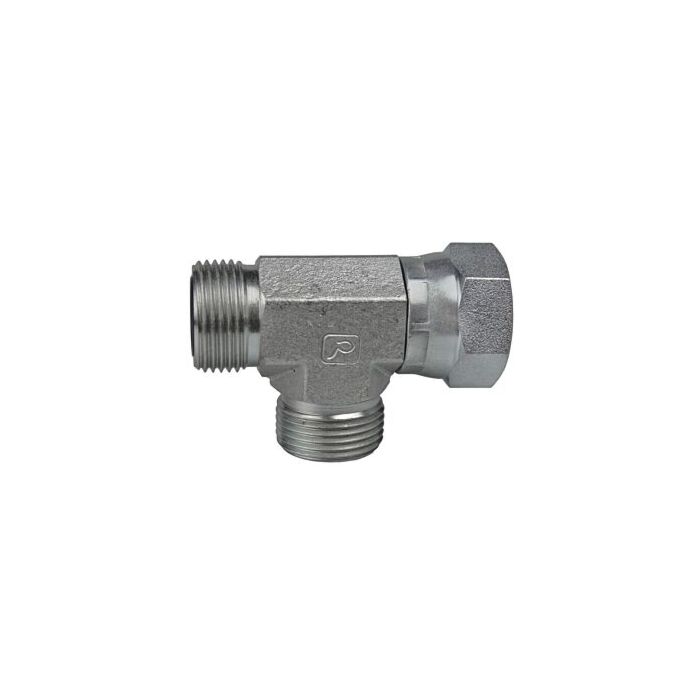

ORFS to ORFS Swivel Run Tee
ORFS to ORFS Swivel Run Tee 3/8 OFS
ORFS to ORFS Swivel Run Tee 1/2 OFS
ORFS to ORFS Swivel Run Tee 5/8 OFS
ORFS to ORFS Swivel Run Tee 1/4 OFS
SKU: FS6602-
SKU: FS6602X060606
SKU: FS6602X080808
SKU: FS6602X101010
SKU: FS6602X040404
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
As low as:
$6.62
As low as:
Features
Specifications
ORFS to ORFS Swivel Run Tee 3/8 OFS
- Black buna-n 90 durometer OFS o-ring
- RoHS compliant CR6 free (clear zinc trivalent)plating
- PCC world-class quality process
ORFS to ORFS Swivel Run Tee 3/8 OFS
- Black buna-n 90 durometer OFS o-ring
- RoHS compliant CR6 free (clear zinc trivalent)plating
- PCC world-class quality process
ORFS to ORFS Swivel Run Tee 1/2 OFS
- Black buna-n 90 durometer OFS o-ring
- RoHS compliant CR6 free (clear zinc trivalent)plating
- PCC world-class quality process
ORFS to ORFS Swivel Run Tee 5/8 OFS
- Black buna-n 90 durometer OFS o-ring
- RoHS compliant CR6 free (clear zinc trivalent)plating
- PCC world-class quality process
ORFS to ORFS Swivel Run Tee 1/4 OFS
- Black buna-n 90 durometer OFS o-ring
- RoHS compliant CR6 free (clear zinc trivalent)plating
- PCC world-class quality process
| Store Location (Lititz, PA) | Aisle 06, Section X1 |
|---|---|
| Package Length (in) | 2.60" |
| Package Width (in) | 1.80" |
| Package Height (in) | 0.40" |
| Tube OD | 3/8 in |
| Thread Size 1 | 11/16 in-16 MOFS |
| Thread Size 2 | 11/16 in-16 FOFS |
| Thread Size 3 | 11/16 in-16 MOFS |
| Material | Carbon Steel |
| Pressure Rating | 9200 psi |
| Flats | 3/4 in |
| Length 1 | 0.98 in |
| Length 2 | 1.15 in |
| Nut Hex Size | 13/16 in |
| Store Location (Lititz, PA) | Aisle 06, Section X1 |
|---|---|
| Package Length (in) | 2.60" |
| Package Width (in) | 1.80" |
| Package Height (in) | 0.40" |
| Tube OD | 3/8 in |
| Thread Size 1 | 11/16 in-16 MOFS |
| Thread Size 2 | 11/16 in-16 FOFS |
| Thread Size 3 | 11/16 in-16 MOFS |
| Material | Carbon Steel |
| Pressure Rating | 9200 psi |
| Flats | 3/4 in |
| Length 1 | 0.98 in |
| Length 2 | 1.15 in |
| Nut Hex Size | 13/16 in |
| Store Location (Lititz, PA) | Aisle 06, Section X1 |
|---|---|
| Package Length (in) | 3.00" |
| Package Width (in) | 1.80" |
| Package Height (in) | 0.60" |
| Tube OD | 1/2 in |
| Thread Size 1 | 13/16 in-16 MOFS |
| Thread Size 2 | 13/16 in-16 FOFS |
| Thread Size 3 | 13/16 in-16 MOFS |
| Material | Carbon Steel |
| Pressure Rating | 9200 psi |
| Flats | 3/4 in |
| Length 1 | 1.1 in |
| Length 2 | 1.49 in |
| Nut Hex Size | 15/16 in |
| Store Location (Lititz, PA) | Aisle 06, Section X1 |
|---|---|
| Package Length (in) | 3.40" |
| Package Width (in) | 2.00" |
| Package Height (in) | 0.80" |
| Tube OD | 5/8 in |
| Thread Size 1 | 1 in-14 MOFS |
| Thread Size 2 | 1 in-14 FOFS Swivel |
| Thread Size 3 | 1 in-14 MOFS |
| Material | Carbon Steel |
| Pressure Rating | 6000 psi |
| Flats | 1-1/16 in |
| Length 1 | 1.31 in |
| Length 2 | 1.62 in |
| Nut Hex Size | 1-1/8 in |
| Store Location (Lititz, PA) | Aisle 06, Section X1 |
|---|---|
| Package Length (in) | 1.80" |
| Package Width (in) | 1.40" |
| Package Height (in) | 0.20" |
| Tube OD | 1/4 in |
| Thread Size 1 | 9/16 in-18 MOFS |
| Thread Size 2 | 9/16 in-18 FOFS |
| Thread Size 3 | 9/16 in-18 MOFS |
| Material | Carbon Steel |
| Pressure Rating | 9200 psi |
| Flats | 9/16 in |
| Length 1 | 0.85 in |
| Length 2 | 1.04 in |
| Nut Hex Size | 11/16 in |
