Weasler

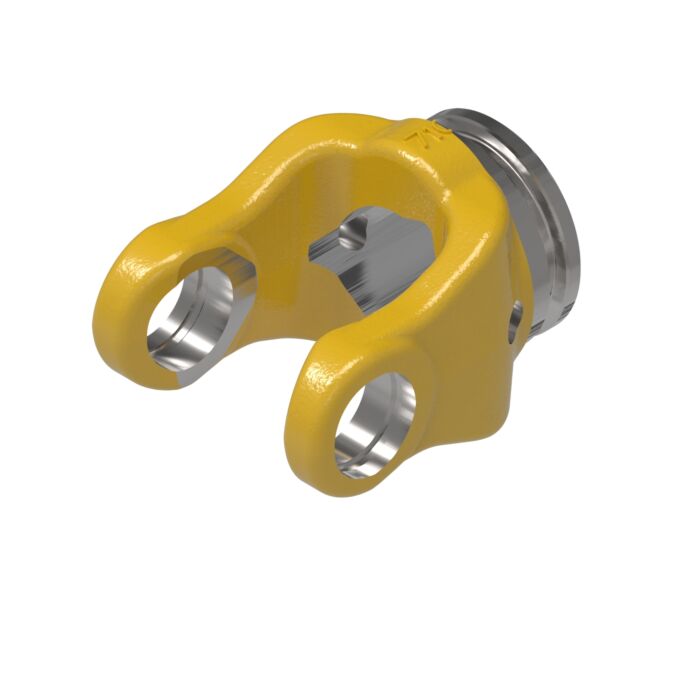

1 Series Outer Profile Yoke, Fits 33mm Tri-lobe Tubing

SKU: 7006133
Lititz, PA
M-F 6:30am-8:30pm; Sat 6:30am-4:00pm
location-pin All Locations caret-down
Lititz Your Store 1 in stock

Optional Accessories

Navigating through the elements of the carousel is possible using the tab key. You can skip the carousel or go straight to carousel navigation using the skip links.
Weasler #1 Series Extended Lube Cross & Bearing Kit
Weasler
#1 Series Extended Lube Cross & Bearing Kit
$39.64
2016154
Weasler #1 Series Standard Cross & Bearing Kit
Weasler
#1 Series Standard Cross & Bearing Kit
$29.34
2006154
Features chevron-down chevron-up
Weasler yoke weldment assemblies provide yoke to shaft and yoke to tube weldment options that are offered in North American (domestic) , German, and Italian shaft and tube profiles.
  • Series: 1
  • Size: 33 mm Tri-lobe Tubing
  • Style: Italian
Specifications chevron-down chevron-up
Brand Weasler
UPC 728357300672
Store Location (Lititz, PA) Aisle 08, Section W4
Package Length (in) 3.80"
Package Width (in) 0.80"
Package Height (in) 2.60"
Manufacturer Part Number 700-6133
Series 1
Outside Diameter 1.85"
Bore 1.2992"
Bore Description 33 MM TRILOBE
Connection 1 Description ROLL PIN
Pin Hole Diameter 0.315"
Bearing Diameter 1 0.866"
Bearing Span 1 2.122"
Bearing Diameter 2 1.563"
Bearing Span 2 0.175"
Horsepower at 540 RPM 19 hp
Horsepower at 1000 RPM 29 hp
Style Italian
