Weasler

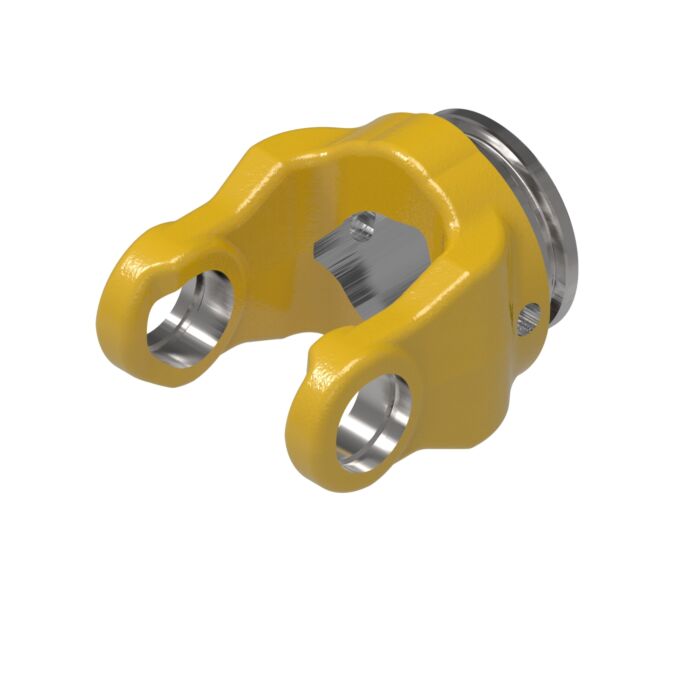

2 Series Outer Profile Yoke, Fits 36.8mm Trilobe Tubing

SKU: 7006236
Lititz, PA
M-F 6:30am-8:30pm; Sat 6:30am-4:00pm
location-pin All Locations caret-down
Lititz Your Store 2 in stock

Optional Accessories

Navigating through the elements of the carousel is possible using the tab key. You can skip the carousel or go straight to carousel navigation using the skip links.
Weasler #2 & 2200 Series Standard Cross & Bearing Kit
Weasler
#2 & 2200 Series Standard Cross & Bearing Kit
$31.91
2008261
Weasler #2 & 2200 Series Extended LubeCross & Bearing Kit
Weasler
#2 & 2200 Series Extended LubeCross & Bearing Kit
$43.26
2018261
Features chevron-down chevron-up
Weasler yoke weldment assemblies provide yoke to shaft and yoke to tube weldment options that are offered in North American (domestic) , German, and Italian shaft and tube profiles.
  • Series: 2
  • Size: 36.8mm Trilobe
  • Style: Italian
Specifications chevron-down chevron-up
Brand Weasler
UPC 728357300689
Store Location (Lititz, PA) Aisle 08, Section W4
Package Length (in) 3.80"
Package Width (in) 0.80"
Package Height (in) 3.80"
Manufacturer Part Number 700-6236
Series 2
Outside Diameter 2.126"
Bore 1.4173"
Bore Description 36 MM TRILOBE
Connection 1 Description ROLL PIN
Pin Hole Diameter 0.315"
Bearing Diameter 1 0.938"
Bearing Span 1 2.406"
Bearing Diameter 2 1.803"
Bearing Span 2 0.175"
Horsepower at 540 RPM 25 hp
Horsepower at 1000 RPM 38 hp
Style Italian
