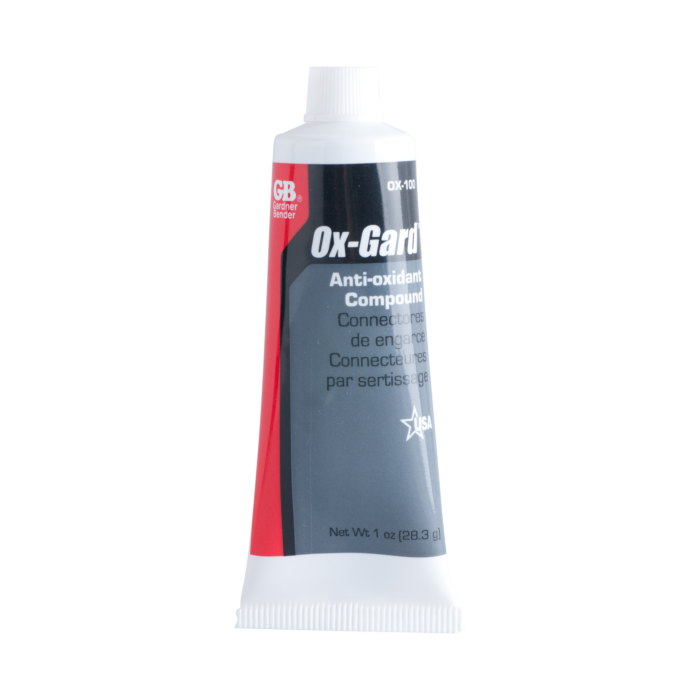

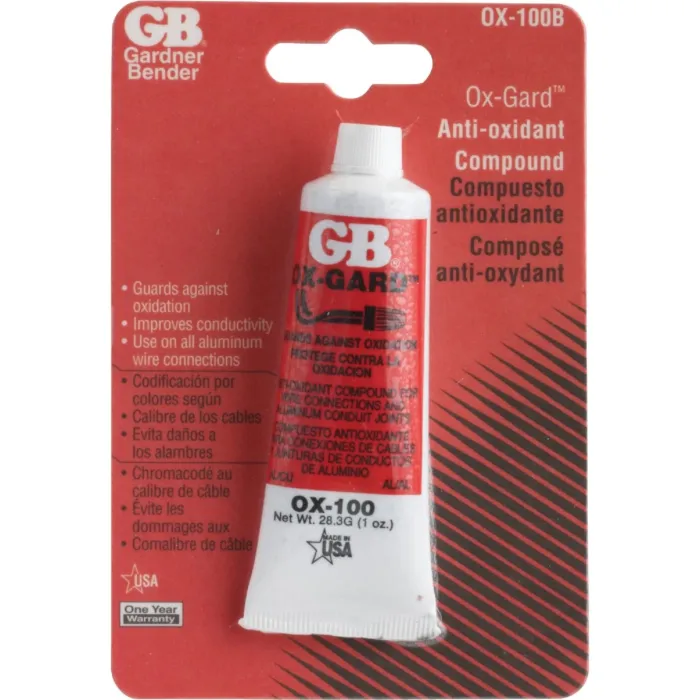

Ox-Gard Anti-Oxidant Compound contains prime grade zinc and is formulated with metallic zinc and graphite to create a compound that enhances electrical and thermal conductivity which is used on high power crimp connections and stud bolt mountings. When the connection is tightened, the grease is displaced, leaving a layer of zinc and graphite filling in the surface imperfections of the interface. This has a twofold effect; it improves electrical conductivity and it improves thermal conductivity. This reduces the connection temperature under high power conditions by a reduced voltage drop and by providing a heat conductivity path to the connection's substrate. Ox-Gard Anti-Oxidant Compound is manufactured with unique grease compounded from custom refined low sulphur oil. The grease base ensures brush-ability over a wide temperature range, tenacious adherence to all surfaces, resistance to water wash out and the prevention of rust/corrosion. This makes the product easier and more reliable to use.
- Makes connections more reliable
- Makes connections more weatherproof
- Protects connections from corrosion
- Reduces temperate rise
- Low sulphur content
- Non-reactive, no gassing in storage
- Brushable over a wide temperature range
- Sticks to wet joints
Brand | Gardner Bender |
---|---|
UPC | 032076790110 |
Store Location (Lititz, PA) | Aisle 08, Section D4 |
Package Length (in) | 5.20" |
Package Width (in) | 3.60" |
Package Height (in) | 0.80" |
Manufacturer Part Number | OX-100B |
Each in Package Height (in) * | 5.500 |
Each in Package Width (in) ° | 3.750 |
Each in Package Length/Depth (in) * | 1.000 |
Each in Package Weight (oz) ° | 1.350 |
Ox-Gard Spec Sheet | Ox-Gard Spec Sheet |
