Features
Specifications

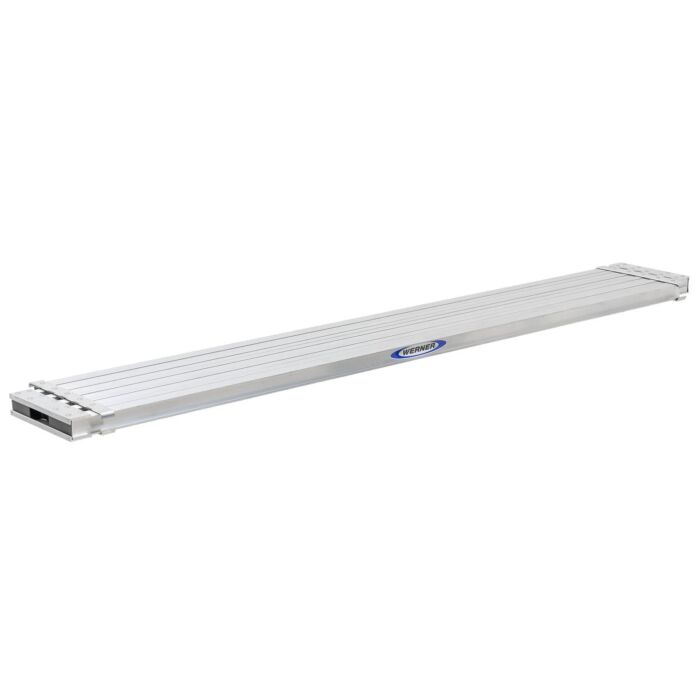

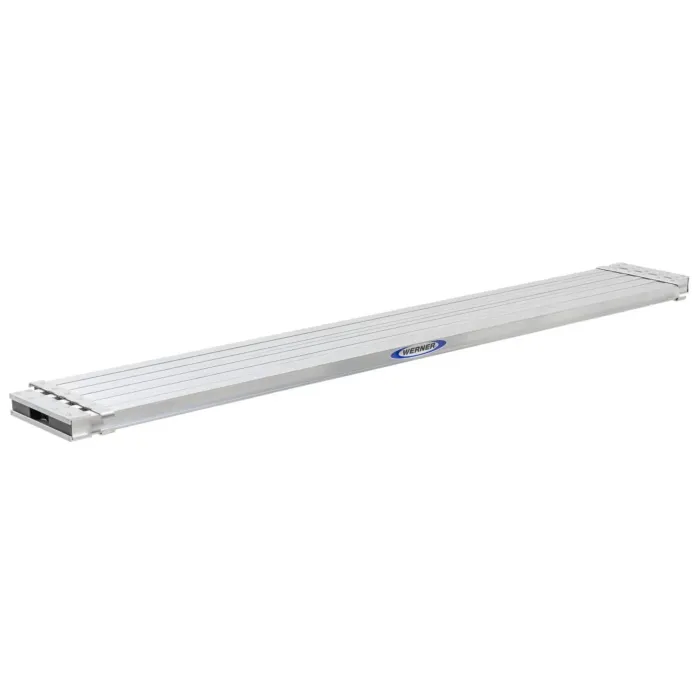

The PA200 series Aluminum Extension Planks are ideal for use on stepladders, telescoping multiladders, extension trestle ladders and extension and single straight ladders equipped with ladder jacks. Positive stops on the plank prevent overextending. Molded thermo-plastic spacer guides allow for easy open/close action. Made of 2in deep box section extrusions. Heavy end flange/handles for rigidity and ease of operation. Outer flange is open for ladder jack clamps. The extruded cross members are riveted with solid aluminum rivets. Locking mechanism sets the plank in 12in increments. 250 pound load capacity.
- PA210
- PA208
- PA206
- Molded thermo-plastic spacer guides for easy open/close action
- Locking mechanism sets the plank in 12 in increments
- Positive stops prevent over-extending
- For use on stepladders, telescoping multiladders, extension trestle ladders and extension and single ladders equipped with ladder jacks
- Heavy end flange/handles for rigidity and ease of operation
- Made of 2 in deep box section extrusions
- Outer flange open for ladder jack clamps
- Extruded cross member riveted with solid aluminum rivets
Brand | Werner |
---|---|
UPC | 051751016499 |
Manufacturer Part Number | PA208 |
Approx. Width | 14 in |
Load Capacity | 250 lbs |
Side Rail Length | 8 ft to 13 ft |
Duty Rating/Sq Ft | 50 lbs |
Approx. Shipping Wt. Lbs. | 40.5 |
Person Capacity | 1 |
Material | Aluminum |
Approx. Cu. Ft. Per Unit | 1.97 |
Certifications | ANSI A10.8 (2001); OSHA |
Outer Flanged Rails | 1-7/8 in x 2 in |
Inner Rails | 1-1/8 in x 2 in |
