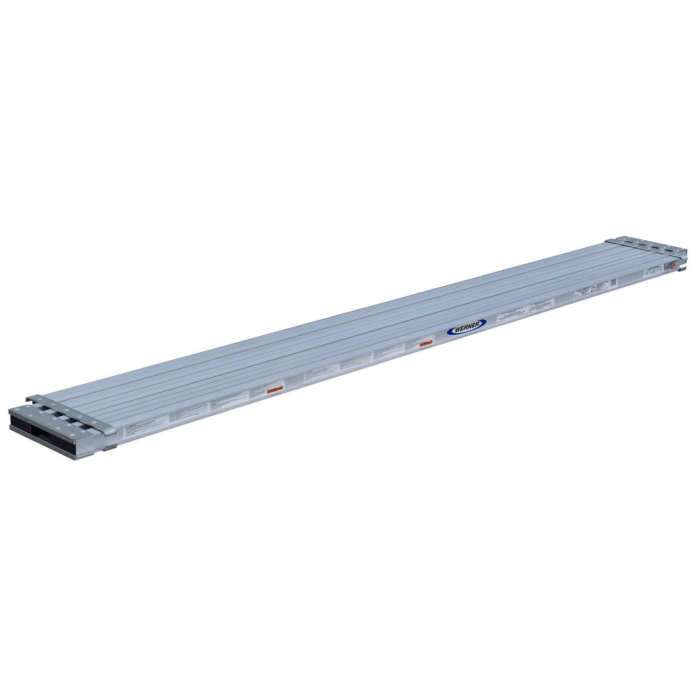

The PA200 series Aluminum Extension Planks are ideal for use on stepladders, telescoping multiladders, extension trestle ladders and extension and single straight ladders equipped with ladder jacks. Positive stops on the plank prevent overextending. Molded thermo-plastic spacer guides allow for easy open/close action. Made of 2in deep box section extrusions. Heavy end flange/handles for rigidity and ease of operation. Outer flange is open for ladder jack clamps. The extruded cross members are riveted with solid aluminum rivets. Locking mechanism sets the plank in 12in increments. 250 pound load capacity.
- Made of 2 in deep box section extrusions
- Extruded cross member riveted with solid aluminum rivets
- Positive stops prevent over-extending
- Outer flange open for ladder jack clamps
- Locking mechanism sets the plank in 12 in increments
- Molded thermo-plastic spacer guides for easy open/close action
- Heavy end flange/handles for rigidity and ease of operation
- For use on stepladders, telescoping multiladders, extension trestle ladders and extension and single ladders equipped with ladder jacks
- PA206
- PA210
- PA208
Brand | Werner |
---|---|
UPC | 051751016505 |
Manufacturer Part Number | PA210 |
Duty Rating/Sq Ft | 50 lbs |
Person Capacity | 1 |
Load Capacity | 250 lbs |
Approx. Cu. Ft. Per Unit | 4.32 |
Material | Aluminum |
Approx. Width | 14 in |
Side Rail Length | 10 ft to 17 ft |
Approx. Shipping Wt. Lbs. | 56.5 |
Certifications | ANSI A10.8 (2001); OSHA |
Inner Rails | 1-1/8 in x 2 in |
Outer Flanged Rails | 1-7/8 in x 2 in |
