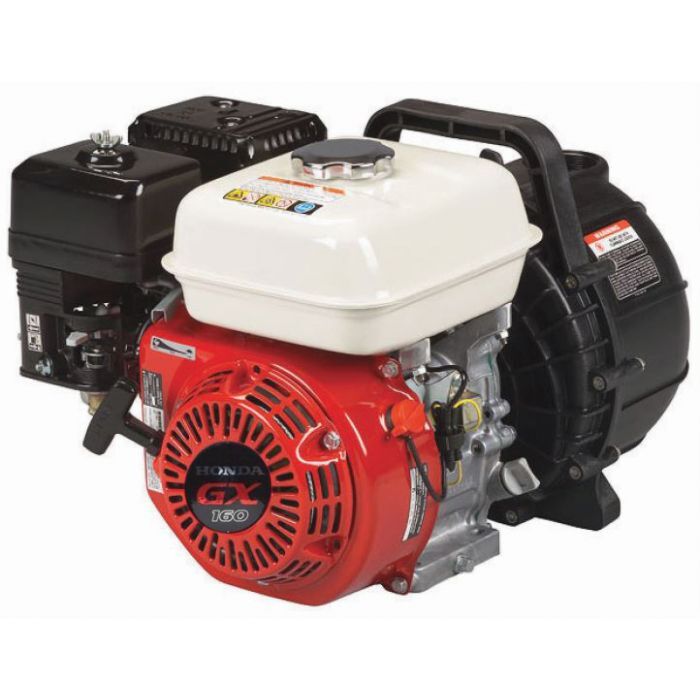

Pacer's S Series self-priming centrifugal pumps are light-weight and chemically resistant for general service on water, salt water, waste water, mild acids and bases. This is our most popular pump across multiple markets. They feature stainless steel internal fasteners, Viton®, EPDM or Buna O-ring with stainless steel external fasteners. There is a non-metallic option which minimizes solution contact with internal metal parts. The pumps are molded of tough, glass-reinforced polyester, polypropylene or Ryton®. Polyester models are available with or without lined volute for abrasion resistance. Pacer's unique Protek system is designed to physically separate the pump from the engine. This provides you with maximum engine protection, even against catastrophic seal failure. Available as a prebuilt option from the factory or as a retrofit kit to upgrade your current model.
| Brand | Pacer Pumps |
|---|---|
| UPC | 095616122406 |
| Store Location (Lititz, PA) | Aisle 07, Section M4 |
| Package Length (in) | 21.00" |
| Package Width (in) | 15.00" |
| Package Height (in) | 14.00" |
| Manufacturer Part Number | P5812U4E5HCPRO |
| Type | Self-Priming |
| HP Rating | 5.5 hp |
| Inlet Connection Size | 2" |
| Outlet Connection Size | 2" |
| Flow Rate | 200 gpm |
| Maximum Pressure | 56 psi |
| Maximum Head | 130 ft |
| Motor Type | 4-Stroke |
| Housing Material | Glass Reinforced Polyester |
