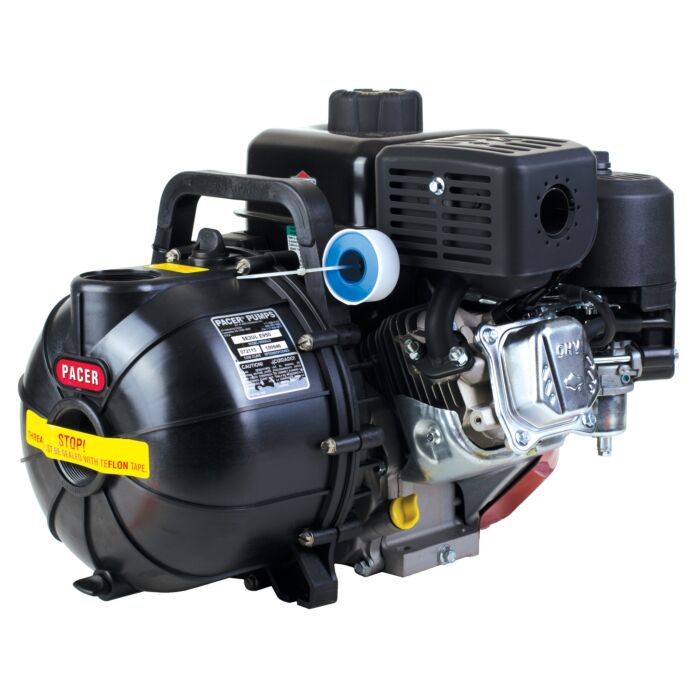

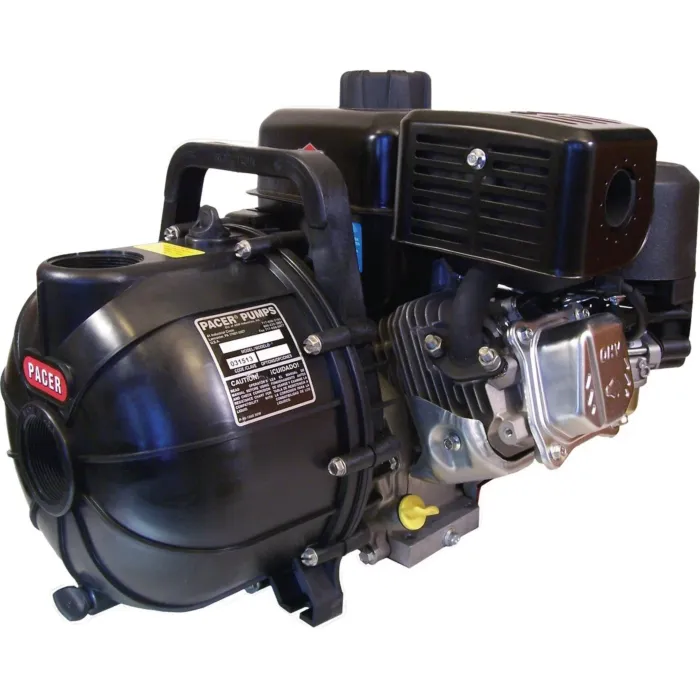

Pacer's S Series self-priming centrifugal pumps are light-weight and chemically resistant for general service on water, salt water, waste water, mild acids and bases. This is our most popular pump across multiple markets. They feature stainless steel internal fasteners, Viton®, EPDM or Buna O-ring with stainless steel external fasteners. There is a non-metallic option which minimizes solution contact with internal metal parts. The pumps are molded of tough, glass-reinforced polyester, polypropylene or Ryton®. Polyester models are available with or without lined volute for abrasion resistance.
- Stainless steel or non-metallic fasteners for resistance to chemical attack
Brand | Pacer Pumps |
---|---|
UPC | 095616129504 |
Store Location (Lititz, PA) | Aisle 06, Section M3 |
Package Length (in) | 18.20" |
Package Width (in) | 18.20" |
Package Height (in) | 15.20" |
Manufacturer Part Number | SE2UL E950 |
Flow Rate | 190 gpm |
HP Rating | 5.5 hp |
Includes | Check Valve |
Inlet Connection Size | 2 in |
Material | Glass Reinforced Polyester |
Maximum Head | 130 ft |
Maximum Pressure | 54.5 psi |
Maximum Suction Lift | 25 ft |
Motor Specifications | Briggs Stratton Engine 4-Cycle 205 cu-cm Engine Size |
Outlet Connection Size | 2 in |
