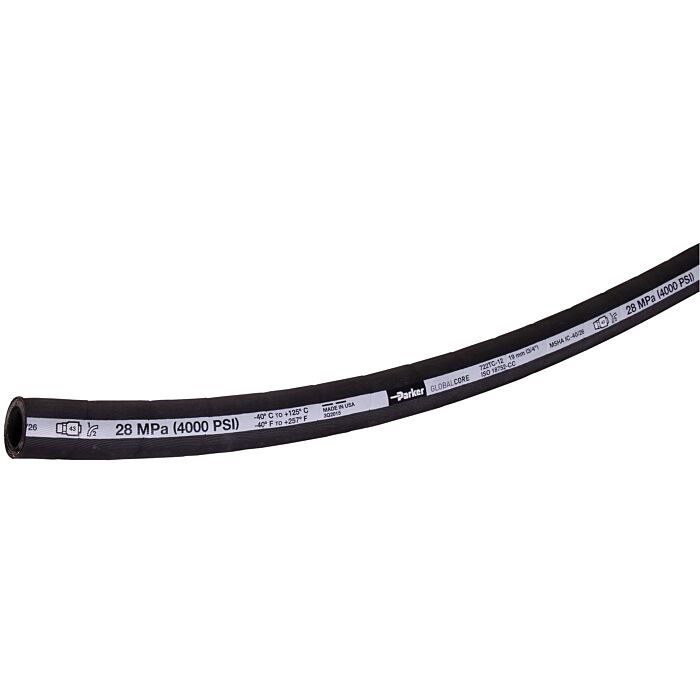

Parker's 722 hose, within the GlobalCore product line, was designed to deliver consistency and reliability with a constant working pressure of 4, 000 psi in all sizes. It is light, durable and easily bent making installation easier and quicker. The 722 Hose is designed, built and tested to the ISO 18752 performance specifications. Sizes range from 3/8 to 1 in diameter with different cover options available for various markets.
- Standard, ToughCover or SuperTough cover options to prevent abrasion
- Half SAE bend radius for ease of installation and low force to flex
- 4000 psi constant working pressure in all sizes
- 4-Spiral construction for longer life in high-impulse, heavy-duty cycle applications
Brand | Parker |
---|---|
Manufacturer Part Number | 722TC-12-RL |
Series | 722 Series |
Nominal Size | 3/4 in ID x 1.21 in OD |
Pressure Rating | 4000 psi |
Material | Synthetic Rubber |
Bend Radius | 4-3/4 in |
Temperature Rating | 257 deg F |
Media | Lubricants, Petroleum Hydraulic Fluids |
Standards | ISO 18752 |
Application | Petroleum based hydraulic fluids & lubricating oils |
