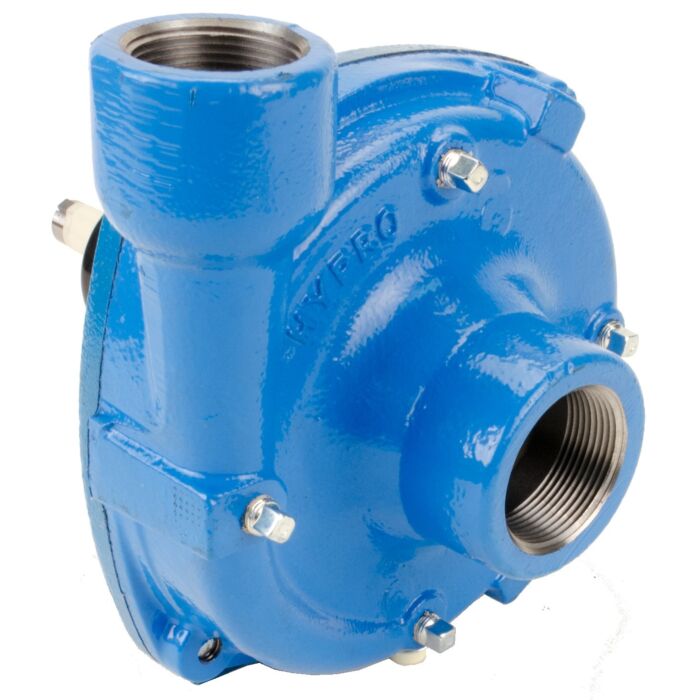

1-1/2" NPT Suction x 1-1/4" NPT Discharge Pedestal Centrifugal Pump, 5/8" Round Shaft (Silicon Carbide Shaft Seal)
SKU: 9203CB
$664.99
Features
Specifications
Downloads
Pentair Hypro centrifugal pumps are commonly used with self-propelled sprayers, large trailer sprayers, and construction equipment. The 9203C Series pedestal mount, direct drive pump can achieve up to 140 gpm (530 lpm) and 170 psi (lpm).
| Brand | Pentair |
|---|---|
| UPC | 734943005500 |
| Store Location (Lititz, PA) | Aisle 10 End Cap |
| Package Length (in) | 9.40" |
| Package Width (in) | 9.40" |
| Package Height (in) | 8.80" |
| Manufacturer Part Number | 9203C-B |
| Flow Rate | 140 GPM |
| Max Pressure | 170 PSI |
| Max RPM | 6,000 |
| Shaft Size | 5/8" |
| Suction Port | 1-1/2" NPT |
| Discharge Port | 1-1/4" NPT |
| Seal Material | Silicon Carbide |
| Impeller | Nylon |
| Sub Brand | Hypro |
