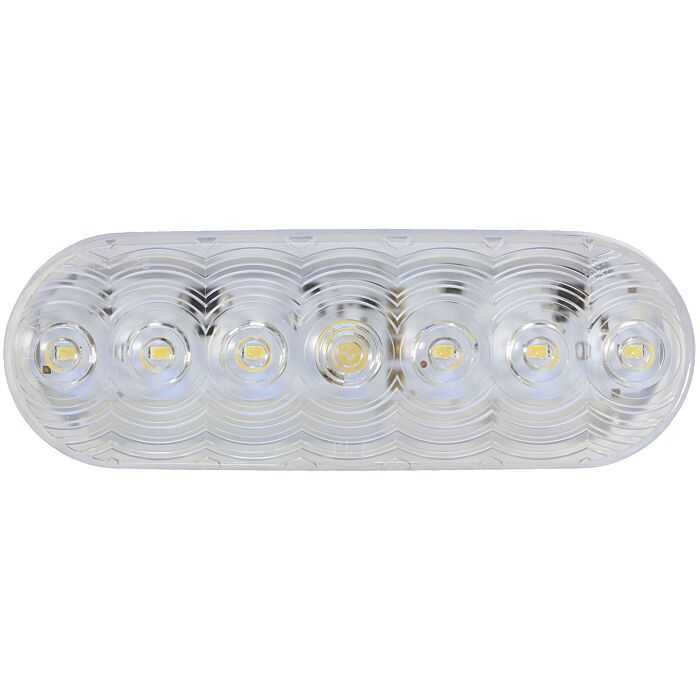

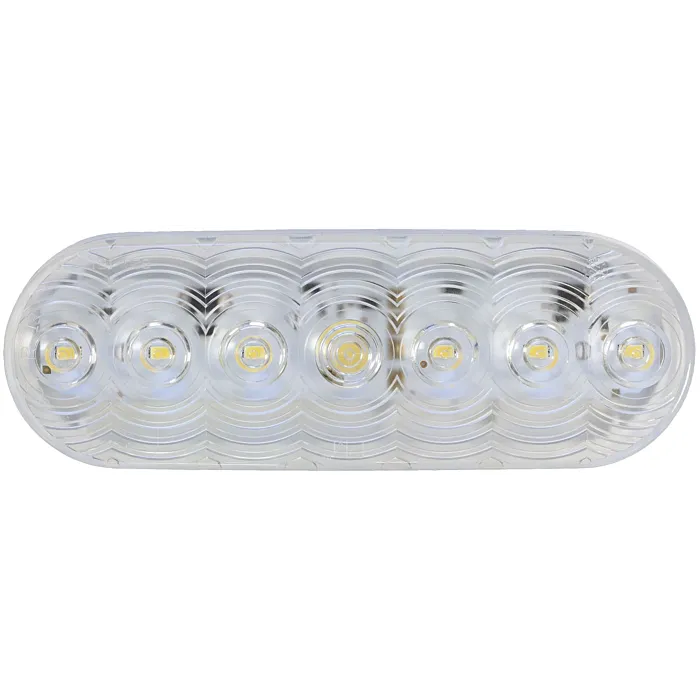

16 V LED White Oval Back-Up Light
SKU: 820C7
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$18.49
Features
Specifications
Back-Up Light, Oval, 16 V, 7 Lamps, LED Lamp, White Light, Electrical Connection: AMP, Grommet Mount, Clear Lens, 1.45 in W x 6.5 in L x 2.31 in H
- 7 diodes
- Defender harness & lighting system approved
- Lumenx® lens and circuitry
- Voltage Regulated
- A single light meets FMVSS 108 requirements when properly mounted
- AMP-compatible connector integrated into housing
- 823-7 has flange welded to light, forming a single unit
- 9-16 volt operating range
- 823CTL-7 version has integral narrower flange with recessed lens and two mounting holes positioned at ends for narrower rail applications
- Regulated design provides voltage protection and consistent light output over a wide voltage range
- Meets FMVSS 108 requirements in horizontal, vertical or any 360 deg position
- 820 kit includes light, grommet and 817-48 plug
- 823 kit includes light and 817-48 plug
| Brand | Peterson |
|---|---|
| UPC | 044464993225 |
| Store Location (Lititz, PA) | Aisle 14, Section M3 |
| Package Length (in) | 4.50" |
| Package Width (in) | 6.75" |
| Package Height (in) | 6.50" |
| Manufacturer Part Number | 820C-7 |
| Type | Oval |
| Voltage Rating | 16 V |
| Number of Lamps | 7 |
| Lamp Type | LED |
| Light Color | White |
| Electrical Connection Type | AMP |
| Mounting Type | Grommet |
| Color | Clear Lens |
| Dimensions | 1.45 in W x 6.5 in L x 2.31 in H |
