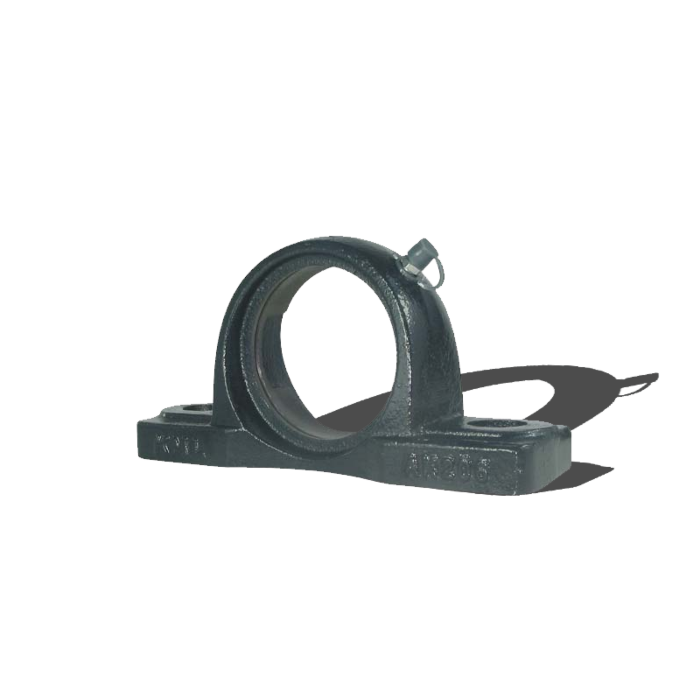

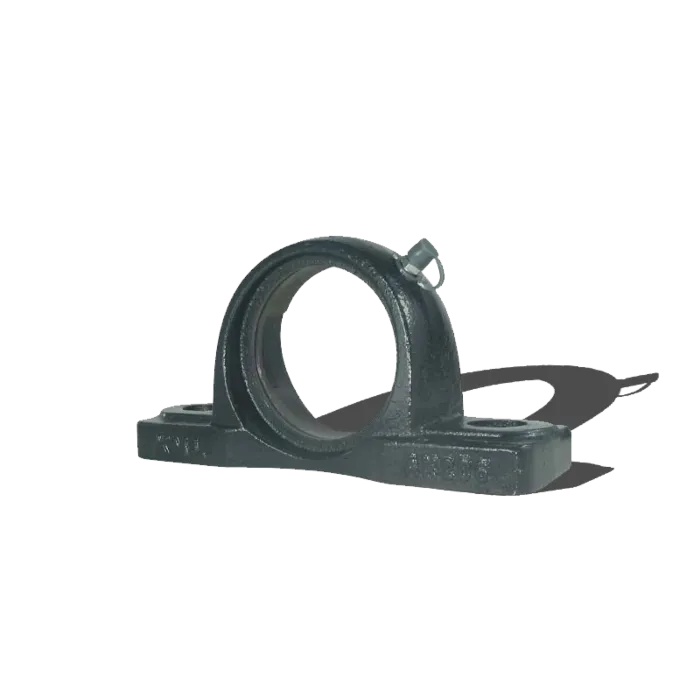

62 mm 160 mm Cast Iron Low Base Pillow Block Housing
SKU: AK206KML
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$13.15
Features
Specifications
Pillow Block Housing, Low Base, Series: AK, 62 mm Inside Dia, 2-Bolt Mount, 36.7 mm Base to Bore Centerline, 160 mm Overall Length, 79 mm Overall Height, 44 mm Overall Width, Ball Compatible Bearing, 121 mm Bolt Center-to-Center Length, Cast Iron, Uncoated
| Brand | KML |
|---|---|
| Store Location (Lititz, PA) | Aisle 09, Section W2 |
| Package Length (in) | 7.20" |
| Package Width (in) | 2.40" |
| Package Height (in) | 4.20" |
| Manufacturer Part Number | AK206 |
| Type | Low Base |
| Series | AK |
| Inside Diameter | 62 mm |
| Mounting Type | 2-Bolt |
| Base to Bore Centerline | 36.7 mm |
| Overall Length | 160 mm |
| Overall Height | 79 mm |
| Overall Width | 44 mm |
| Compatible Bearing Type | Ball |
| Bolt Center-to-Center Length | 121 mm |
| Material | Cast Iron |
| Finish | Uncoated |
