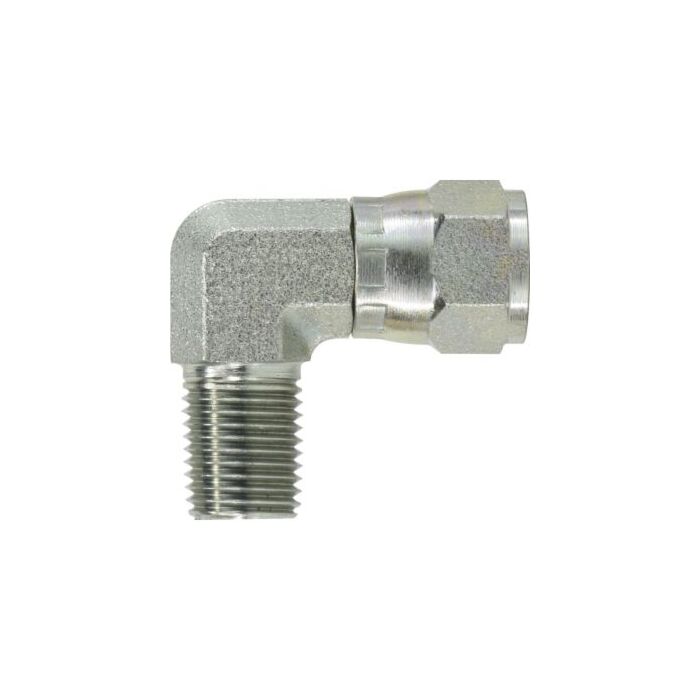

Pipe to JIC Swivel Elbow 90° MPT X FJIC

Pipe to JIC Swivel Elbow 90° 1/4 MPT x 1/4 FJIC

Pipe to JIC Swivel Elbow 90° 1/4 MPT x 3/8 FJIC

Pipe to JIC Swivel Elbow 90° 3/8 MPT x 3/8 FJIC

Pipe to JIC Swivel Elbow 90° 3/8 MPT x 1/2 FJIC

Pipe to JIC Swivel Elbow 90° 1/2 MPT x 3/8 FJIC

Pipe to JIC Swivel Elbow 90° 1/2 MPT x 1/2 FJIC

Pipe to JIC Swivel Elbow 90° 1/2 MPT x 5/8 FJIC

Pipe to JIC Swivel Elbow 90° 3/4 MPT x 3/4 FJIC

Pipe to JIC Swivel Elbow 90° 1 MPT x 1 FJIC

SKU: 6501-
SKU: 6501X0404
SKU: 6501X0406
SKU: 6501X0606
SKU: 6501X0608
SKU: 6501X0806
SKU: 6501X0808
SKU: 6501X0810
SKU: 6501X1212
SKU: 6501X1616
Select options to see availability
Lititz, PA
M-F 6:30am-8:30pm; Sat 6:30am-4:00pm
location-pin All Locations caret-down

Options

This product must be picked up in-store.
Features chevron-down chevron-up
JIC Swivel to Pipe Elbow 90° 1/4 MPT x 1/4 FJIC
  • RoHS compliant CR6 free (clear zinc trivalent) plating
  • PCC world-class quality process
JIC Swivel to Pipe Elbow 90° 1/4 MPT x 1/4 FJIC
  • RoHS compliant CR6 free (clear zinc trivalent) plating
  • PCC world-class quality process
JIC Swivel to Pipe Elbow 90° 1/4 MPT x 3/8 FJIC
  • RoHS compliant CR6 free (clear zinc trivalent) plating
  • PCC world-class quality process
JIC Swivel to Pipe Elbow 90° 3/8 MPT x 3/8 FJIC
  • RoHS compliant CR6 free (clear zinc trivalent) plating
  • PCC world-class quality process
JIC Swivel to Pipe Elbow 90° 3/8 MPT x 1/2 FJIC
  • RoHS compliant CR6 free (clear zinc trivalent) plating
  • PCC world-class quality process
JIC Swivel to Pipe Elbow 90° 1/2 MPT x 3/8 FJIC
JIC Swivel to Pipe Elbow 90° 1/2 MPT x 1/2 FJIC
  • RoHS compliant CR6 free (clear zinc trivalent) plating
  • PCC world-class quality process
JIC Swivel to Pipe Elbow 90° 1/2 MPT x 5/8 FJIC
  • RoHS compliant CR6 free (clear zinc trivalent) plating
  • PCC world-class quality process
JIC Swivel to Pipe Elbow 90° 3/4 MPT x 3/4 FJIC
  • RoHS compliant CR6 free (clear zinc trivalent) plating
  • PCC world-class quality process
JIC Swivel to Pipe Elbow 90° 1 MPT x 1 FJIC
  • RoHS compliant CR6 free (clear zinc trivalent) plating
  • PCC world-class quality process
Specifications chevron-down chevron-up
Store Location (Lititz, PA) Aisle 06, Section X2
Package Length (in) 1.20"
Package Width (in) 2.60"
Package Height (in) 0.20"
Type 90 deg
Tube OD 1/4 in
Thread Size 1 1/4 in-18 MNPTF
Thread Size 2 7/16 in-20 FJIC Swivel
Size 1/4 in
Nut Hex Size 1 9/16 in
Length 1 1.09 in
Length 2 1.05 in
Flats 9/16 in
Pressure Rating 6000 psi
Material Carbon Steel
Store Location (Lititz, PA) Aisle 06, Section X2
Package Length (in) 1.20"
Package Width (in) 2.60"
Package Height (in) 0.20"
Type 90 deg
Tube OD 1/4 in
Thread Size 1 1/4 in-18 MNPTF
Thread Size 2 7/16 in-20 FJIC Swivel
Size 1/4 in
Nut Hex Size 1 9/16 in
Length 1 1.09 in
Length 2 1.05 in
Flats 9/16 in
Pressure Rating 6000 psi
Material Carbon Steel
Store Location (Lititz, PA) Aisle 06, Section X2
Package Length (in) 0.40"
Package Width (in) 1.40"
Package Height (in) 1.40"
Type 90 deg
Tube OD 1/4 in
Thread Size 1 1/4 in-18 MNPTF
Thread Size 2 9/16 in-18 FJIC Swivel
Size 3/8 in
Nut Hex Size 1 11/16 in
Length 1 1.06 in
Length 2 1.27 in
Flats 9/16 in
Pressure Rating 5000 psi
Material Carbon Steel
Store Location (Lititz, PA) Aisle 06, Section X2
Package Length (in) 1.60"
Package Width (in) 1.60"
Package Height (in) 0.20"
Type 90 deg
Tube OD 3/8 in
Thread Size 1 3/8 in-18 MNPTF
Thread Size 2 9/16 in-18 FJIC Swivel
Size 3/8 in
Nut Hex Size 1 11/16 in
Length 1 1.22 in
Length 2 1.26 in
Flats 3/4 in
Pressure Rating 5000 psi
Material Carbon Steel
Store Location (Lititz, PA) Aisle 06, Section X2
Package Length (in) 1.20"
Package Width (in) 2.60"
Package Height (in) 0.40"
Type 90 deg
Tube OD 3/8 in
Thread Size 1 3/8 in-18 MNPTF
Thread Size 2 3/4 in-16 FJIC Swivel
Size 1/2 in
Nut Hex Size 1 7/8 in
Length 1 1.22 in
Length 2 1.34 in
Flats 3/4 in
Pressure Rating 5000 psi
Material Carbon Steel
Store Location (Lititz, PA) Aisle 06, Section X2
Package Length (in) 1.20"
Package Width (in) 2.60"
Package Height (in) 0.20"
Type 90 deg
Thread Size 1 9/16 in-18 MNPT
Thread Size 2 1/2 in-14 FJIC
Material Steel
Store Location (Lititz, PA) Aisle 06, Section X2
Package Length (in) 1.80"
Package Width (in) 2.60"
Package Height (in) 0.20"
Type 90 deg
Tube OD 1/2 in
Thread Size 1 1/2 in-14 MNPTF
Thread Size 2 3/4 in-16 FJIC Swivel
Size 1/2 in
Nut Hex Size 1 7/8 in
Length 1 1.47 in
Length 2 1.48 in
Flats 7/8 in
Pressure Rating 5000 psi
Material Carbon Steel
Store Location (Lititz, PA) Aisle 06, Section X2
Package Length (in) 2.00"
Package Width (in) 3.00"
Package Height (in) 0.60"
Type 90 deg
Tube OD 1/2 in
Thread Size 1 1/2 in-14 MNPTF
Thread Size 2 7/8 in-14 FJIC Swivel
Size 5/8 in
Nut Hex Size 1 1 in
Length 1 1.47 in
Length 2 1.62 in
Flats 7/8 in
Pressure Rating 5000 psi
Material Carbon Steel
Store Location (Lititz, PA) Aisle 06, Section X2
Package Length (in) 2.40"
Package Width (in) 3.00"
Package Height (in) 0.60"
Type 90 deg
Tube OD 3/4 in
Thread Size 1 3/4 in-14 MNPTF
Thread Size 2 1-1/16 in-12 FJIC Swivel
Size 3/4 in
Nut Hex Size 1 1-1/4 in
Length 1 1-1/2 in
Length 2 1.68 in
Flats 1-1/16 in
Pressure Rating 4000 psi
Material Carbon Steel
Store Location (Lititz, PA) Aisle 06, Section X2
Package Length (in) 3.40"
Package Width (in) 3.60"
Package Height (in) 1.00"
Type 90 deg
Tube OD 1 in
Thread Size 1 1 in-11.5 MNPTF
Thread Size 2 1-5/16 in-12 FJIC Swivel
Size 1 in
Nut Hex Size 1 1-1/2 in
Length 1 1.97 in
Length 2 2.01 in
Flats 1-5/16 in
Pressure Rating 3000 psi
Material Carbon Steel
