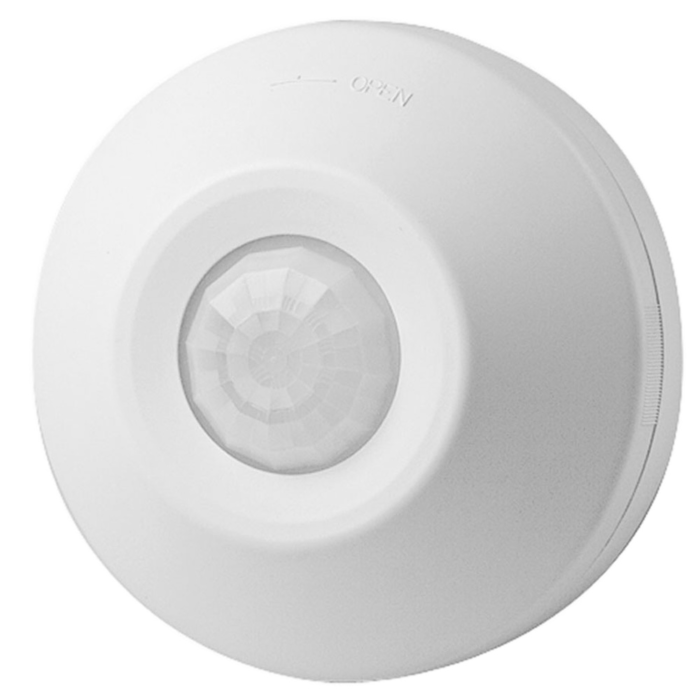

Occupancy Sensor & Switching Relay, Self-Contained, PIR, Ceiling Mounted, 530SF, 277V
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
- Leviton’s self-contained passive infrared ceiling occupancy sensor is the cost-effective choice for commercial and institutional installations, where installation of the recessed ceiling unit is difficult, inconvenient or costly. Available in 120V, 220V and 277V versions, the ODC0S-I is ideal for storage areas, small bathrooms, copy rooms, mop/sink closets or small spaces without wall switches. The self-contained ceiling sensor does not require an external control unit for power or switching the load on and off. LED Ready. Do you have a question about an occupancy sensor or vacancy sensor?
| Brand | Leviton |
|---|---|
| UPC | 078477881873 |
| Store Location (Lititz, PA) | Aisle 09, Section D2 |
| Package Length (in) | 17.00" |
| Package Width (in) | 10.25" |
| Package Height (in) | 10.25" |
| Manufacturer Part Number | ODC0S-027-I7W |
| Listings | UL Listed and CSA Certified, can be used to comply with Title 24, Part 6 occupancy sensing requirements, complies with FCC regulations |
| Coverage (Sq.Ft.) | 530 |
| Pattern | 360° |
| Mounting Type | Ceiling Mount |
| Size | Width 4.3" (109.2mm), Height above surface 2.15" (54.6mm) |
| Country of Origin | Please Contact Customer Service |
| RoHS Compliant | False |
| Application | Storage Areas|Copy Rooms|Small Bathrooms|Utility Closets|Retrofit|Small Spaces without wall switches |
| Color | White |
| Grade | Commercial |
| Mounting | Ceiling Mount |
| Product Line | ODC0S |
| Sensor Technology | Passive Infrared (PIR) |
| Sensor Type | Occupancy |
| Title 24 Compliant | Yes |
| Warranty | 5-Year Limited |
| Operating Temperature | 32° to 122°F (0° to 50°C) |
| Relative Humidity | 20% to 90% non-condensing |
| Storage Temperature Range | 14° to 185°F (-10° to 85°C) |
| Frequency | 60Hz |
| Load Rating | Incandescent: 1000 Watts, Fluorescent: 2700 VA |
| Neutral Wire Connection | Required |
| Power Consumption | 1.89 Watts |
| Voltage | 277 VAC |
| Wiring | Line - black, Neutral - white, Load - blue |
| Product Type | Occupancy Sensor |
