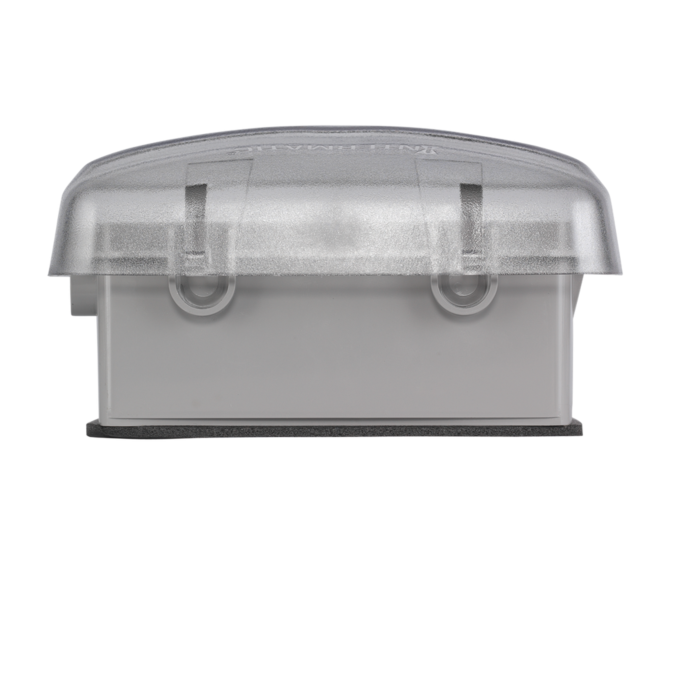

Plastic In-Use Weatherproof Covers are easy to install and include adhered gasket, mounting screws, base, cover assembly and inserts to meet the needs of a variety of applications.
- Complies with 2020 NEC Article 314.15 for damp and wet locations
- UL Certified for Type 3R outdoor enclosures
- Meets requirements for cold impact testing: -60° F (-51° C)
- Heavy-duty UV stabilized polycarbonate cover, mounting base and inserts
- 1⁄8" (3 mm) thick, pre-adhered neoprene gasket with slits for mounting screws
- Lockable hasp: All models accept up to 1⁄4" (6 mm) dia shank, except WP3100C & WP3103C accept up to 1⁄8" (3 mm) dia shank
- Three inserts provided with all models that allow each model to meet multiple installations (up to 16 configurations)
- Mounts vertically or horizontally
- Warranty: 1-year limited
- 2020 NEC Article 314.15
- CEC Article 26-702
Brand | Intermatic |
---|---|
UPC | 078275106093 |
Store Location (Lititz, PA) | Aisle 09, Section C6 |
Package Length (in) | 5.76" |
Package Width (in) | 4.07" |
Package Height (in) | 4.07" |
Manufacturer Part Number | WP3100C |
Country of Origin | Mexico |
Product Height | 5.75 in; 146.6 mm |
Product Depth | 2.75 in; 70 mm |
Product Weight | 0.4 lbs; 0.181kg |
Max cord size | (2) #14 AWG or (1) #12 AWG |
Warranty Period | 1-Year limited |
Number Of Inserts Included | 3 |
Insert Types Included | WP17 |
Hinge Direction | Vertical/Horizontal |
Lockable Hasp Max Diameter | 1/8 in |
Color | Clear |
Cold Impact Testing Temperature C | -51 |
Cold Impact Testing Temperature F | -60 |
Weatherproof Gasket | 3mm |
Applications | Receptacle Protection |
Weatherproof Cover Material | UV Stabilized Plastic |
Accepted Cord Size Max | 2x14 AWG; 1x12 AWG |
Enclosure Type | Outdoor type 3R plastic |
Product Weight Kg | 0.181 |
Product Weight Lbs | 0.4 |
RoHS Certification | No |
PDF Standards And Certifications | cULus |
Material | UV Stabilized Polycarbonate |
Box Type | Single |
UL Certification | cULus |
