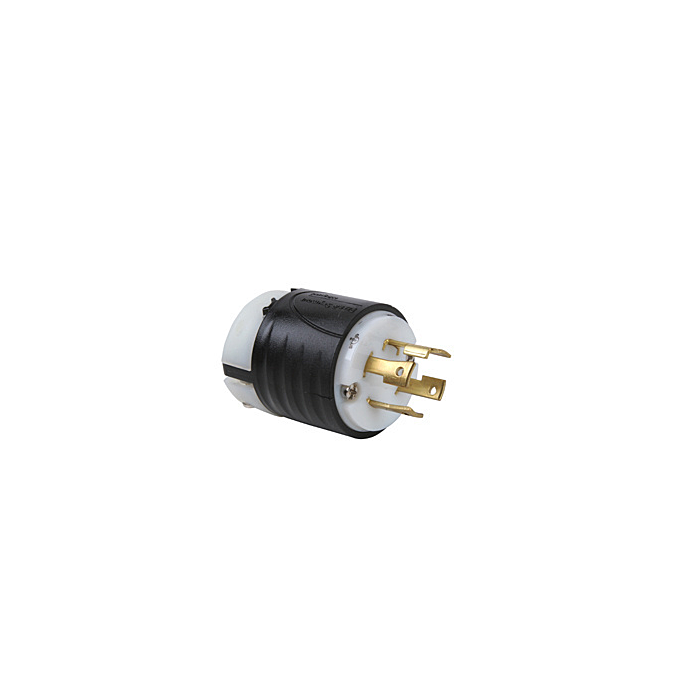

30A NEMA L1630 Plug - Black Back, White Front Body
SKU: EL1630P
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$32.99
Features
Specifications
Downloads
30A NEMA L1630 Plug - Black Back, White Front Body
- Quick-thread assembly screws and cord-grip screws come backed-out, ready-to-wire.
- Industrial-strength, brass alloy plug blades and connector contacts resist heat rise, provide excellent conductivity.
- Raised ribs provide non-slip gripping profile for turning to lock and unlock.
- Double dovetail design provides superior protection against cord pull-out forces.
- Impact- and corrosion-resistant durable nylon 6 shell material.
- Rounded back contour reduces snags and hang-ups on the job site.
- Scallop shell design provides non-slip gripping surface for insertion and withdrawal.
- Visible stamped NEMA configuration and device rating.
- New-design external cord grips provide visible assurance of safe and proper cord retention.
- Integral flexible rubber cord grommet conforms to and seals around SO cord to provide protection from oils, water, or chips entering wiring chamber.
- cULus Listed
| Brand | Pass & Seymour |
|---|---|
| UPC | 785007163049 |
| Store Location (Lititz, PA) | Aisle 08, Section C2 |
| Package Length (in) | 2.20" |
| Package Width (in) | 2.20" |
| Package Height (in) | 2.57" |
| Manufacturer Part Number | L1630P |
| Length | 2.57 in |
| Width | 2.2 in |
| Color | Black |
| Country of Origin | Mexico |
| Product Line | Pass & Seymour |
| Type | Plug |
| Flanged | No |
| Amperage | 30.0 A |
| Standard | UL 498 |
| Voltage | 480.0 V |
| Features | Locking |
| NEMA Rating | L16-30P |
| Number of Wires | 3.0 |
| Warranty Type | 1-Year |
| Indoor/Outdoor | Indoor |
| Connector Style | Locking |
| Number of Poles | Double Pole |
| Application Sector | Industrial |
| Terminal Accommodation | #4 AWG |
| NEMA Configuration Code | L16-30P |
| Special Features | Locking Device, impact resistant |
