Simpson Strong-Tie

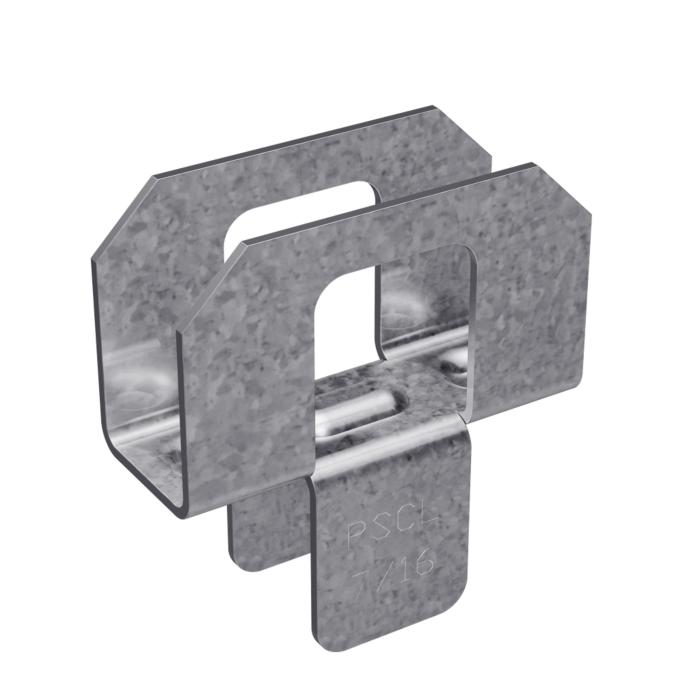

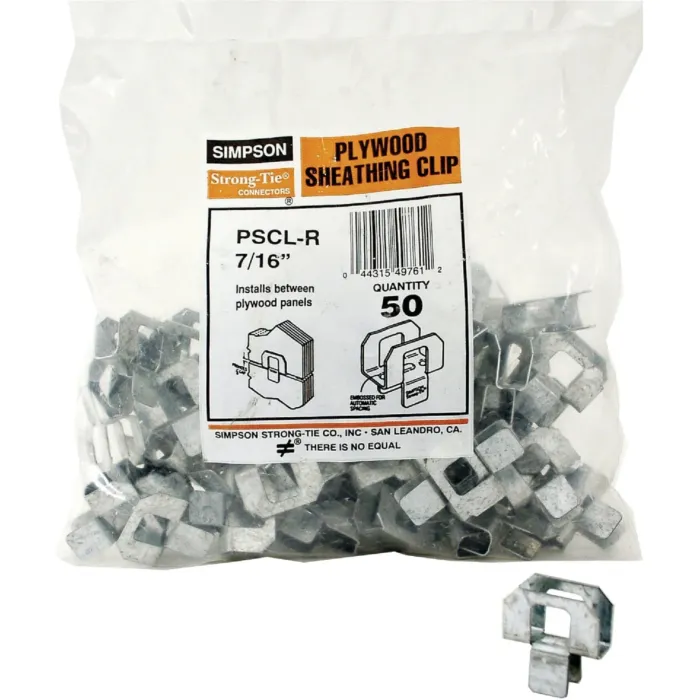

PSCL 20 Gauge Panel Sheathing Clip for 7/16 in. Plywood

SKU: PSCL716R50
Lititz, PA
M-F 6:30am-8:30pm; Sat 6:30am-4:00pm
location-pin All Locations caret-down
Lititz Your Store 2 in stock
This product must be picked up in-store.
Features chevron-down chevron-up
The PSCL is designed to brace unsupported sheathing edges when sheathing meets edge to edge without a rafter for support. This light sheathing clip provides a 1/8-in. gap to address shrinkage and expansion of roof sheathing. Inserted over the edges of adjacent plywood panels, the PSCL reduces deflection and keeps panels even to maintain a level plane on the structure.
  • For 7/16-in. panel thickness
  • Quick installation, no nails required
  • Keeps panels even for a level structural plane
  • Provides the 1/8-in. space between plywood panels as recommended by the American Plywood Association
  • Use the same size sheathing clip as the panel thickness
  • Made from 20-gauge steel
  • Galvanized (G90) for corrosion resistance
Specifications chevron-down chevron-up
Brand Simpson Strong-Tie
UPC 044315497612
Store Location (Lititz, PA) Aisle 30, Section S3
Manufacturer Part Number PSCL 7/16-R50
Country of Origin United States
Depth 1-1/4"
Downloads chevron-down chevron-up

download  Simpson Strong-Tie 2024 Catalog.pdf
