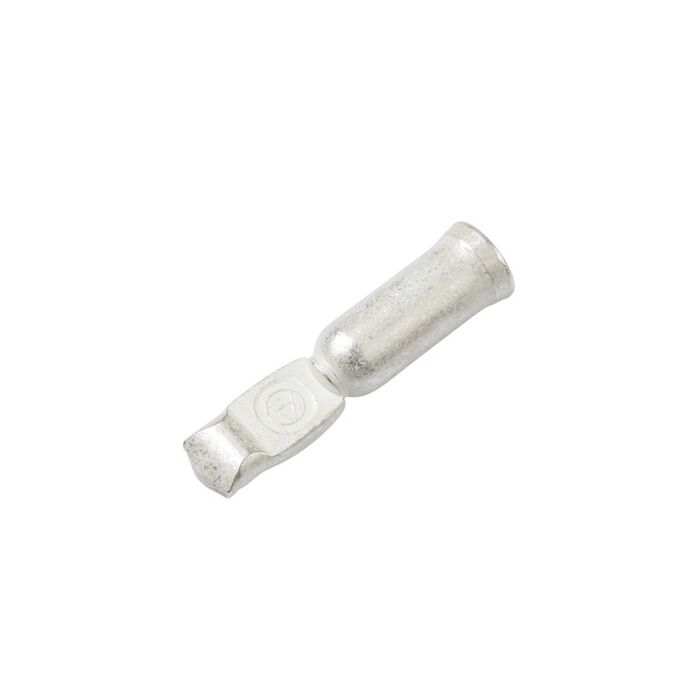

600 V 50/75 A 8 AWG Battery Cable Contact
SKU: DC5615
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$5.29
Features
Specifications
Anderson SB® & Powerpole® contacts are made of silver-plated solid copper to complete the connection and offer low resistance with superior conductivity. The contacts feature a self-cleaning design that resists arcing by keeping conductive surfaces clear of corrosion. The spring loaded, contoured contacts are for use to 600 volts continuous AC or DC operation.
- Manufactured of silver-plated solid copper
- Self-cleaning design that resists arcing by keeping conductive surfaces clear of corrosion
- Used for 600 volts continuous AC or DC operation
- Flared and heat treated contact barrels
- Offering up to 10000 mating cycles
- (2) 50 A SB® housings or 75 A Powerpole® housings and (4) contacts required for a complete connection
| Store Location (Lititz, PA) | Aisle 08, Section D6 |
|---|---|
| Package Length (in) | 1.25" |
| Package Width (in) | 0.25" |
| Package Height (in) | 0.38" |
| Series | Anderson SB® & Powerpole® |
| Voltage Rating | 600 V |
| Current Rating | 50/75 A |
| Wire Gauge | 8 AWG |
| Material | Solid Copper |
| Finish | Silver Plated |
