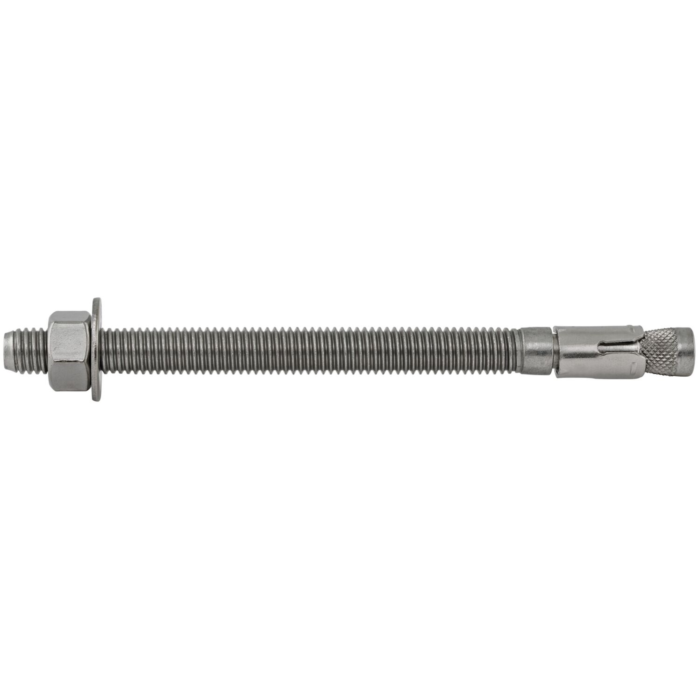

The power-stud+ SD4 and power-stud+ SD6 anchors are fully threaded, torque controlled, stainless steel wedge expansion anchors which are designed for consistent performance in cracked and untracked concrete. Suitable base materials are normal-weight and sand-lightweight concrete. The anchor is manufactured with a stainless steel body and expansion clip. Nut and washer are included.
- Knurled mandrel design provides consistent performance in cracked concrete and helps prevent galling during service life.
- Nominal drill bit size is the same as the anchor diameter
- Anchor can be installed through standard clearance fixture holes
- Length ID code and identifying marking stamped on head of each anchor
- Anchor design allows for follow-up expansion after setting under tensile loading
- Corrosion resistant stainless steel anchors
| Brand | Dewalt Anchors |
|---|---|
| Store Location (Lititz, PA) | Aisle 12, Section C2 |
| Package Length (in) | 1.00" |
| Package Width (in) | 7.00" |
| Package Height (in) | 0.20" |
| Manufacturer Part Number | 7326SD4-PWR |
| Country of Origin | China |
| Weight | 0.382 lbs |
| Product Type | WEDGE BOLT |
| Product Finish | Silver |
| Product Primary Material | Stainless steel |
| Connection Design | Concrete & Masonry |
| Design Type | Hex |
| Fastener Length | 7.0 |
| Fastener Plating | Stainless Steel |
| Head Style | Hex Nut |
| Thread Type | Standard |
