Pressure Switch 30-50 psi
SKU: 80785
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$36.99
Features
Specifications
Downloads

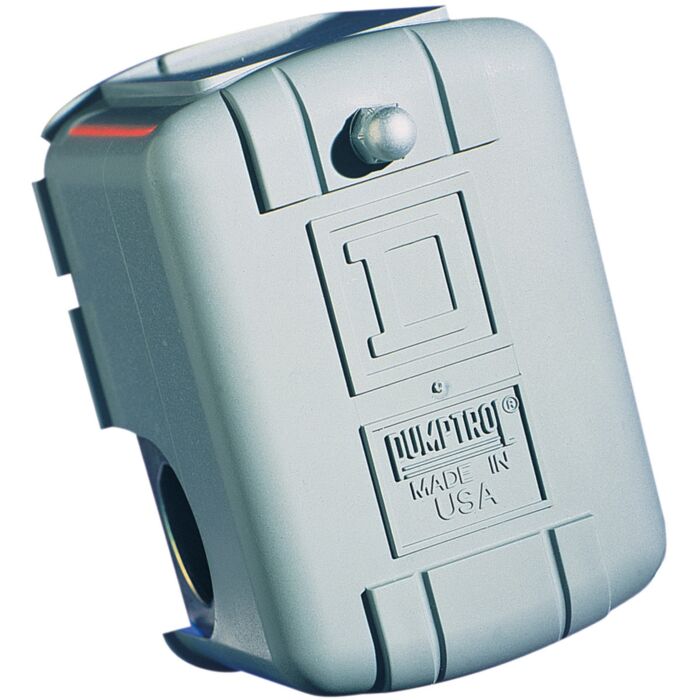

Pumptrol 9013FSG standard water pump pressure switches are suitable for all types of pumps, including jets, submersible, and reciprocating. 9013FSG water pump pressure switches are used to control electrically driven water pumps. They are diaphragm actuated. The pressure switch has an adjustable differnetial. The pressure settings have been factory set at 30 to 50 psi. Contacts open on rising pressure. This pressure switch has contacts that have a poly phase rating of 1 horsepower at 460/575 VAC 60 Hz. Pressure switch has a 1/4 inch NPSF internal pressure connection. Switch is in a NEMA 1 enclosure. These water pump pressure switches are UL Listed and CSA certified as commercial control equipment. The FTG, FSG and FYG are electromechanical pressure switches for power circuits. They are used to control the pressure of water, up to 10.5 bar. The FSG and FYG electromechanical pressure switches with an adjustable differential, for regulation between 2 thresholds.
- Adjustable cut-in/out
| Brand | Schneider Electric |
|---|---|
| UPC | 047569807855 |
| Store Location (Lititz, PA) | Aisle 08, Section I3 |
| Package Length (in) | 6.80" |
| Package Width (in) | 4.40" |
| Package Height (in) | 4.00" |
| Manufacturer Part Number | FSG2J21CP |
| Contacts Type And Composition | 2 NC snap action |
| Pressure Sensor Type | electromechanical pressure sensor |
| Short-Circuit Protection | 20 A cartridge fuse gG |
| Range Of Product | Telemecanique Pressure sensors XM |
| Line Rated Current | 10 A 250 V AC EN 60730-1 |
| Pressure Switch Type Of Operation | regulation between 2 thresholds |
| Cable Entry | 2 cable entries with grommet |
| Local Display | without |
| Pressure Sensor Name | FSG |
| Fluid Connection Type | G 1/4 (female) ISO 228 |
| Electrical Connection | screw-clamp terminals 1 x 1...2 x 2 mm² |
| Controlled Fluid | fresh water 0-70 °C) || sea water 0-70 °C) |
| Setting | internal |
| Scale Type | adjustable differential |
| Electrical Circuit Type | power circuit |
| Repeat Accuracy | 2 % |
| Pressure Actuator | diaphragm |
| Height | 96 mm |
| Terminal Block Type | 4 terminals |
| Terminals Description Iso N°1 | (3-4)NC || (1-2)NC |
| Possible Differential Minimum At Low Setting | 1 bar |
| Possible Differential Minimum At Middle Setting | 1.1 bar |
| Possible Differential Maximum At Low Setting | 2.1 bar |
| Maximum Operating Rate | 10 cyc/mn |
| Adjustable Range Of Switching Point On Falling Pressure | 0.3-3.4 bar |
| Materials In Contact With Fluid | zinc plated steel || nylon 6/6 || nitrile |
| Motor Power Kw | 0.75 kW/1 hp at 110 V AC, 1 phase || 1.1 kW/1.5 hp at 110 V AC, 3 phase || 1.5 kW/2 hp at 230 V AC, 1 phase || 1.5 kW/2 hp at 400 V AC, 1 phase || 2.2 kW/3 hp at 230 V AC, 3 phase || 2.2 kW/3 hp at 400 V AC, 3 phase |
| Net Weight | 0.34 kg |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV EN/IEC 60947-1 |
| Electrical Durability | 100000 cycles 10 cyc/mn |
| Maximum Permissible Pressure - Per Cycle | 5.75 bar |
| [Ui] Rated Insulation Voltage | 500 V EN/IEC 60947-1 |
| Possible Differential Maximum At Middle Setting | 2.2 bar |
| Mechanical Durability | 1000000 cycles |
| Operating Position | any position |
| Enclosure Material | PS |
| Adjustable Range Of Switching Point On Rising Pressure | 1.4-4.6 bar |
| Possible Differential Minimum At High Setting | 1.2 bar |
| Width | 72 mm |
| Maximum Permissible Accidental Pressure | 8 bar |
| Depth | 102 mm |
| Possible Differential Maximum At High Setting | 2.3 bar |
| Destruction Pressure | 20 bar |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP111211EN |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Circularity Profile | ENVEOLI111210EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Ambient Air Temperature For Operation | 0-45 °C |
| Standards | EN/IEC 60730 || CE |
| Ip Degree Of Protection | IP20 conforming to EN/IEC 60529 |
| Ambient Air Temperature For Storage | -30-80 °C |
| Electrical Shock Protection Class | class I IEC 536 |
| Protective Treatment | TC |
