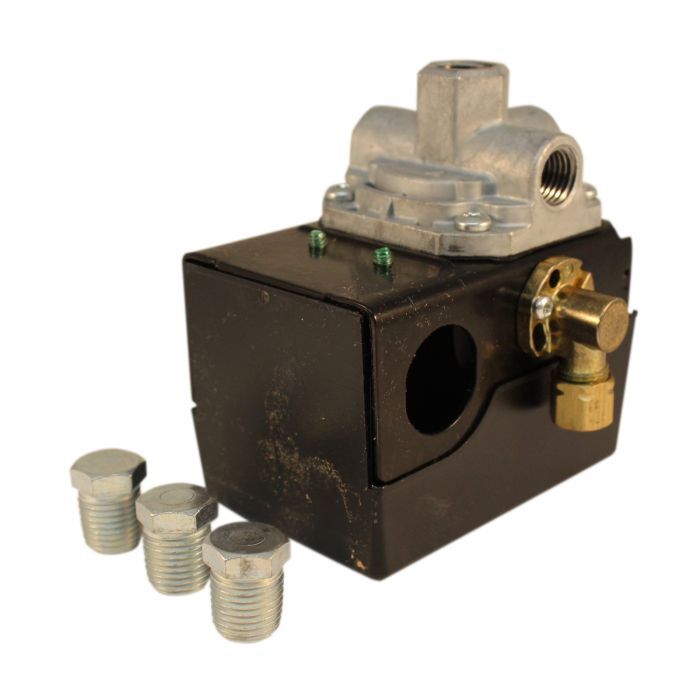

120 to 240 V 95 to 125 psi 2 to 5 hp Compressor Pressure Switch
SKU: MS1060
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$81.99
Features
Specifications
This universal pressure switch replaces pressure switches on compressors with up to 2 HP at 120V 1 phase, 3 HP at 240 V 1 phase or 5 HP at 240 V 3 phase. 3 HP at 240 V 1 phase. Offers a pressure range of 95-125 PSI. Combination terminals can be used with either quick connects or standard screw terminals. With four 1/4" FNPT ports complete with plugs, this pressure switch includes and auto off disconnect lever and rotating unloader for applications requiring these modifications. UL listed, CSA certified.
- (4) 1/4" female national thread pipe port manifold
| Brand | Milton |
|---|---|
| UPC | 030937307460 |
| Store Location (Lititz, PA) | Aisle 30, Section N1 |
| Package Length (in) | 6.40" |
| Package Width (in) | 5.60" |
| Package Height (in) | 2.80" |
| Manufacturer Part Number | S-1060 |
| Voltage Rating | 120 to 240 V |
| Pressure Rating | 95 to 125 psi |
| Power Rating | 2 to 5 hp |
| Phase | 1 or 3 |
