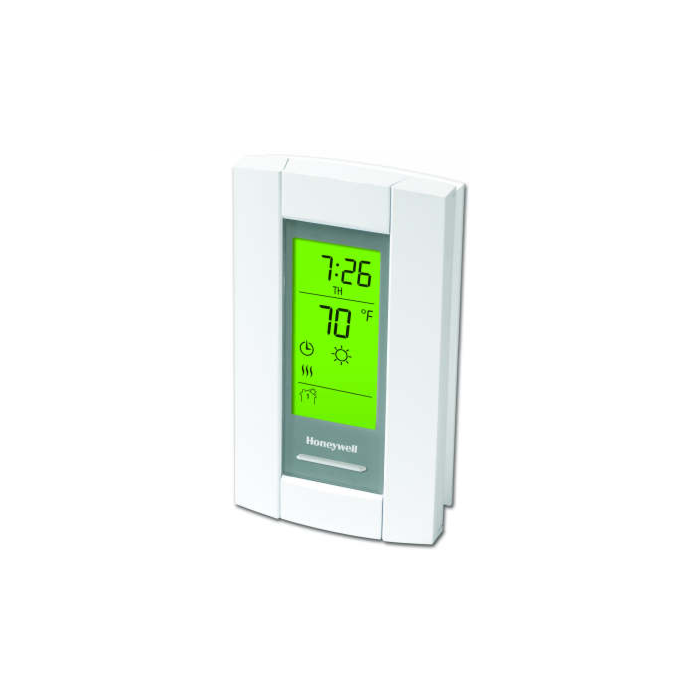

The LineVoltPRO™ programmable thermostat provides electronic control of 208/240 Vac resistive rated electric baseboard heaters, radiant ceiling heat, convectors and fan forced heaters.
- 7 day programmable - maintain the pre-set program schedule for up to 20% energy savings, or modify the schedule to fit your lifestyle.
- Electronic temperature control - precision of ±1 F saves up to an additional 10% on heating bills.
- Large, clear, backlit display - easy to read in various lighting conditions.
- Soundproofed for quiet operation - reduces the clicking noise commonly heard with conventional thermostats.
- On/Off or On/Standby switch allows you to turn the thermostat off at the end of the heating season.
- Early start - ensures programmed temperature is reached by programmed time.
- Heating indicator - at a glance confirmation that the heat is on.
- Maintenance free - no batteries required.
Brand | Honeywell |
---|---|
UPC | 085267262637 |
Store Location (Lititz, PA) | Aisle 05, Section D4 |
Package Length (in) | 5.00" |
Package Width (in) | 3.20" |
Package Height (in) | 2.40" |
Manufacturer Part Number | TL8230A1003/U |
Application | Electric baseboards, convectors and fan forced heaters (resistive rated loads). |
Dimensions (in.) | 4 7/8 in. high x 2 3/4 in. wide x 7/8 in. deep |
Dimensions (mm) | 124 mm high x 70 mm wide x 23 mm deep |
Item Type | Product |
Mounting | Vertical |
Electrical Ratings | 15 Amps Max; 3600 Watts at 240 VAC, 3120 Watts at 208 VAC |
Frequency | 50 Hz; 60 Hz |
Stages | 1 Heat |
Approvals, Underwriters Laboratories Inc. | UL Listed 9R12, File Number: E183695 |
Approvals, Canadian Standards Association | cCSAus, File Number: LR76030; Compliant to CAN/CSA-C828-06 |
Electrical Connections | 5.5 in. (140mm) tinned copper lead wires |
Supply Voltage | 208 Vac; 240 Vac |
Sensor Element | Thermistor |
Color | Premier White® |
Ambient Temperature Range (F) | 32 F to 122 F |
Ambient Temperature Range (C) | 0 C to 50 C |
Switching Action | DPST |
Programmability | 7 Day program |
Display Size | 2.67 sq in. |
Setting Temperature Range (F) | 40 F to 86 F |
Setting Temperature Range (C) | 5 C to 30 C |
