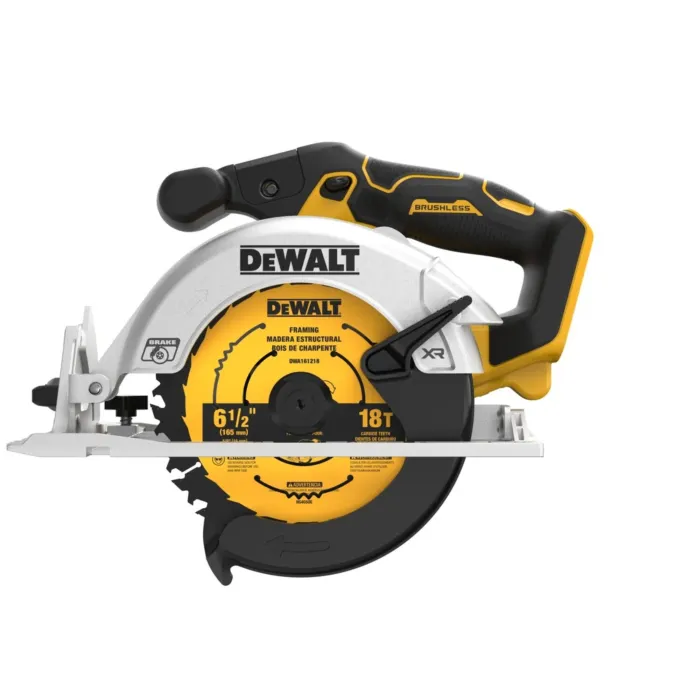

20V MAX* XR 6-1/2 in. Brushless Cordless Circular Saw (Bare Tool)
SKU: DCS565B
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$229.99
Features
Specifications
Combining performance and versatility, the 20V MAX 6-1/2 in. Cordless Circular Saw is ready to take on a variety of cutting applications. It features a powerful brushless motor that delivers 4,950 rpm for fast, accurate, and consistent cutting. Tool-free depth and bevel adjustments provide a max depth of cut of 2-1/8 in. at 90° along with a max bevel of 50°. This saw is equipped with a built-in rafter hook, bright LED, and optional dust chute. Battery and charger sold separately.
- POWERFUL AND EFFICIENT brushless motor provides optimal cutting performance in a variety of materials
- HIGH MANEUVERABILITY with its lightweight and compact design
- QUICKLY ADJUST the bevel capacity from 0 - 50° with the tool-free bevel lever
- CONVENIENT STORAGE on the jobsite with the built-in rafter hook
- ADDED SAFETY: Electric brake quickly stops the blade after the trigger is released
- INCREASED VISIBILITY and cut accuracy with bright LED
- MINIMIZE DUST WHILE CUTTING with the optional dust chute, compatible with the DEWALT AirLock system or standard 35 mm dust extractor
- COMPATIBLE with all DEWALT 20V MAX and FLEXVOLT Batteries
| Brand | DEWALT |
|---|---|
| UPC | 885911671590 |
| Store Location (Lititz, PA) | Aisle 22, Section M3 |
| Package Length (in) | 15.25" |
| Package Width (in) | 9.63" |
| Package Height (in) | 9.63" |
| Manufacturer Part Number | DCS565B |
| Country of Origin | Mexico |
| Length | 15.25 in |
| Width | 9.37 in |
| Height | 8.5 in |
| Weight | 7.85 lbs |
| Power Source | Electric |
| Cordless Vs. Corded | Cordless |
| Motor Type | Brushless |
| Voltage | 20 V V |
| Battery Included | No |
| Battery Type | 20V MAX Lithium Ion |
| Battery Test Summary | DEWALT_UN38.3 LITHIUM TEST SUMMARY_rev1,10.pdf |
| Charger Included | No |
| Battery Required | Yes |
| Number Of Batteries Required | 1 |
| Disclaimer | Maximum initial battery voltage (measured without a workload) is 20 volts. Nominal voltage is 18. |
| Prop 65 Generic Warning | Yes |
| Warranty | 3LW1YS90D |
| Certifications Or Listings | CSA Listed | UL Listed |
| California Prop 65 Warning Label | http://images.salsify.com/image/upload/s--GK8MnSRs--/aq37mya9pqnhhhehoftu.pdf |
| Claims Needed | Yes |
| Adjustable Depth | Yes |
| App Compatibility | No |
| Arbor Size | 0.625 |
| Bare Tool | Yes |
| Bevel Capacity | 50 |
| Blade Diameter | 6 1/2 in In. |
| Blade Location | Left |
| Blade Qty | 1 |
| Bluetooth Compatibility | No |
| Case Type | N/A (no case) |
| Dust Collection | No |
| Engine | Brushless |
| Housing Material | Plastic |
| Individual Vs. Set (Syndigo) | INDIVIDUAL |
| Integrated Laser Guide | No |
| Integrated Work Light | Yes |
| Maximum Cut Depth @ 45 Deg. | 1.625 in |
| Maximum Cut Depth @ 90 Deg. | 2.125 in |
| Maximum Speed | 4950 RPM Rpm |
| Saw Drive Type | Sidewinder |
| Shoe Material | Aluminum |
| Spindle Lock | Yes |
| Variable Speed | Yes |
| Wifi Compatibility | No |
| Works With Android | No |
| Works With Ios | No |
| Product Finish | Yellow/Black/Silver |
