Makita

18V LXT® Brushless Couple Shaft Power Head Kit w/ String Trimmer, Pole Saw, & Articulating Hedge Trimmer Attachments (4.0Ah)

SKU: XUX02SM1X5
Lititz, PA
M-F 6:30am-8:30pm; Sat 6:30am-4:00pm
location-pin All Locations caret-down
Lititz Your Store 5 in stock

Optional Accessories

Navigating through the elements of the carousel is possible using the tab key. You can skip the carousel or go straight to carousel navigation using the skip links.
Makita Couple Shaft 12" Snow Shovel Attachment
Makita
$229.99
SN400MP
Makita Edger Couple Shaft Attachment
Makita
$279.99
EE400MP
Makita Curved String Trimmer Couple Shaft Attachment - 17 in.
Makita
$124.99
ER400MP

Not stocked

Makita 10" Saw Chain, 3/8" LP, .043", 40, Low Kickback
Makita
$22.99
E02434
Makita String Trimmer Couple Shaft Attachment - 17 in.
Makita
$144.99
EM405MP
Makita Cultivator Couple Shaft Attachment
Makita
$369.99
KR401MP
Makita Ground Trimmer Couple Shaft Attachment - 14 in.
Makita
$284.99
EN424MP
Makita Bump & Feed Trimmer Head, M10 X 1.25 LH
Makita
$27.99
T01753A
Features chevron-down chevron-up
With zero emissions, lower noise, and maximum versatility, the 18V LXT® Couple Shaft Power Head Kit with String Trimmer, Pole Saw, and Articulating Hedge Trimmer Attachments (4.0Ah) (XUX02SM1X5) is a welcome solution for a range of trimming and cutting applications. It’s powered by one Makita 18V LXT® Battery for performance and run time without the hassles of gas and without leaving the 18V LXT® battery platform. The Power Head features a lever-style lock system for quick tool-less installation and replacement of attachments. The XUX02SM1X5 kit includes the 13" String Trimmer Couple Shaft Attachment (EM409MP) featuring the rapid loading bump and feed trimmer head that loads line in seconds with three easy steps: align, feed and twist, the 10" Pole Saw Couple Shaft Attachment (EY402MP), which provides a seven foot fixed length for trimming hard to reach branches, and the 20" Articulating Hedge Trimmer Couple Shaft Attachment (EN402MP) that features 13 angle settings with 135° of working range for efficient trimming of overhead and low-lying hedges. The kit also features one 18V LXT® Lithium-Ion 4.0Ah Battery (BL1840B), and one 18V LXT® Lithium-Ion Charger (DC18SD). The Makita-built brushless motor delivers up to 9,700 RPM. The motor is electronically controlled to optimize battery energy use for up to 50% longer run time per battery charge than similar non-brushless tools. The brushless motor runs cooler and more efficiently for longer life and electronic controls efficiently use battery energy to match the changing demands of the application for increased power and speed when needed. It features Makita Extreme Protection Technology (XPT™). XPT™ is a protective seal inside the tool. It is designed to improve a tool’s operation in harsh conditions by channeling water and dust from key internal components. It’s part of Makita’s expanding 18V LXT® System, the world’s largest cordless tool system powered by 18V lithium-ion slide-style batteries. Makita® 18V LXT® Lithium-Ion Batteries have the fastest charge times in their categories, so they spend more time working and less time sitting on the charger. For improved tool performance and extended battery life, Makita created Star Protection Computer Controls™. Star Protection is communication technology that allows the Star Protection-equipped tool and battery to exchange data in real time and monitor conditions during use to protect against overloading, over-discharging and overheating. For increased versatility, the tool can also be powered by Makita® 18V LXT® Lithium-Ion Batteries with the star symbol on the battery indicating Star Protection inside.

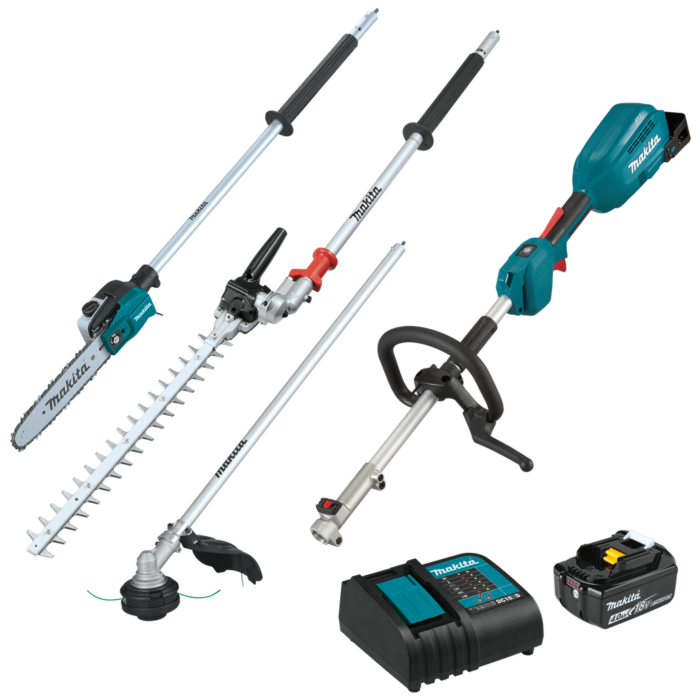

Includes: Power head, 13" string trimmer attachment, 10" pole saw attachment, 20" articulating hedge trimmer attachment, 18V LXT® 4.0Ah battery and charger

  • Lever style lock system allows for quick tool-less installation and replacement of attachments
  • 20" Articulating Hedge Trimmer Attachment with 135° working range for overhead and low-lying hedges
  • Compatible with a variety of Makita couple shaft attachments (sold separately)
  • Variable speed trigger for controlled cutting speed
  • Equipped with Star Protection Computer Controls™ to protect against overloading, over-discharging and over-heating
  • 3 easy steps to load line into bump and feed trimmer head: align, feed, and twist
  • 20" Articulating Hedge Trimmer Attachment features 13 angle settings with 135° working range for efficient trimming of overhead and low-lying hedges
  • 10" Pole Saw Attachment provides 7 foot fixed length for trimming hard to reach branches
  • Only use genuine Makita batteries and chargers
  • Features Extreme Protection Technology (XPT™) which is engineered to provide increased dust and water resistance in harsh job site conditions
  • No gas, emissions, oil mixing, or pull starts
  • 20" Articulating Hedge Trimmer Attachment with dual action, double-sided steel blades for faster cutting
  • High/Low speed button for power and run time management
  • 13" String Trimmer Attachment includes rapid loading bump and feed trimmer head that loads line in seconds with 3 easy steps: align, feed and twist
  • 3-year limited warranty on tool, battery and charger
Specifications chevron-down chevron-up
Brand Makita
UPC 197050003508
Store Location (Lititz, PA) Aisle 24, Section N7
Package Length (in) 14.00"
Package Width (in) 14.00"
Package Height (in) 40.00"
Manufacturer Part Number XUX02SM1X5
Country of Origin China
Guide Bar Length 10"
Motor Type Brushless
Arbor Shaft M10 x 1.25 LH
Blade Configuration Double sided
UPC Code 197050-003508
Blade Length 20"
Tooth Spacing 1-3/16"
Shaft Type Multi-tool attachment
No Load Speed (var. 2 spd) 5,000 / 7,000 RPM
Cutting Swath 13"
Strokes Per Minute 4,000 SPM
Form Factor 18V LXT®
Chain Speed 3,940 FPM
Warning WARNING: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
