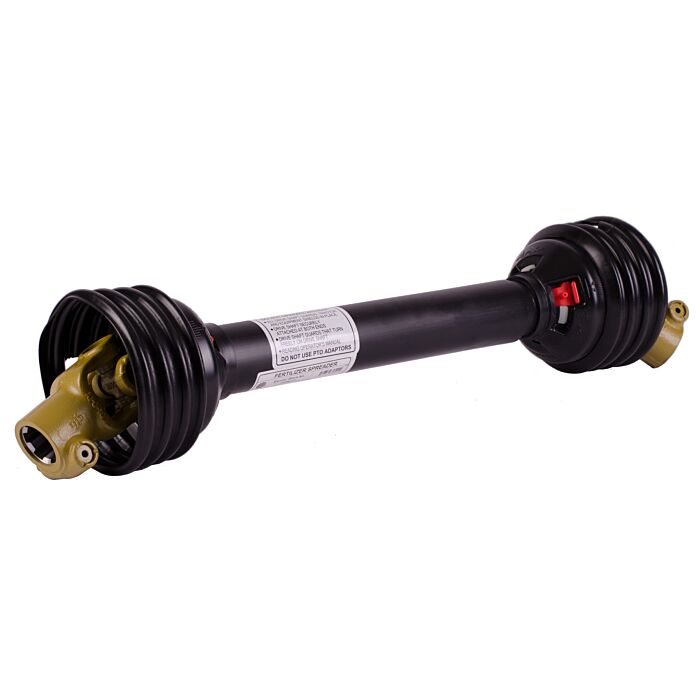

The Weasler high performance PTO drive shafts are the foremost drive shaft solution in the agriculture and lawn & turf industries . Weasler PTO driveshafts are complete assemblies from tractor to implement. They are designed for continuous heavy-duty all purpose use and meet the requirements of large farms and contractors. The metric product line offering of PTO drive shafts, Weasler Profile, meets and/or exceeds the quality of products currently offered by our competitors within a multitude of industries.
- Design adjustability (cut-to-length) capabilities.
- Interchangeability to fit with most competitor models.
- Tri-lobe, lemon, and star shaft profiles available.
- Easy lock guard construction allows quick and easy assembly or removal with a simple tool such as a key, coin or screwdriver.
- Available Extended lubrication E-kits reduce downtime with lubrication intervals of 50-250 hours and the high temperature triple lip seal retains grease better.
- Customer dedicated engineering and sales support.
- Easy Lock Guard System: Provides full coverage at maximum angles, Full 360° friction weld on guard bell, Black coloring that is durable against ultraviolet light and ozone, Cold weather impact rated to -35°C, Meets and exceeds all applicable safety standards, Quick and easy process for removal and installation.
- Yokes: Interchangeable with all other Weasler yokes and standard yokes available in the market, Cast iron collars,Through-Bore keeps debris from collecting inside.
- Cross & Bearing Kits: High torque capacity and longer life, Manufactured with high quality steel for increased strength, Standard kits can be upgraded to or interchanged with E-Kits.
- Same component designs used for Weasler's domestic and metric product lines.
Brand | Weasler |
---|---|
UPC | 728357305004 |
Store Location (Lititz, PA) | Aisle 07, Section X5 |
Package Length (in) | 6.00" |
Package Width (in) | 31.00" |
Package Height (in) | 6.00" |
Manufacturer Part Number | 14006127 |
Length | 34.086 inch |
Height | 6 inch |
Width | 6 inch |
Weight | 11.4 lb |
Series | AB1 |
Outside Diameter | 6" |
Bore 1 | 1.375" |
Bore 1 Description | 1 3/8-6 SPLINE |
Connection 1 Description | QUICK DISCONNECT |
Bore 2 | 1.375" |
Bore 2 Description | 1 3/8-6 SPLINE |
Connection 2 Description | QUICK DISCONNECT |
Compressed Length | 27" |
Extended Length | 30" |
Compressed Oal | 34.086" |
Extended Oal | 37.086" |
Bearing Diameter | 0.866" |
Bearing Span | 2.122" |
Application | FERTILIZER SPREADER |
Horsepower at 540 RPM | 15 hp |
Horsepower at 1000 RPM | 23 hp |
