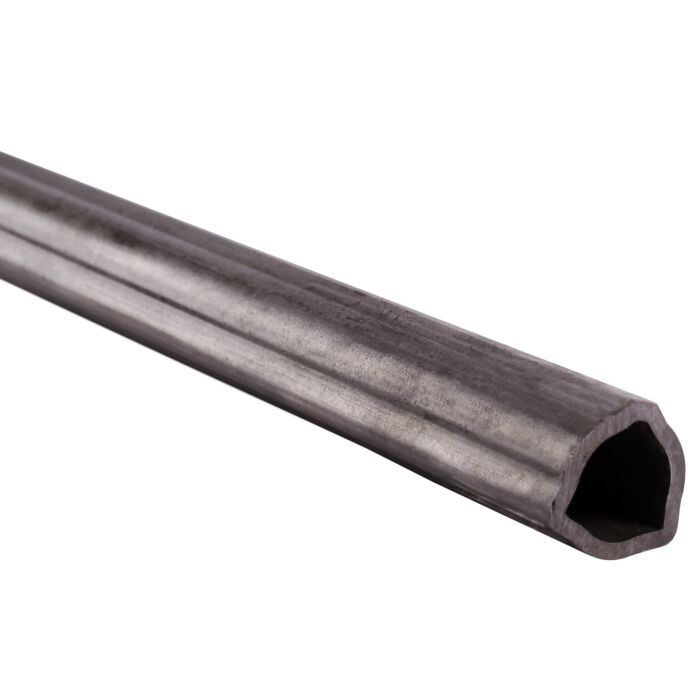

AB4 series trilobe profile tube, clearance for uncoated tube
SKU: 4006436 | Location: Aisle 05, Section W1
$87.99
PICKUP
Your store: PaulB Lititz, PA |
DELIVERY
Ship to your home or business
2 In stock
Features
Specifications
Tubes serve as a metal cylindrical encasement for a shaft within a given PTO drive shaft, and provides supplemental reinfocement to the drive shaft. Tubing is available in both domestic (North American) and metric profile shapes. Domestic tubing is provided as square, rectangle, or round. The Weasler Profile product line includes metric and tubing available in both German and Italian styling: German style provided as lemon or star in shape and Italian as trilobed in shape.
| Brand | Weasler |
|---|---|
| UPC | 728357300481 |
| Store Location (Lititz, PA) | Aisle 05, Section W1 |
| Package Length (in) | 59.25" |
| Package Width (in) | 1.38" |
| Package Height (in) | 1.50" |
| Manufacturer Part Number | 400-6436 |
| Length | 59.05 inch |
| Height | 1.417 inch |
| Width | 1.33 inch |
| Weight | 10.5 lb |
| Series | AB4 |
| Outside Diameter | 1.417" |
| Bore | 1.102" |
| Bore Description | CLEARANCE FOR UNCOATED TUBE |
| Connection 1 Description | ROLL PIN |
| Connection 2 Description | TRILOBE PROFILE TUBE |
| Bearing Diameter | 1.063" |
| Bearing Span | 2.933" |
| Horsepower at 540 RPM | 46 hp |
| Horsepower at 1000 RPM | 85 hp |
