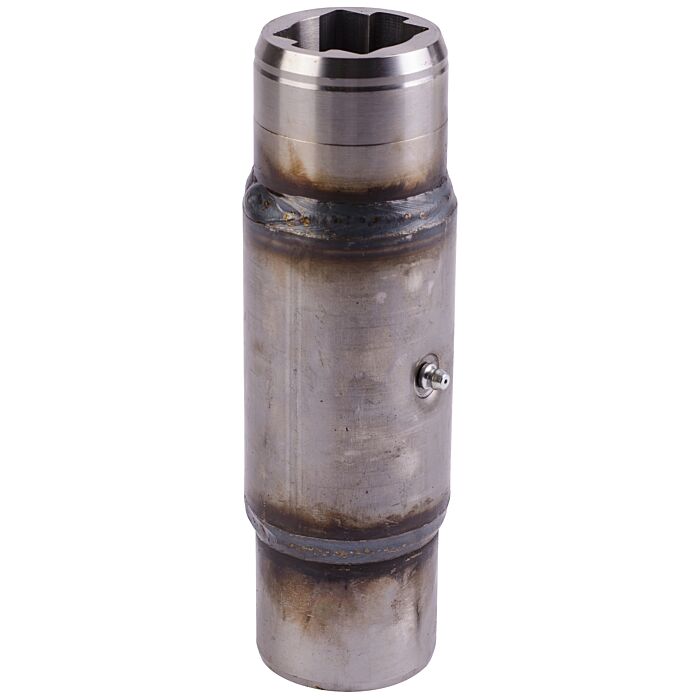

35, 44, & 55 Series Slip Sleeve, for 1-5/16" Square Shaft
SKU: 5043500
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$127.70
Features
Specifications
Slip sleeves provide a strong connection between the inner and outer shaft. Heavy construction gives superior strength, while the grease zerk allows for easy greasing to reduce friction and wear on telescoping shaft.
- Series: 35, 44, & 56
- Inner Diameter: 1-5/16"
- Outer Diameter: 2-1/2" Tubing
- Length: 8"
| Brand | Weasler |
|---|---|
| UPC | 728357108667 |
| Store Location (Lititz, PA) | Aisle 08, Section W2 |
| Package Length (in) | 7.20" |
| Package Width (in) | 1.40" |
| Package Height (in) | 2.20" |
| Manufacturer Part Number | 504-3500 |
| Length | 8 inch |
| Weight | 3.9 lb |
| Series | 35 |
| Outside Diameter | 2.5" |
| Bore | 1.3125" |
| Bore Description | 1 5/16 SQUARE |
| Connection 1 Description | TELESCOPING |
| Connection 2 Description | WELD |
| Bearing Diameter | 1.252" |
| Bearing Span | 3.209" |
| Horsepower at 540 RPM | 70 hp |
| Horsepower at 1000 RPM | 130 hp |
