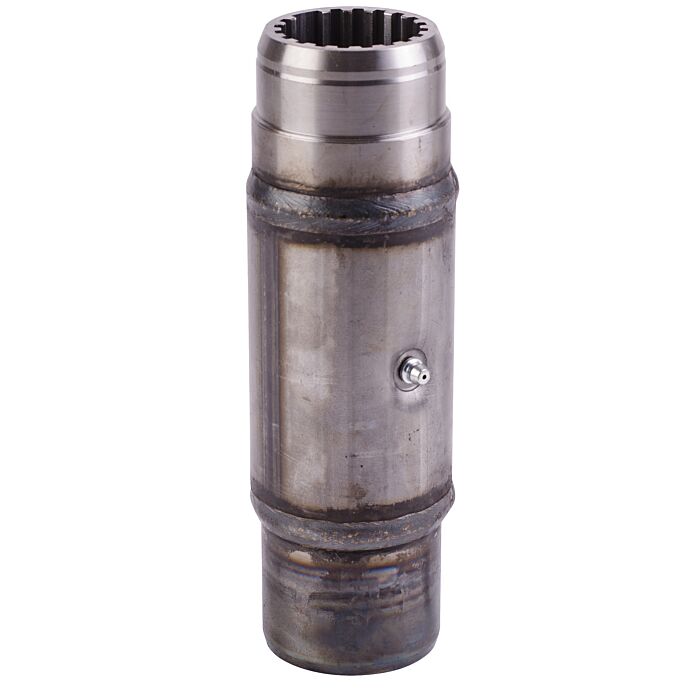

12 & 14 Series Slip Sleeve, for 1-5/16" - 20 Spline Shaft
SKU: 5011400
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$118.45
Features
Specifications
Slip sleeves provide a strong connection between the inner and outer shaft. Heavy construction gives superior strength, while the grease zerk allows for easy greasing to reduce friction and wear on telescoping shaft.
- Series: 12 & 14
- Inner Diameter: 1-5/16" 20 spline
- Outer Diameter: 2" Tubing
- Length: 8"
| Brand | Weasler |
|---|---|
| UPC | 728357100814 |
| Store Location (Lititz, PA) | Aisle 08, Section W1 |
| Package Length (in) | 7.60" |
| Package Width (in) | 1.60" |
| Package Height (in) | 1.80" |
| Manufacturer Part Number | 501-1400 |
| Length | 8 inch |
| Weight | 3.04 lb |
| Series | 14 |
| Outside Diameter | 2.125" |
| Bore | 1.378" |
| Bore Description | 1 5/16-20 SPLINE |
| Connection 1 Description | TELESCOPING |
| Connection 2 Description | WELD |
| Bearing Diameter | 1.126" |
| Bearing Span | 2.622" |
| Horsepower at 540 RPM | 38 hp |
| Horsepower at 1000 RPM | 70 hp |
